MSI GeForce 8800 GTS 320

Published: (last update )

GPU
GPU type G80
Manufacturing process90 nm
Transistors681 milion
Die size484 mm2
ROPs20
TMUs24
Pixel shaders-
Vertex shaders-
Unified shaders96
Clock513 MHz
Pixel fillrate10260 MP/s
Texel fillrate12312 MT/s
SP gigaflops346
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.1.1 / 1.0
Memory
Capacity320 MB
TypeGDDR3
Clock1600 MHz
Bus width320 bit
Bandwith64000 MB/s
Rated speed-
BrandHynix
The card
ManufacturerMSI
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP143 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev5206
Release date2007

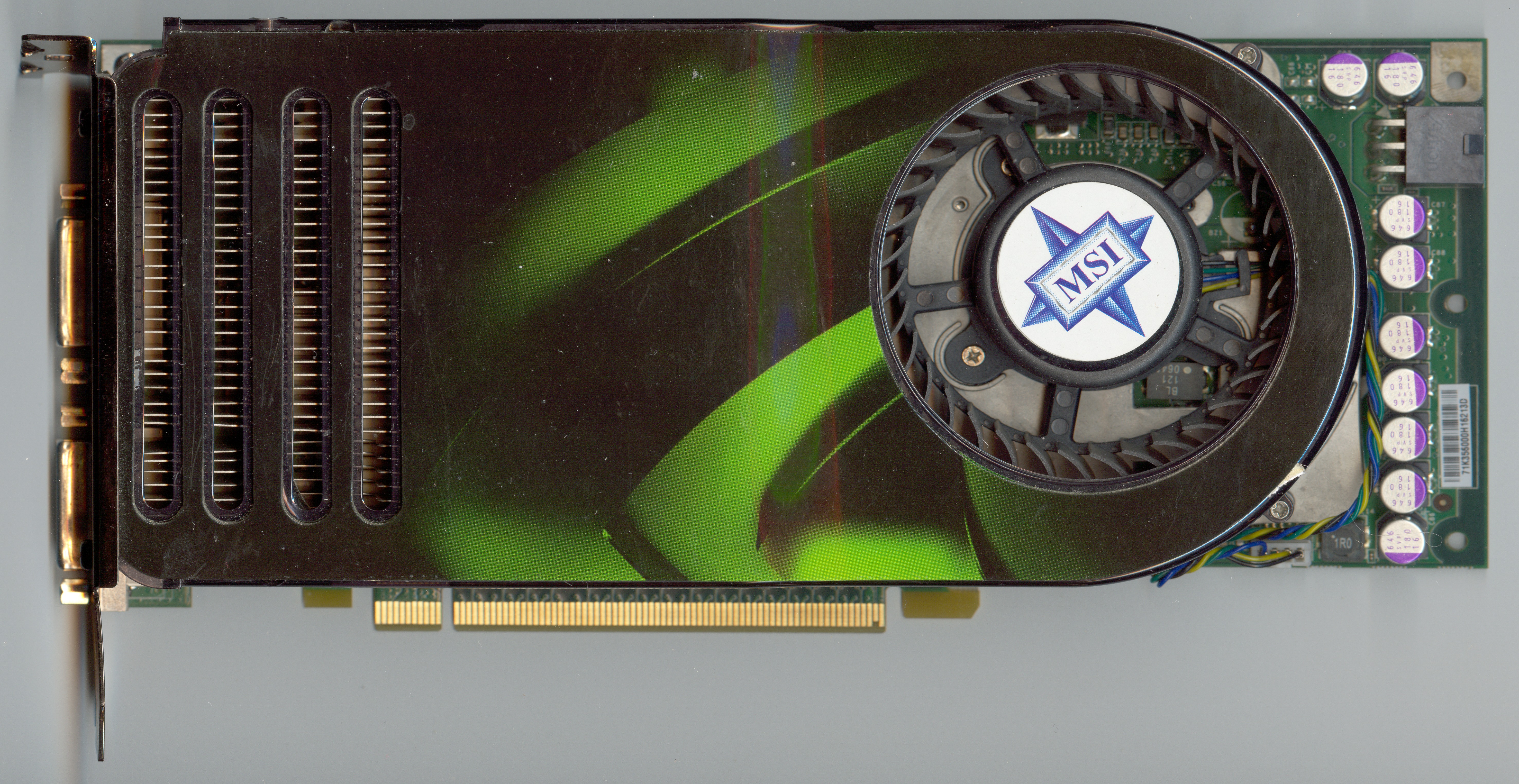

MSI GeForce 8800 GTS 320 (front side)

MSI GeForce 8800 GTS 320 (front side)

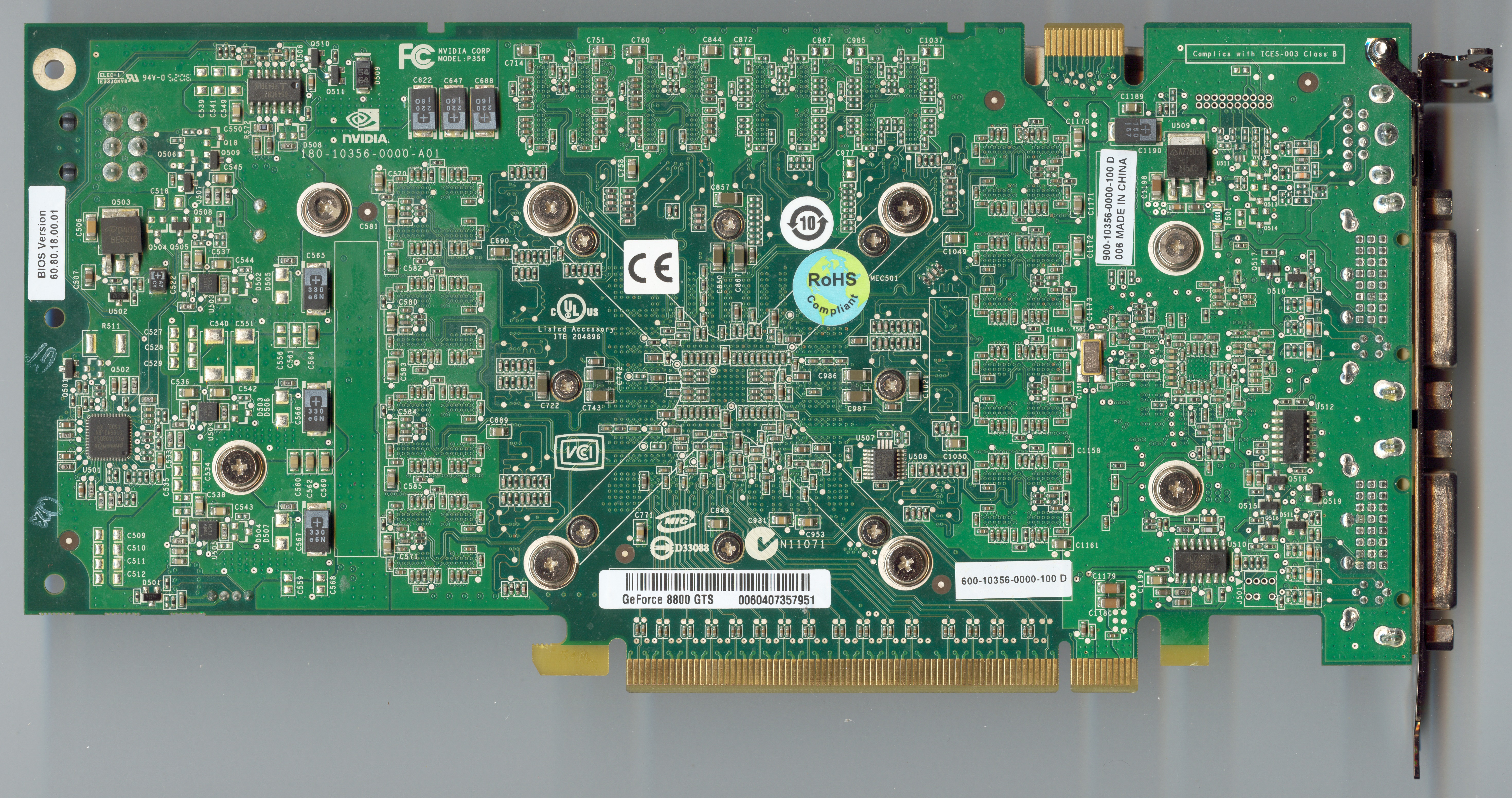

MSI GeForce 8800 GTS 320 (back side)

MSI GeForce 8800 GTS 320 (back side)
