Leadtek GeForce 6800 GT PCI-E

Published: (last update )

GPU
GPU type NV45
Manufacturing process130 nm
Transistors222 milion
Die size287 mm2
ROPs16
TMUs16
Pixel shaders16
Vertex shaders6
Unified shaders-
Clock350 MHz
Pixel fillrate5600 MP/s
Texel fillrate5600 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1000 MHz
Bus width256 bit
Bandwith32000 MB/s
Rated speed-
Brand-
The card
ManufacturerLeadtek
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP65 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev
Release date2004
Leadtek GeForce 6800 GT PCI-E (front side)

Leadtek GeForce 6800 GT PCI-E (front side)

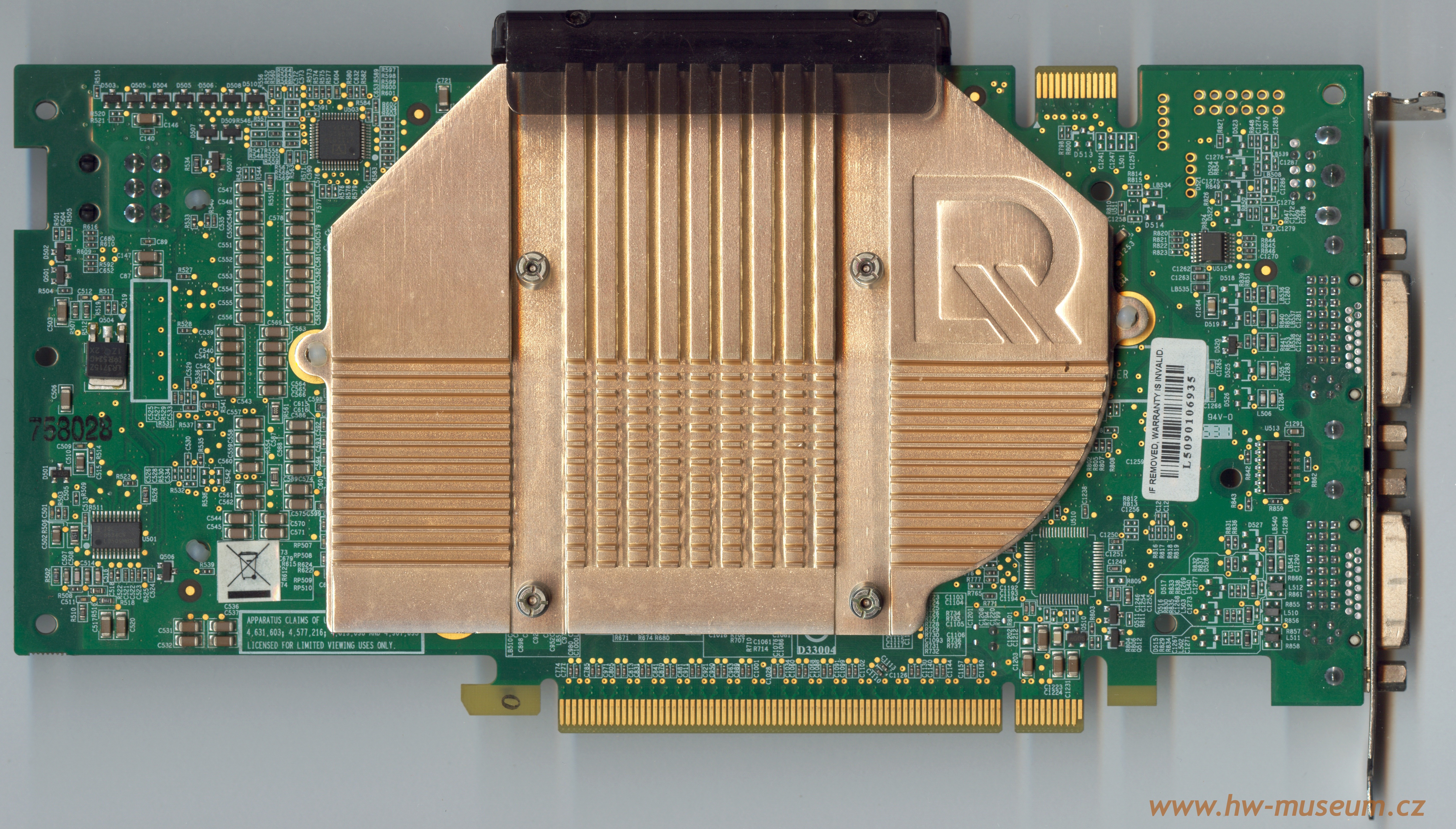

Leadtek GeForce 6800 GT PCI-E (back side)

Leadtek GeForce 6800 GT PCI-E (back side)
