MSI GeForce 6800 Ultra PCI-E

Published: (last update )

GPU
GPU type NV45
Manufacturing process130 nm
Transistors222 million
Die size287 mm2
Density0.77 M / mm2
ROPs16
TMUs16
Pixel shaders16
Vertex shaders6
Unified shaders-
Clock425 MHz
Pixel fillrate6 800 MP/s
Texel fillrate6 800 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 100 MHz
Bus width256 bit
Bandwith35 200 MB/s
Rated speed-
Brand-
The card
ManufacturerMSI
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP81 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2004

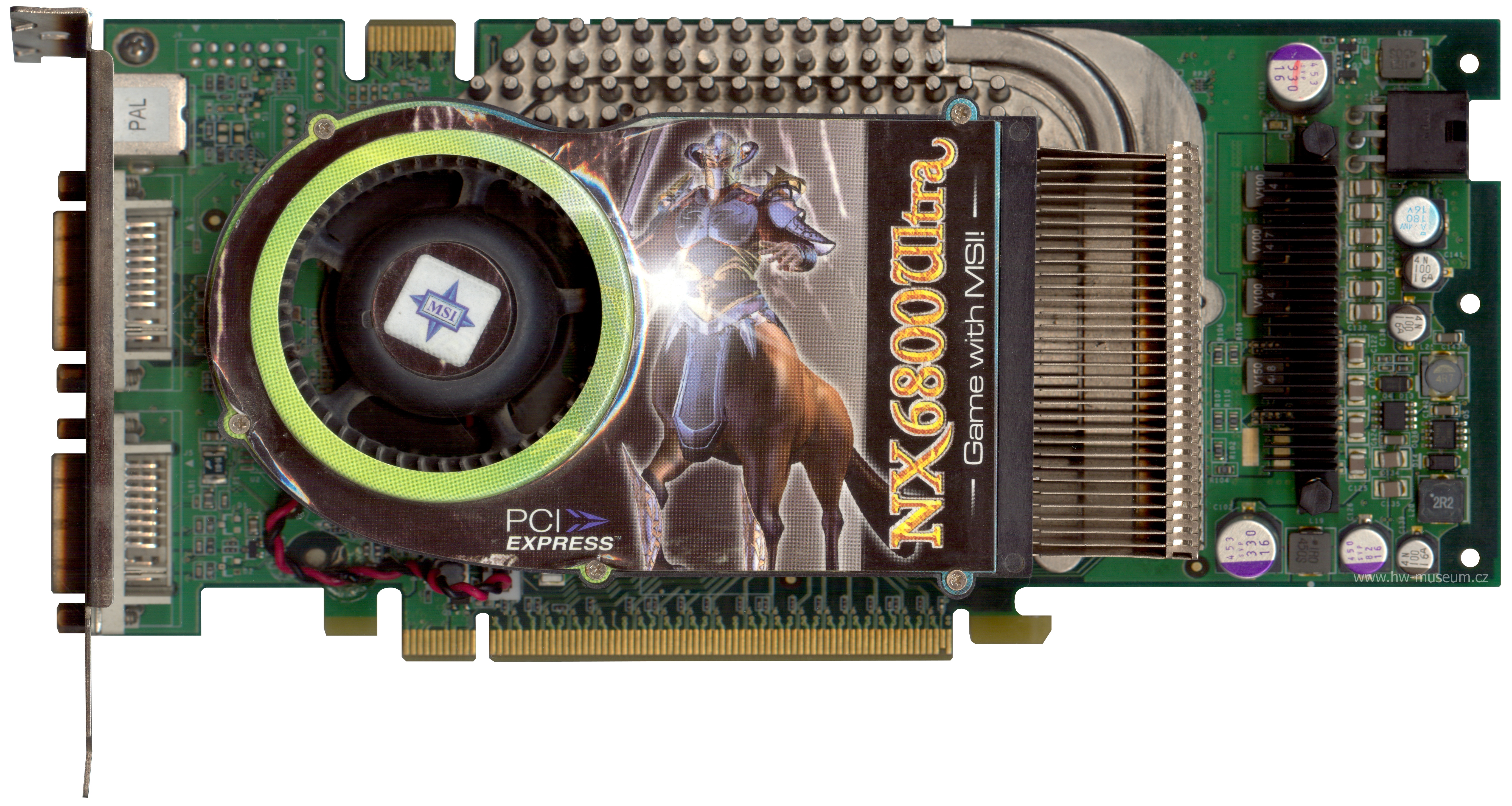

MSI GeForce 6800 Ultra PCI-E (front side)

MSI GeForce 6800 Ultra PCI-E (front side)

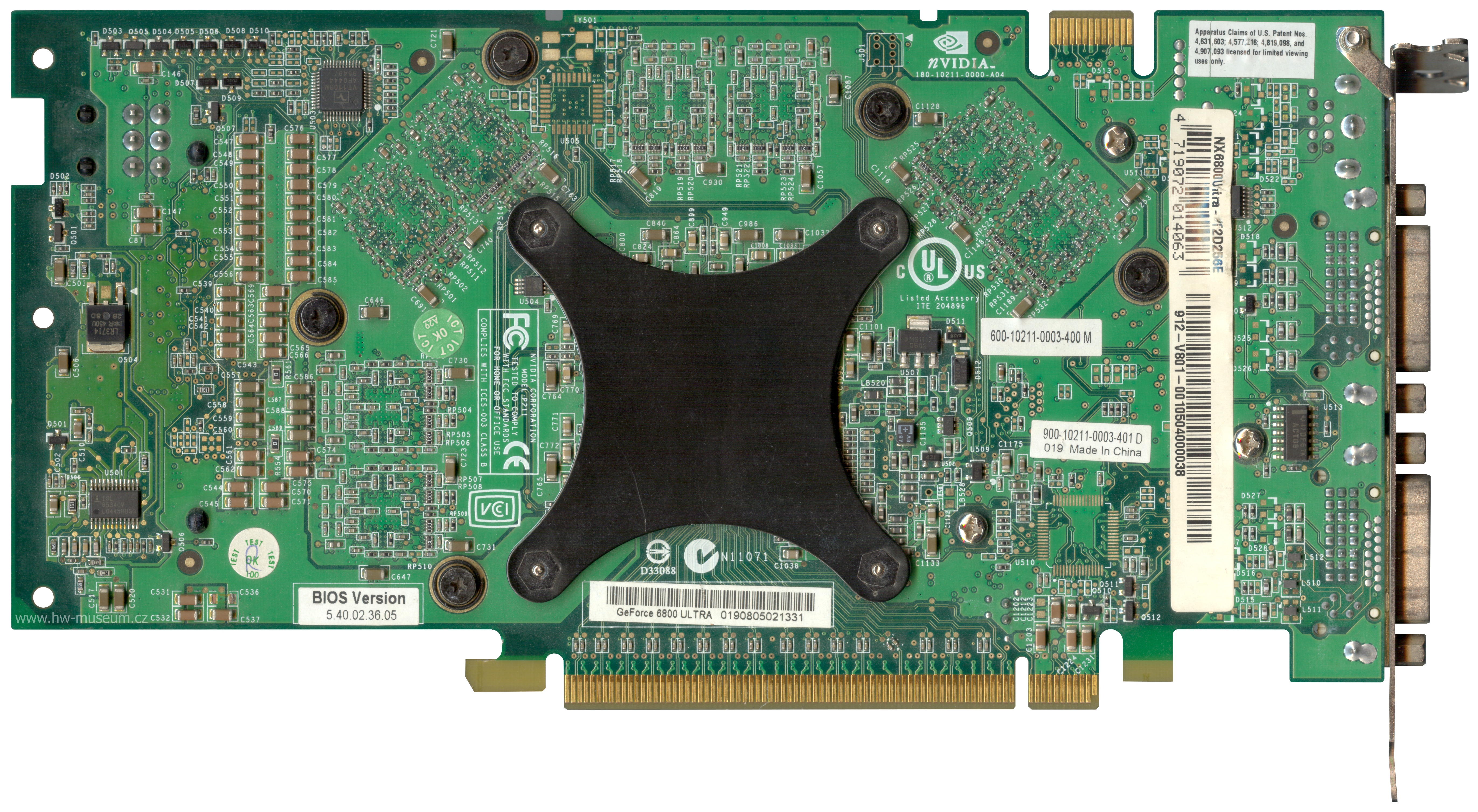

MSI GeForce 6800 Ultra PCI-E (back side)

MSI GeForce 6800 Ultra PCI-E (back side)
