MSI GeForce 6600 DDR2

Published: (last update )

GPU
GPU type NV43
Manufacturing process110 nm
Transistors143 milion
Die size150 mm2
ROPs4
TMUs8
Pixel shaders8
Vertex shaders3
Unified shaders-
Clock350 MHz
Pixel fillrate1400 MP/s
Texel fillrate2800 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeDDR2
Clock800 MHz
Bus width128 bit
Bandwith12800 MB/s
Rated speed-
Brand-
The card
ManufacturerMSI
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP45 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev4905
Release date2004

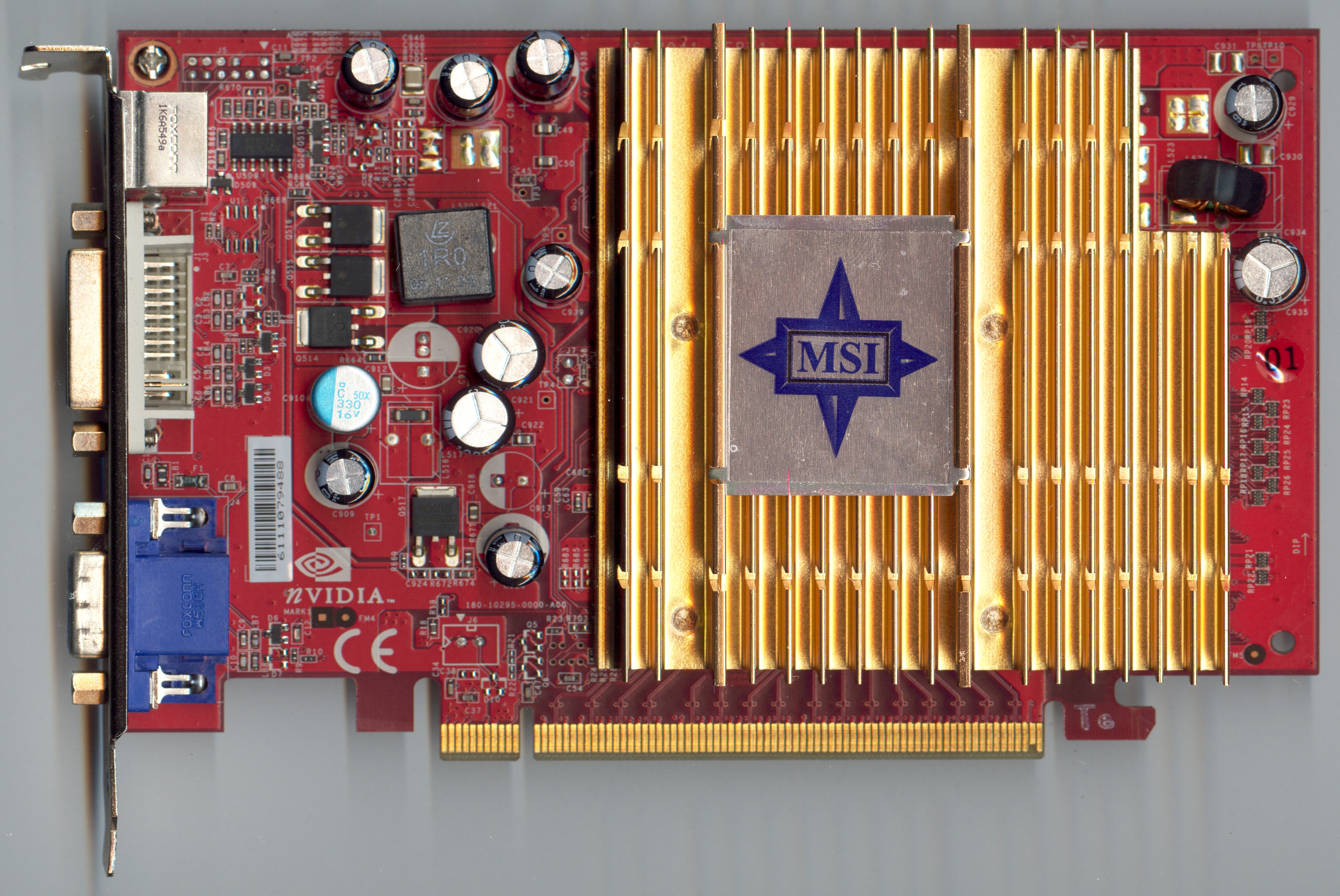

MSI GeForce 6600 DDR2 (front side)

MSI GeForce 6600 DDR2 (front side)

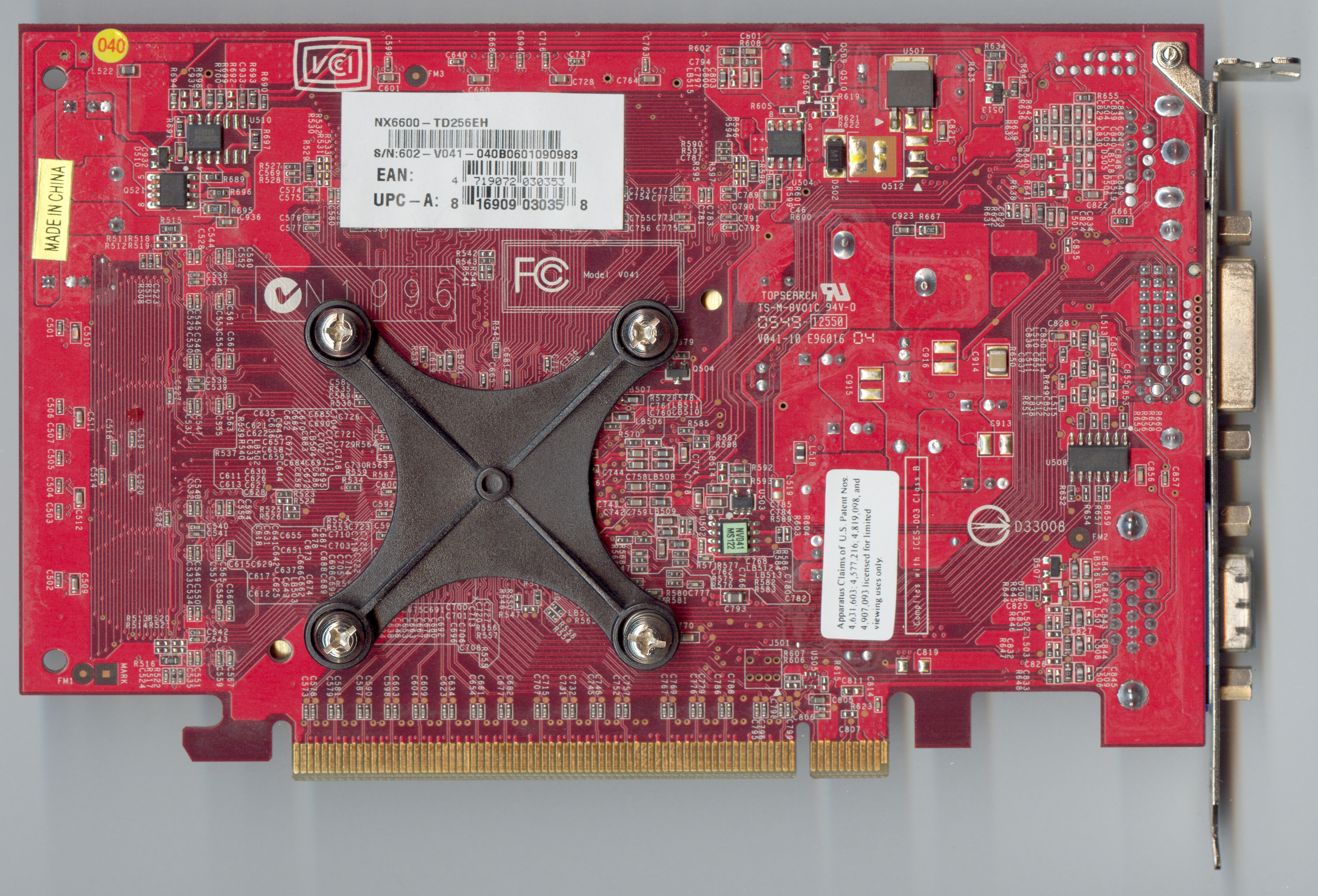

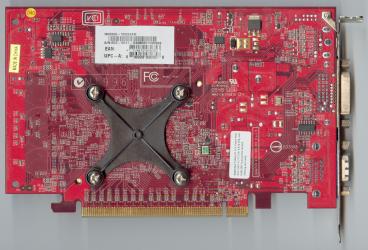

MSI GeForce 6600 DDR2 (back side)

MSI GeForce 6600 DDR2 (back side)
