Sapphire Radeon HD 2600 XT GDDR4

Published: (last update )

GPU
GPU type RV630
Manufacturing process65 nm
Transistors390 milion
Die size153 mm2
ROPs4
TMUs8
Pixel shaders-
Vertex shaders-
Unified shaders120
Clock800 MHz
Pixel fillrate3200 MP/s
Texel fillrate6400 MT/s
SP gigaflops192
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR4
Clock2200 MHz
Bus width128 bit
Bandwith35200 MB/s
Rated speed2500 MHz
BrandSamsung
The card
ManufacturerSapphire
InterfacePCI-E 2.0 x16
Interface bandwith8192 MB/s
TDP50 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev1607
Release date2007

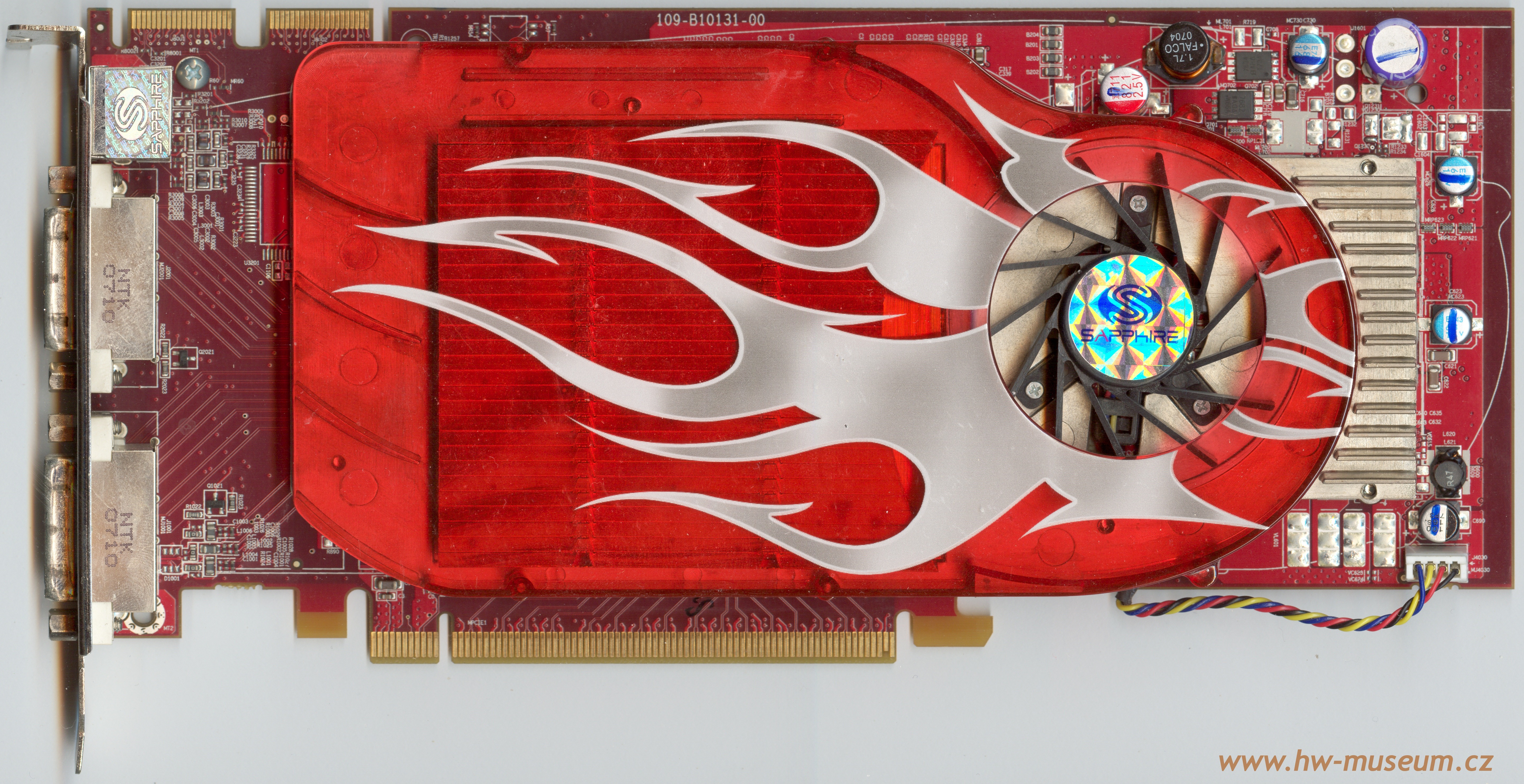

Sapphire Radeon HD 2600 XT GDDR4 (front side)

Sapphire Radeon HD 2600 XT GDDR4 (front side)

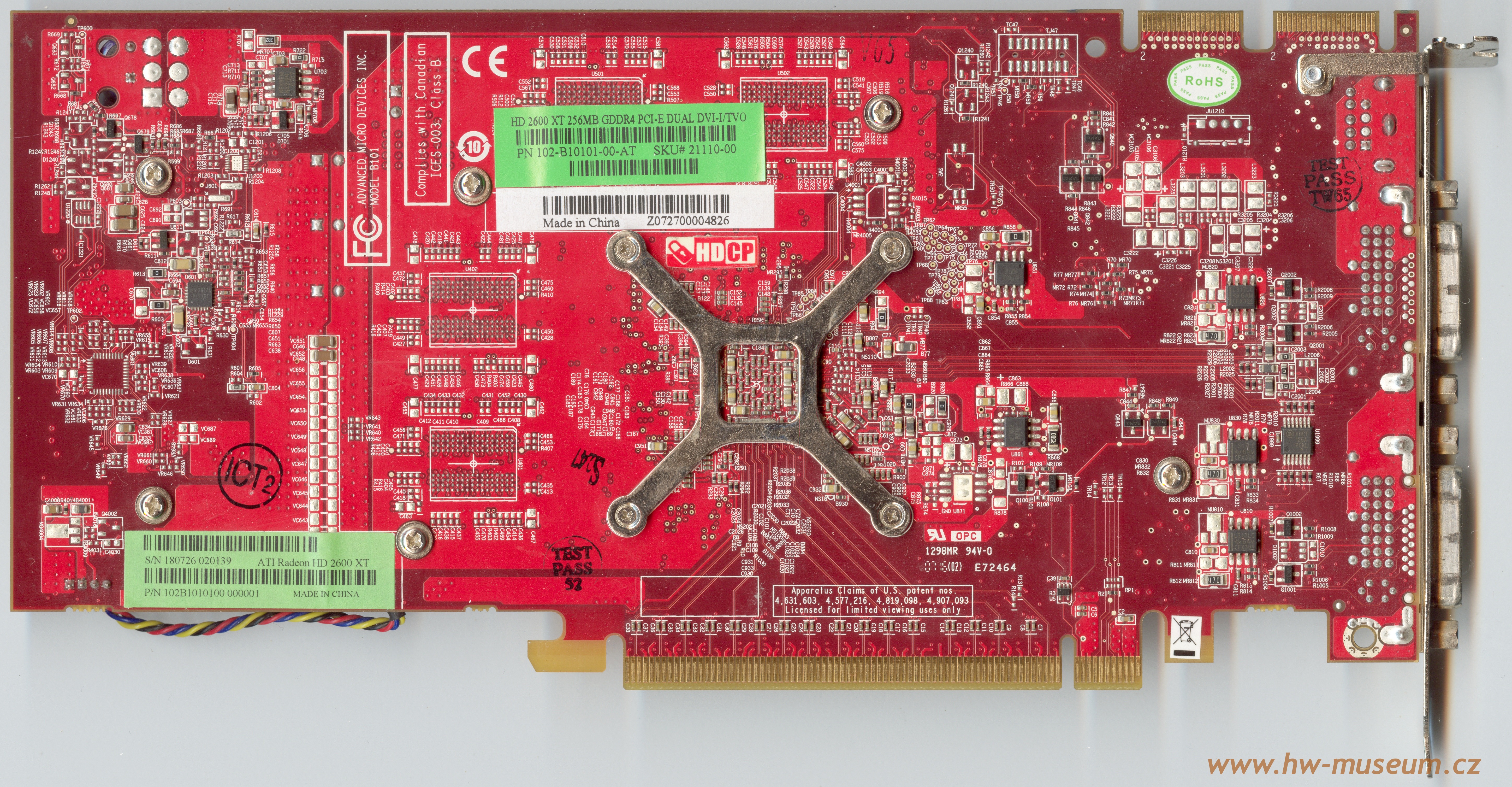

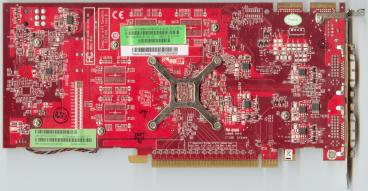

Sapphire Radeon HD 2600 XT GDDR4 (back side)

Sapphire Radeon HD 2600 XT GDDR4 (back side)

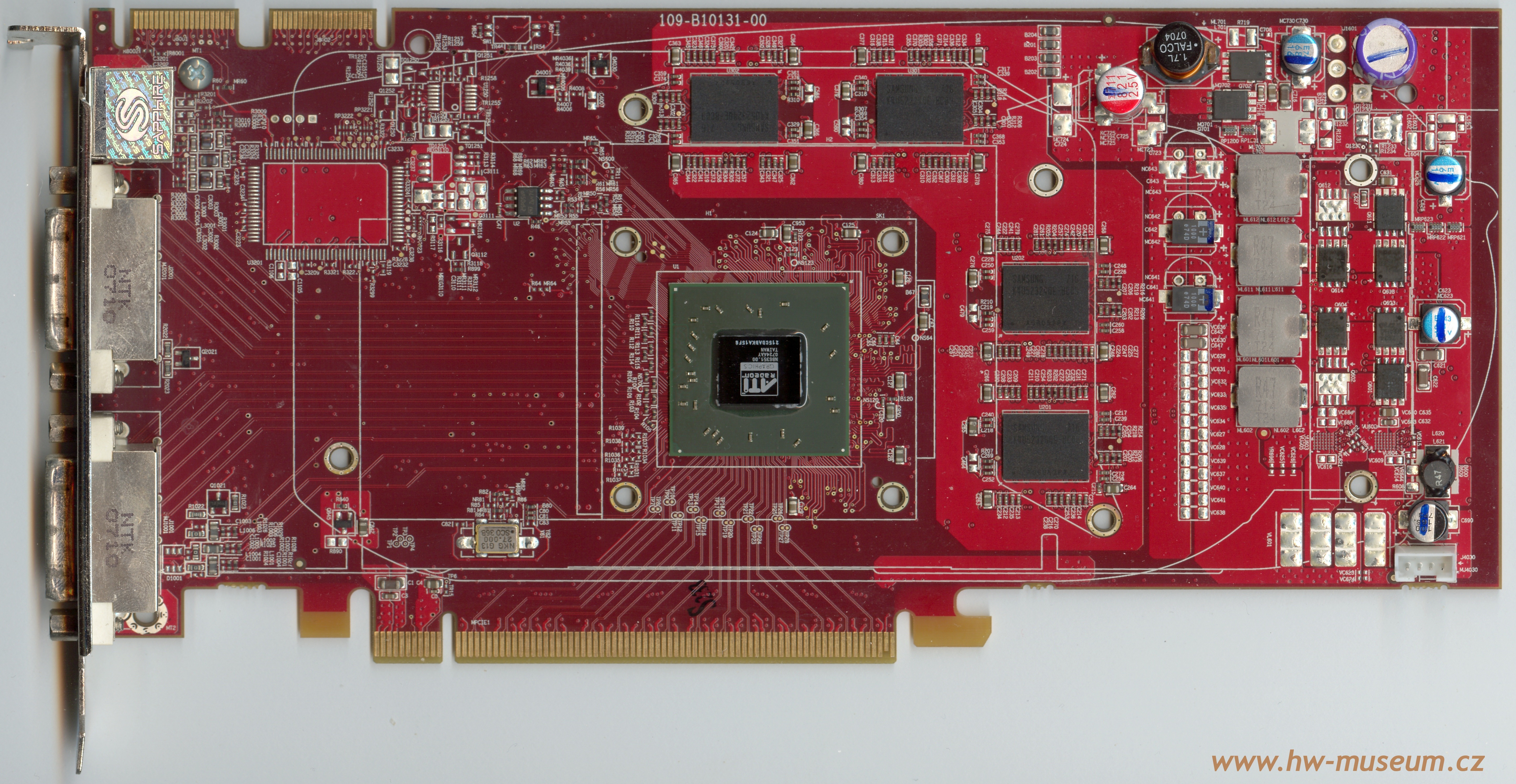

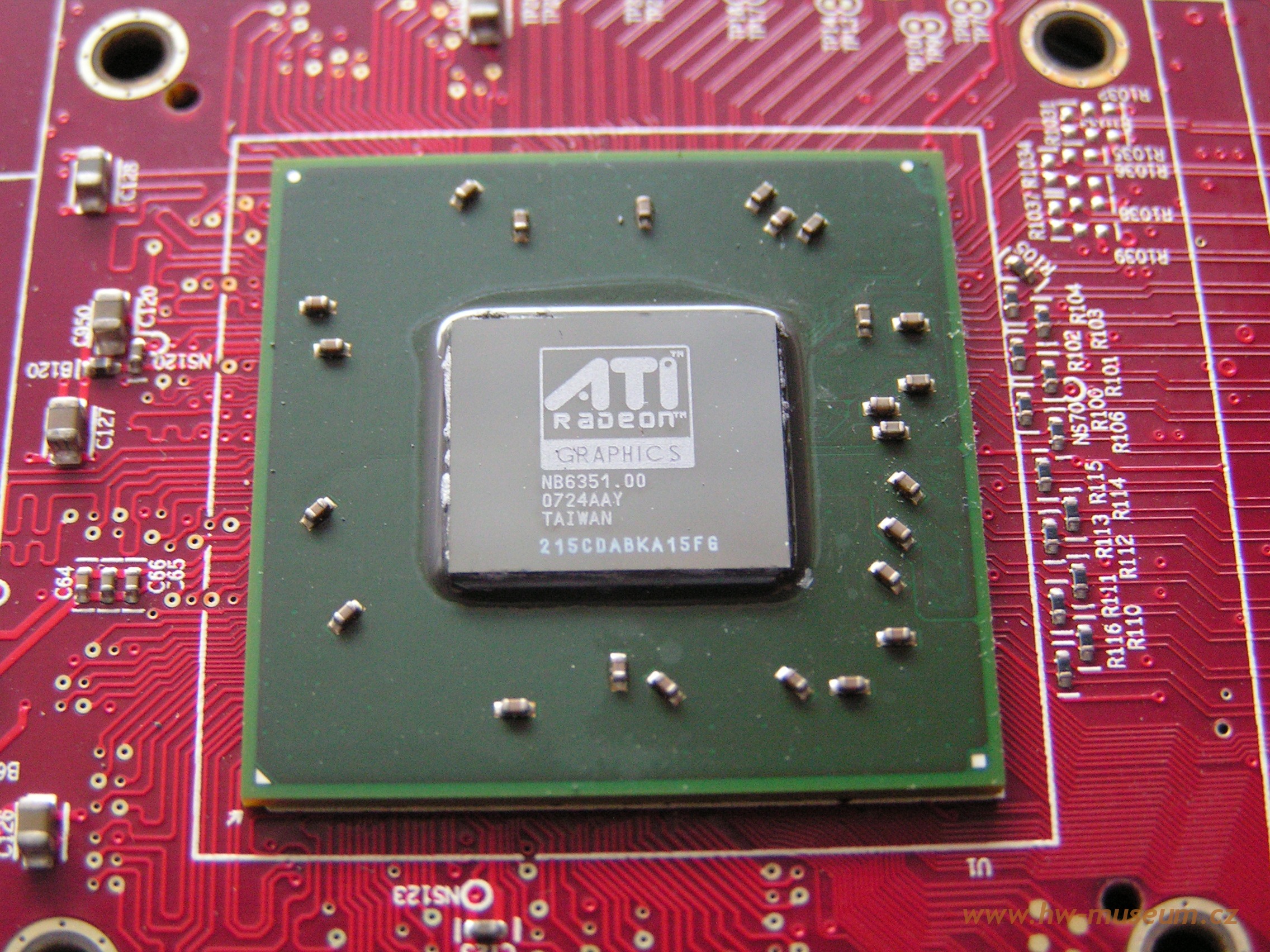

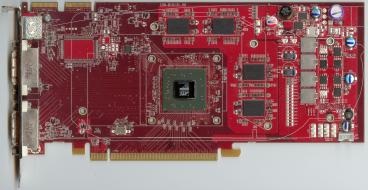

Sapphire Radeon HD 2600 XT GDDR4 gallery
Sapphire Radeon HD 2600 XT GDDR4 gallery
Sapphire Radeon HD 2600 XT GDDR4 gallery
Sapphire Radeon HD 2600 XT GDDR4 gallery
