ATi Radeon HD 3850 256 MB

Published: (last update )

GPU
GPU type RV670
Manufacturing process55 nm
Transistors666 million
Die size192 mm2
Density3.47 M / mm2
ROPs16
TMUs16
Pixel shaders-
Vertex shaders-
Unified shaders320
Clock670 MHz
Pixel fillrate10 720 MP/s
Texel fillrate10 720 MT/s
SP gigaflops428
DP gigaflops85
DirectX10.1
OpenGL3.3
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 660 MHz
Bus width256 bit
Bandwith53 120 MB/s
Rated speed1 800 MHz
BrandSamsung
The card
ManufacturerATi
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP75 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date39th week of 2007
Release date2007
ATi Radeon HD 3850 256 MB (front side)

ATi Radeon HD 3850 256 MB (front side)

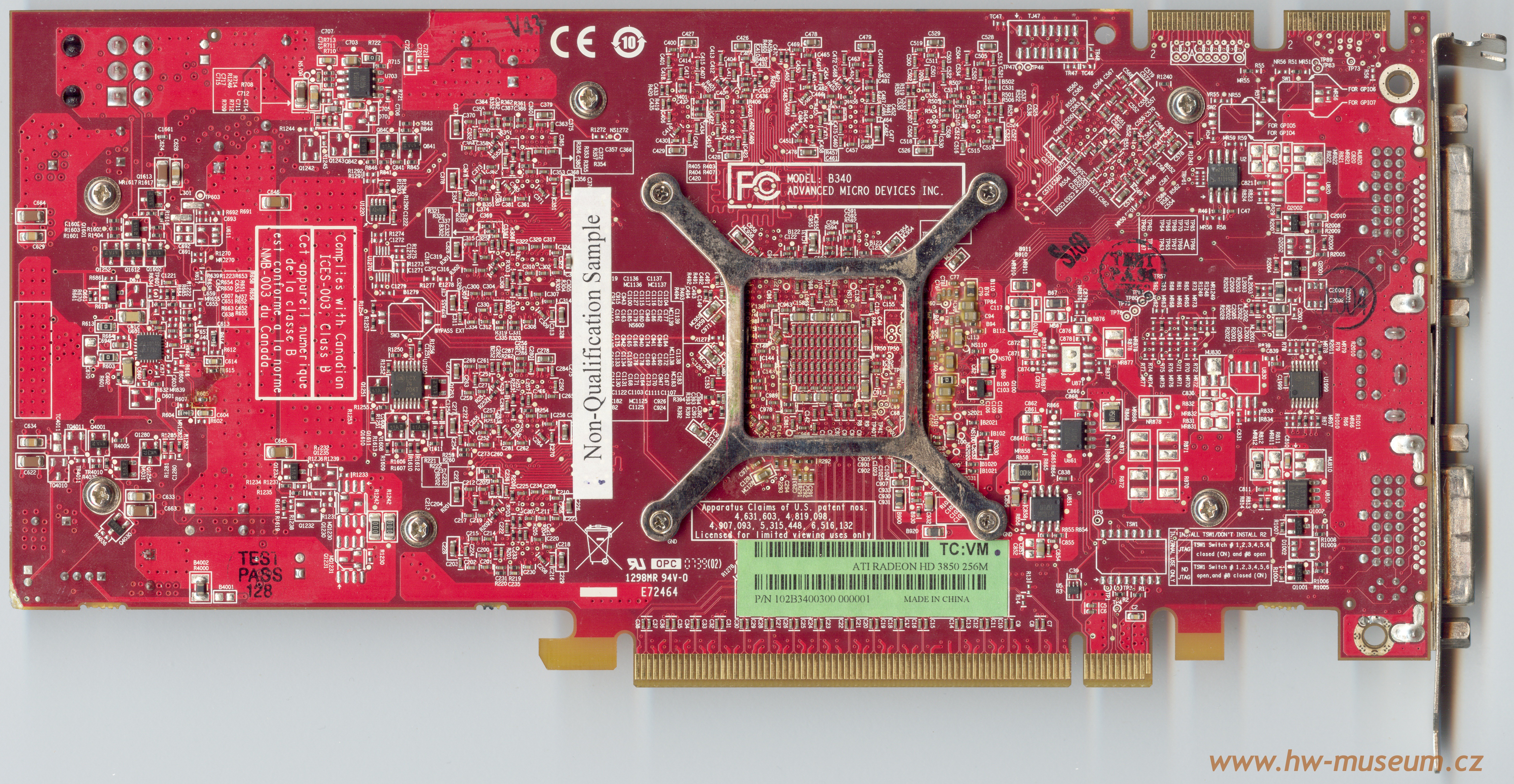

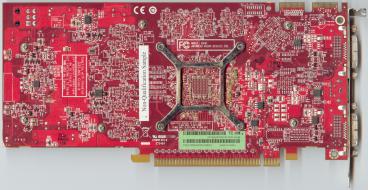

ATi Radeon HD 3850 256 MB (back side)

ATi Radeon HD 3850 256 MB (back side)

ATi Radeon HD 3850 256 MB gallery
ATi Radeon HD 3850 256 MB gallery
