Gigabyte Radeon HD 2600 XT GDDR3

Published: (last update )

GPU
GPU type RV630
Manufacturing process65 nm
Transistors390 million
Die size153 mm2
Density2.55 M / mm2
ROPs4
TMUs8
Pixel shaders-
Vertex shaders-
Unified shaders120
Clock800 MHz
Pixel fillrate3 200 MP/s
Texel fillrate6 400 MT/s
SP gigaflops192
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 400 MHz
Bus width128 bit
Bandwith22 400 MB/s
Rated speed-
Brand-
The card
ManufacturerGigabyte
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP45 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date23rd week of 2007
Release date2007

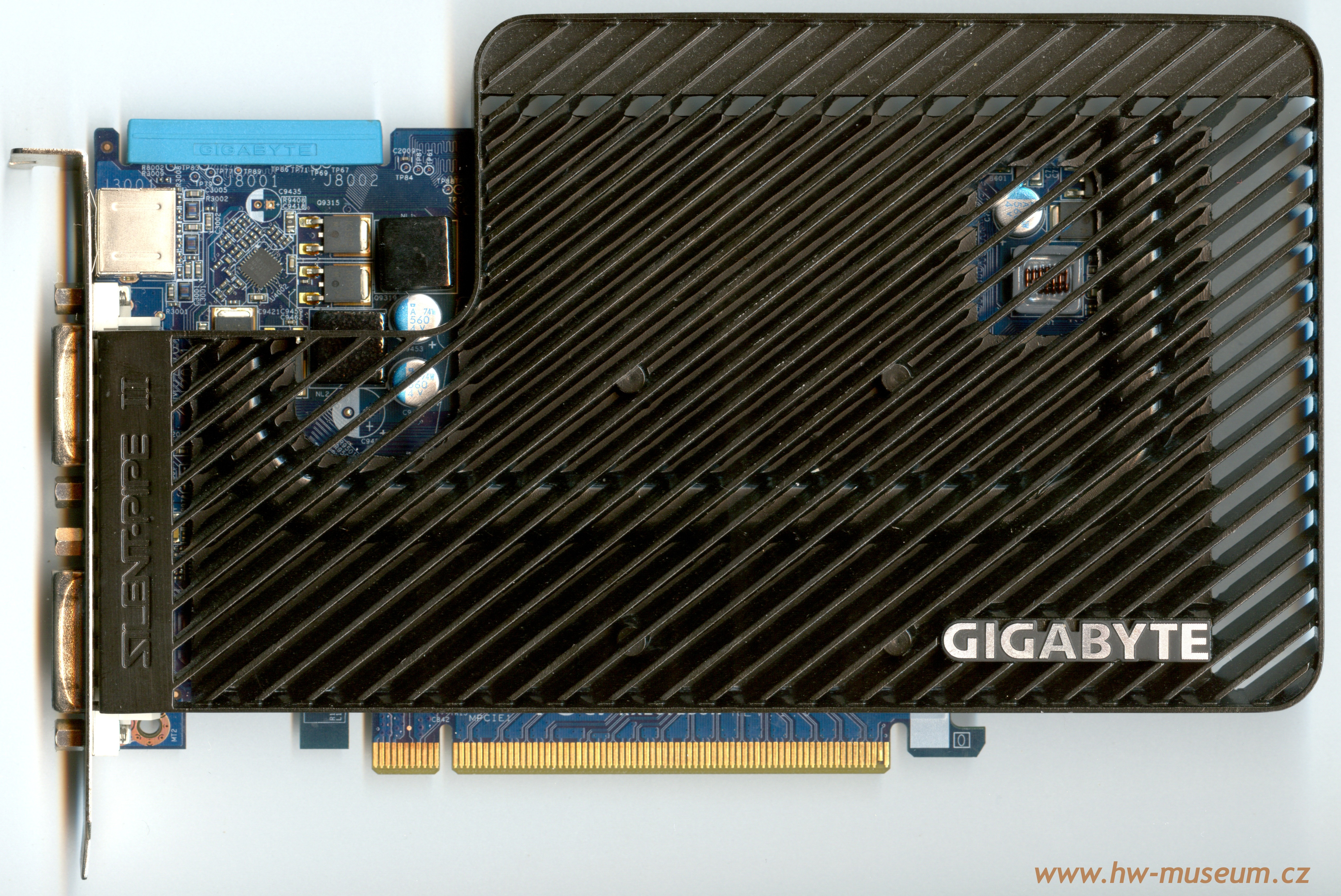

Gigabyte Radeon HD 2600 XT GDDR3 (front side)

Gigabyte Radeon HD 2600 XT GDDR3 (front side)

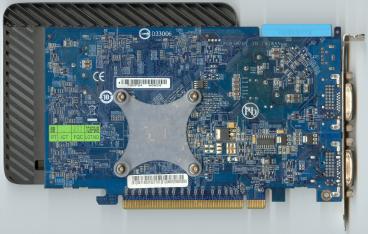

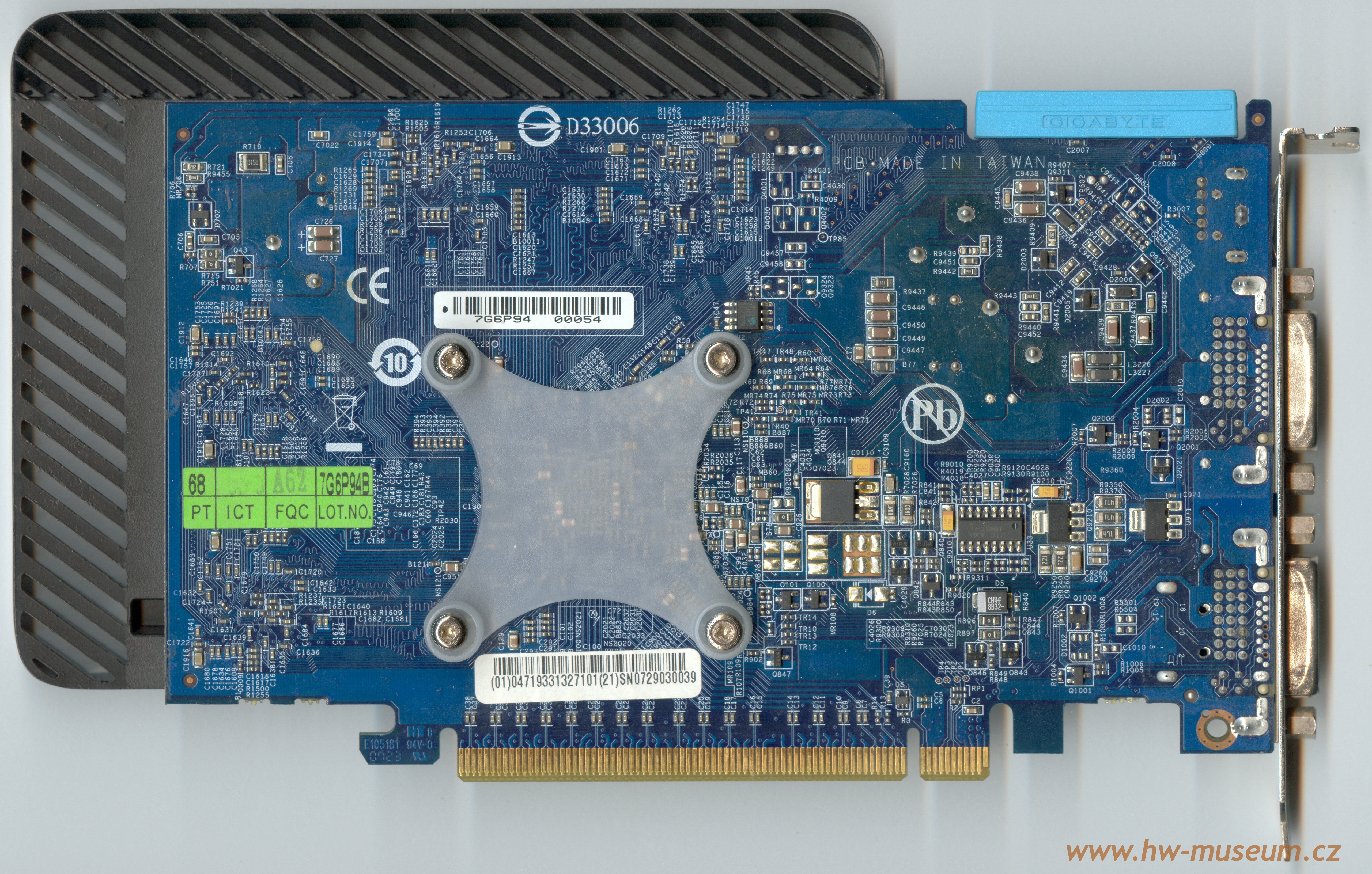

Gigabyte Radeon HD 2600 XT GDDR3 (back side)

Gigabyte Radeon HD 2600 XT GDDR3 (back side)
