Asus Radeon X700

Published: (last update )

GPU
GPU type RV410
Manufacturing process110 nm
Transistors160 milion
Die size156 mm2
ROPs8
TMUs8
Pixel shaders8
Vertex shaders6
Unified shaders-
Clock400 MHz
Pixel fillrate3200 MP/s
Texel fillrate3200 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock500 MHz
Bus width128 bit
Bandwith8000 MB/s
Rated speed500 MHz
BrandHynix
The card
ManufacturerAsus
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP44 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev2505
Release date2005

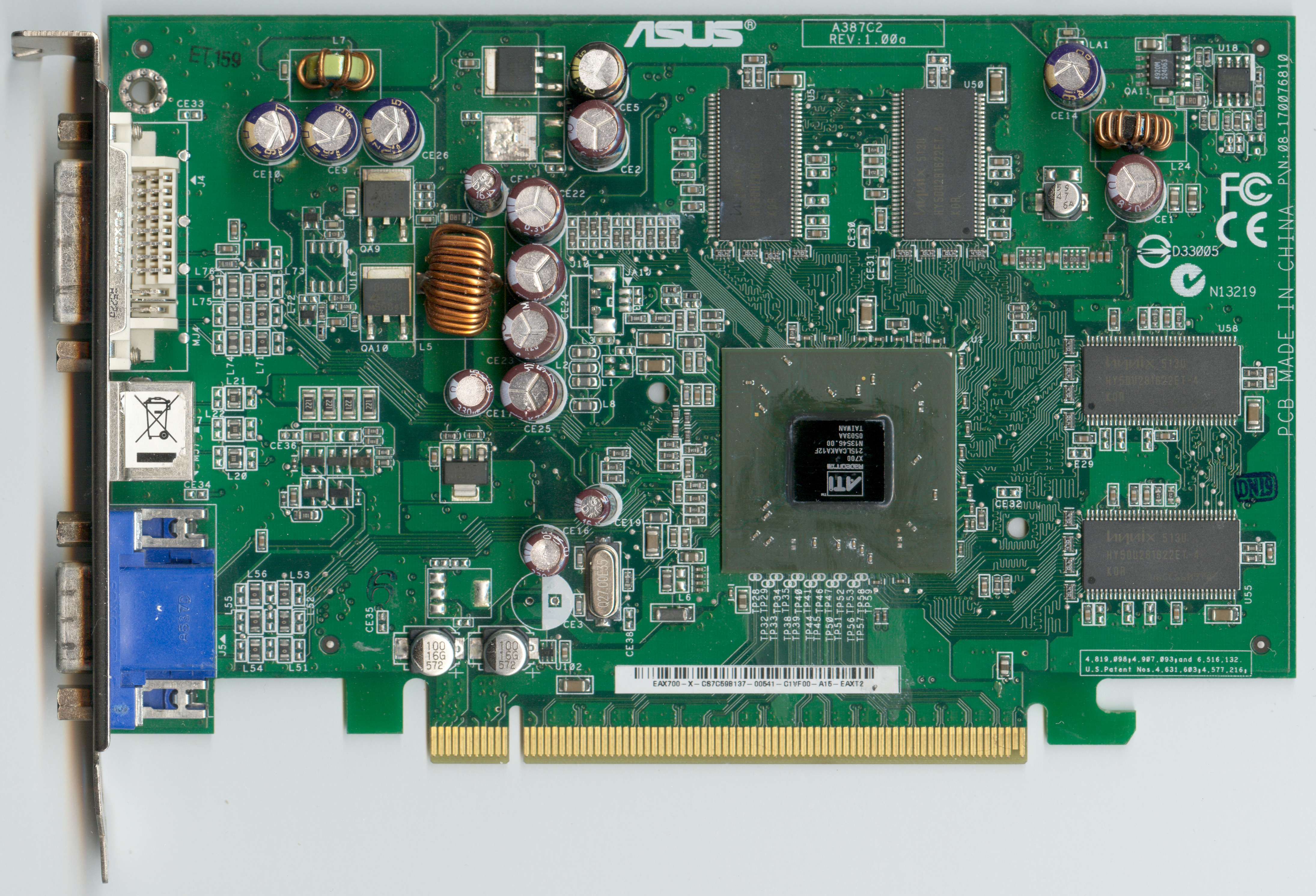

Asus Radeon X700 (front side)

Asus Radeon X700 (front side)

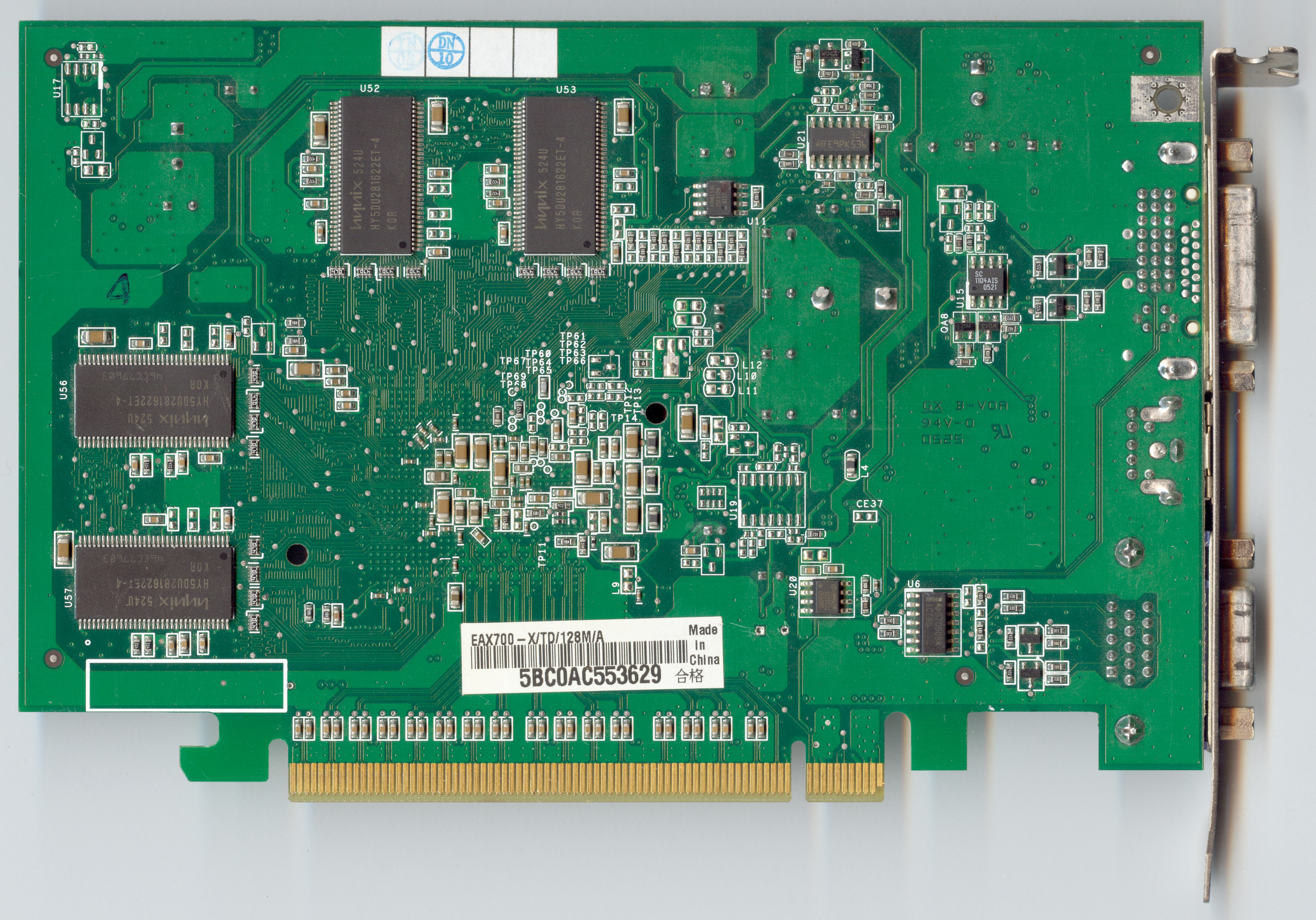

Asus Radeon X700 (back side)

Asus Radeon X700 (back side)
