3dfx Voodoo5 5500 PCI

Published: (last update )

GPU
GPU type 2 × VSA-100
Manufacturing process250 nm
Transistors28 million
Die size224 mm2
Density0.12 M / mm2
ROPs4
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate664 MP/s
Texel fillrate664 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeSDRAM
Clock166 MHz
Bus width256 bit
Bandwith5 312 MB/s
Rated speed166 MHz
BrandMicron Tech.
The card
Manufacturer3dfx
InterfacePCI
Interface bandwith133 MB/s
TDP30 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date29th week of 2000
Release date2000

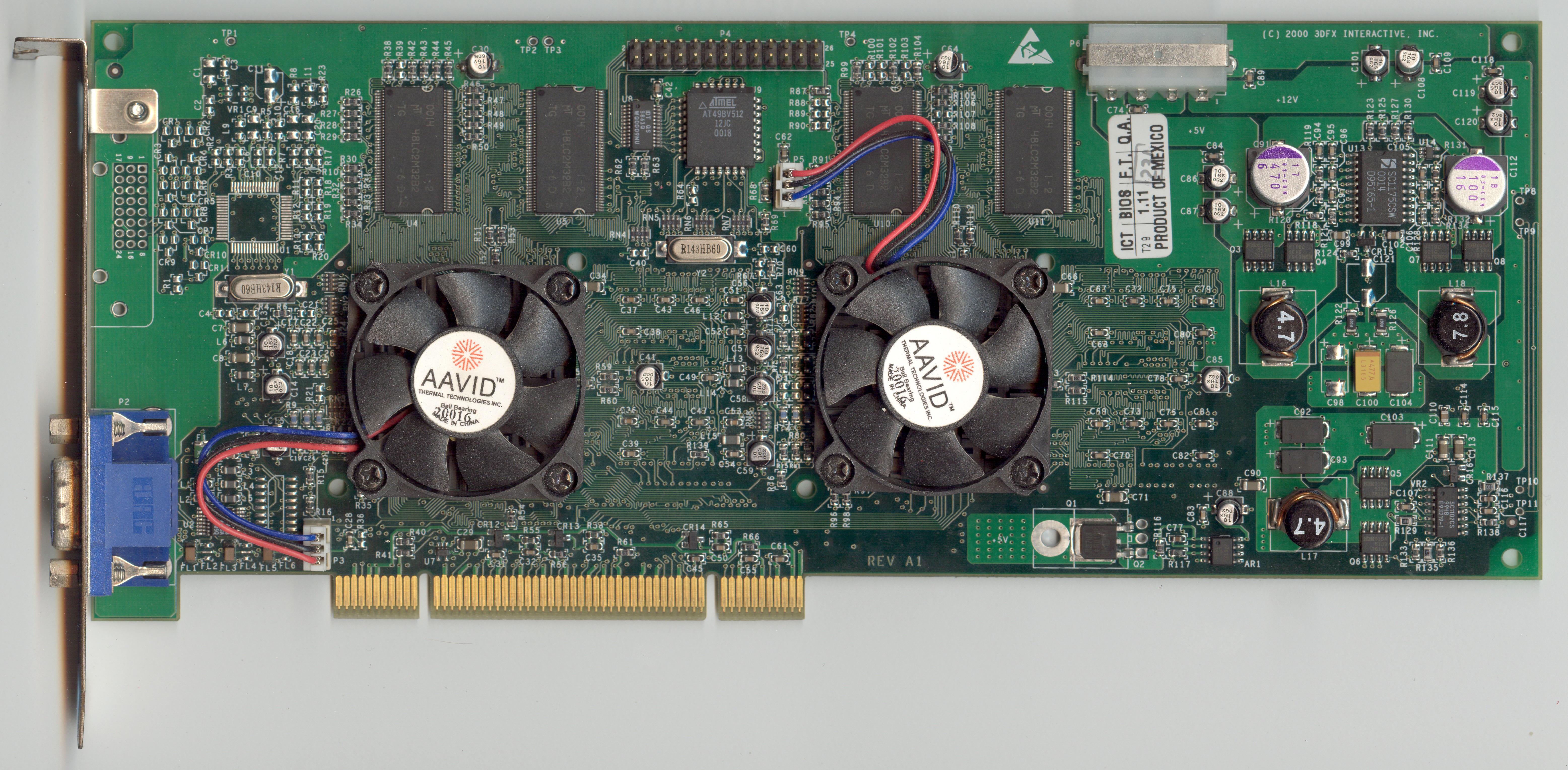

3dfx Voodoo5 5500 PCI (front side)

3dfx Voodoo5 5500 PCI (front side)

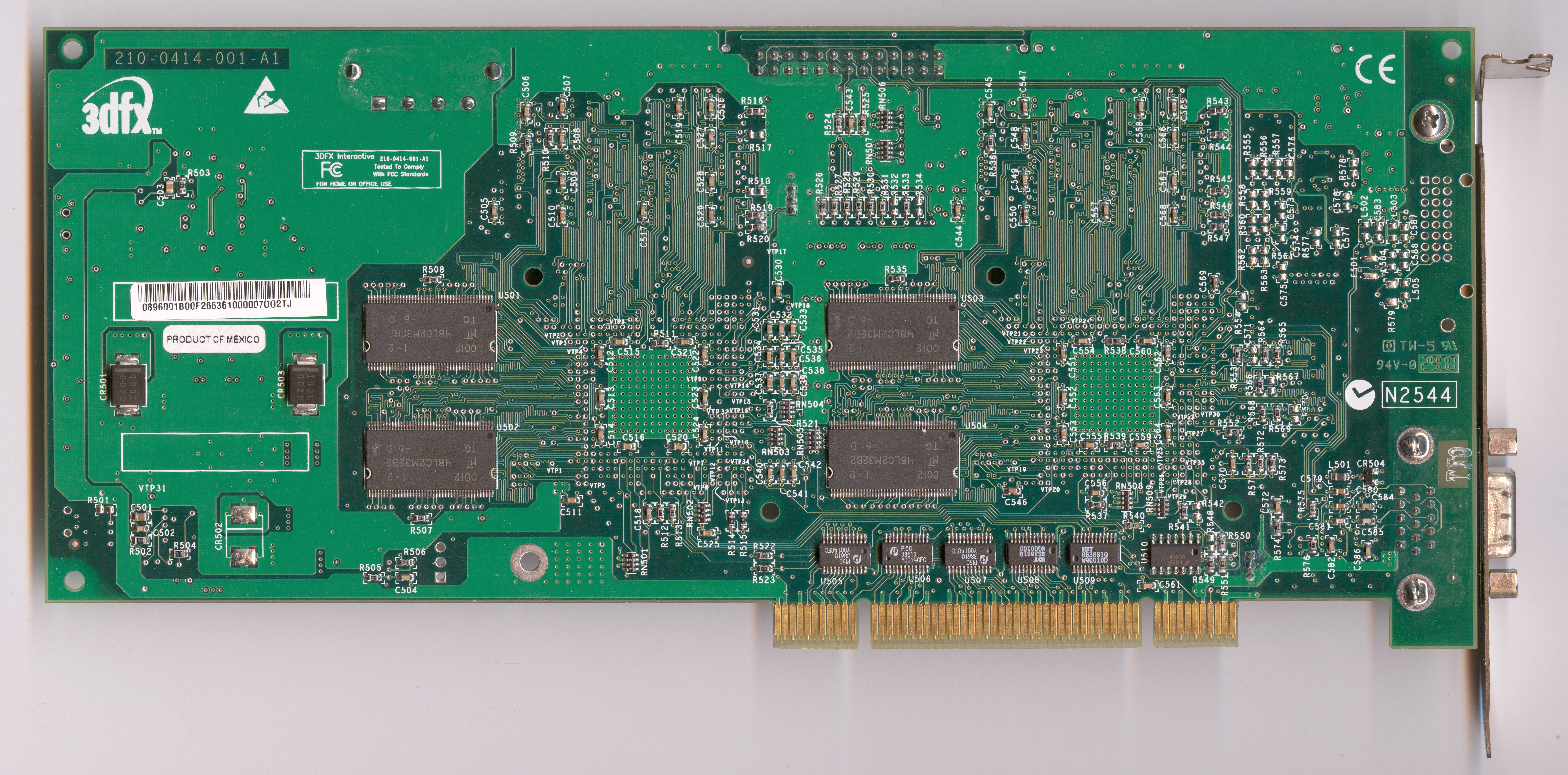

3dfx Voodoo5 5500 PCI (back side)

3dfx Voodoo5 5500 PCI (back side)
