3dfx Voodoo3 3000 PCI SDR

Published: (last update )

GPU
GPU type Avenger
Manufacturing process250 nm
Transistors8 milion
Die size74 mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate166 MP/s
Texel fillrate332 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity16 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2656 MB/s
Rated speed166 MHz
BrandVanguard
The card
Manufacturer3dfx
InterfacePCI
Interface bandwith133 MB/s
TDP11 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Rev4999
Release date1999

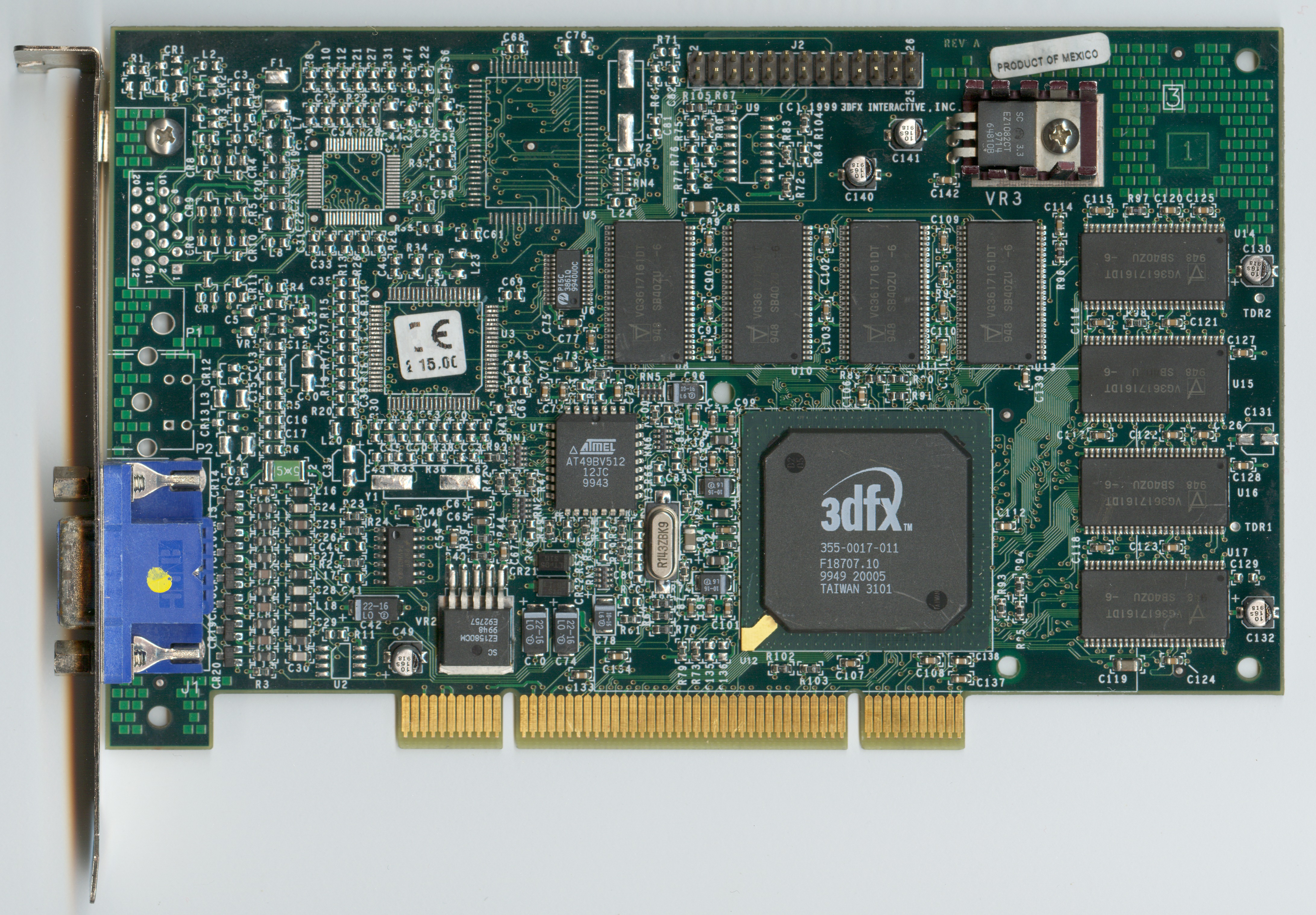

3dfx Voodoo3 3000 PCI SDR (front side)

3dfx Voodoo3 3000 PCI SDR (front side)

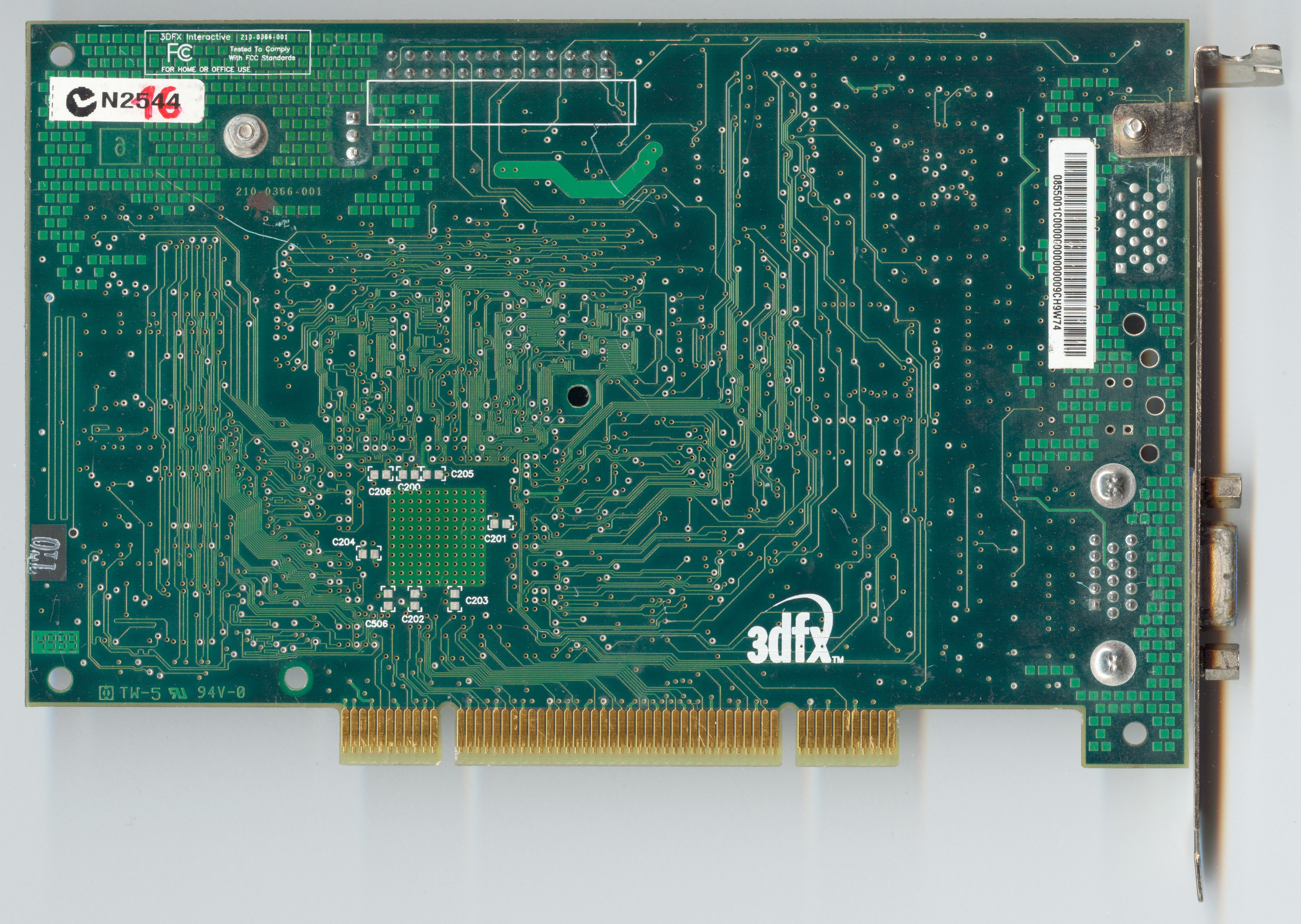

3dfx Voodoo3 3000 PCI SDR (back side)

3dfx Voodoo3 3000 PCI SDR (back side)
