3dfx Velocity 100 rev. A2

Published: (last update )

GPU
GPU type Avenger
Manufacturing process250 nm
Transistors8 million
Die size74 mm2
Density0.11 M / mm2
ROPs1
TMUs1
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock143 MHz
Pixel fillrate143 MP/s
Texel fillrate143 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity8 MB
TypeSGRAM
Clock143 MHz
Bus width128 bit
Bandwith2 288 MB/s
Rated speed183 MHz
BrandSiemens
The card
Manufacturer3dfx
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP10 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date37th week of 1999
Release date1999

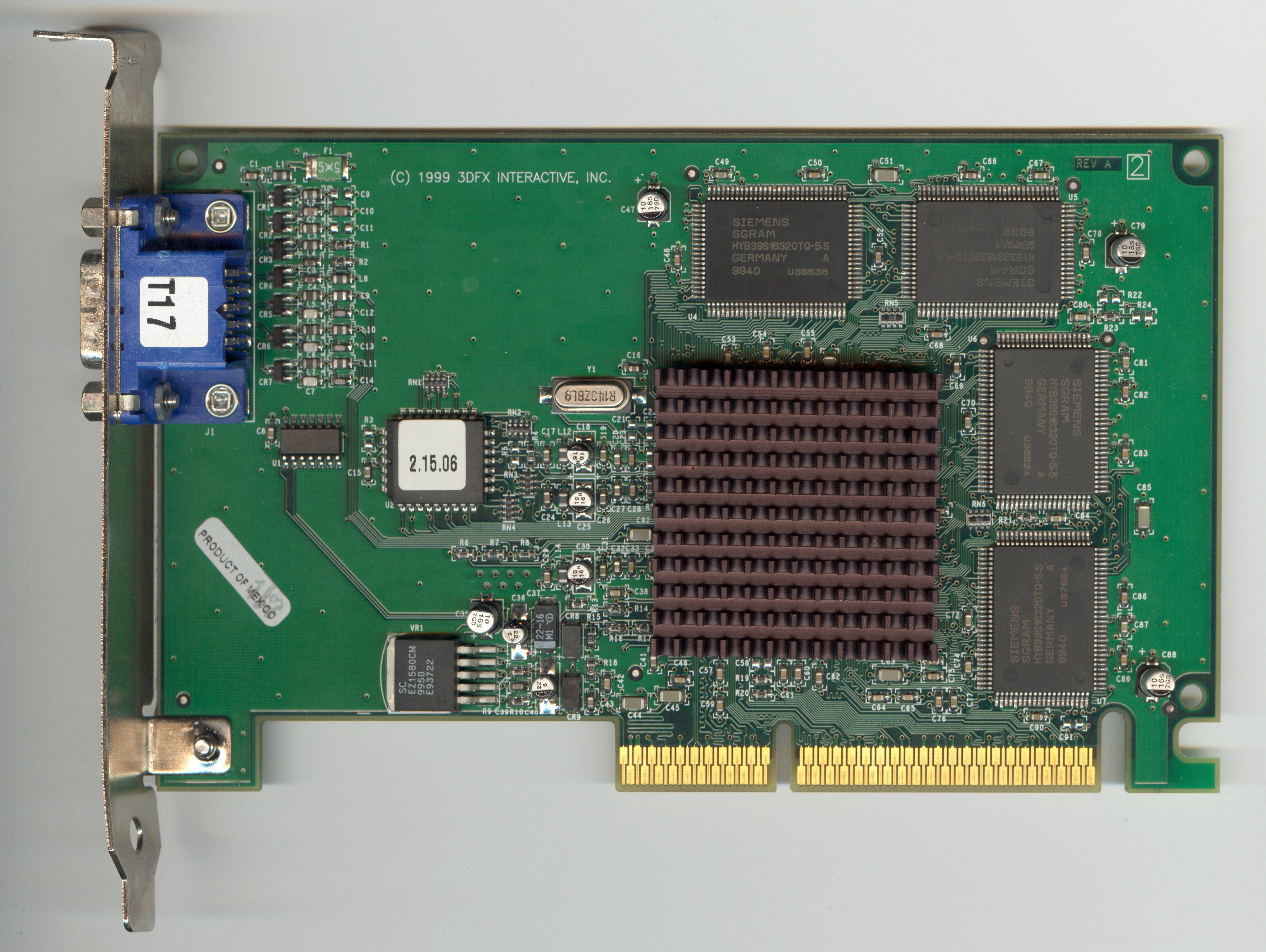

3dfx Velocity 100 rev. A2 (front side)

3dfx Velocity 100 rev. A2 (front side)

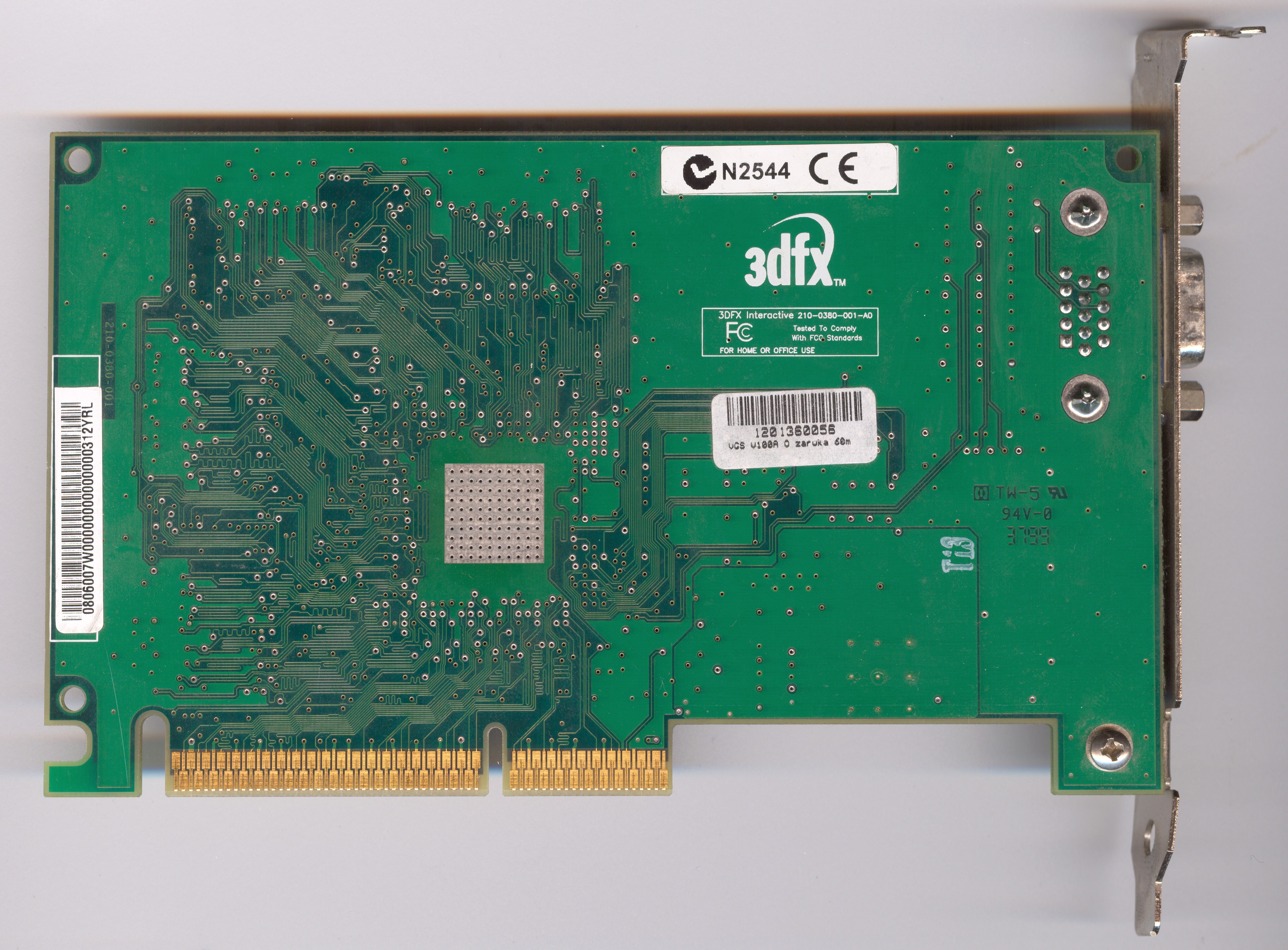

3dfx Velocity 100 rev. A2 (back side)

3dfx Velocity 100 rev. A2 (back side)

3dfx Velocity 100 rev. A2 gallery
3dfx Velocity 100 rev. A2 gallery
