Compaq Voodoo3 1000 (Velocity 200 PCB)

Published: (last update )

GPU
GPU type Avenger
Manufacturing process250 nm
Transistors8 million
Die size74 mm2
Density0.11 M / mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock125 MHz
Pixel fillrate125 MP/s
Texel fillrate250 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity16 MB
TypeSGRAM
Clock125 MHz
Bus width128 bit
Bandwith2 000 MB/s
Rated speed143 MHz
BrandElite MT
The card
ManufacturerCompaq
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP12 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date31st week of 1999
Release date1999

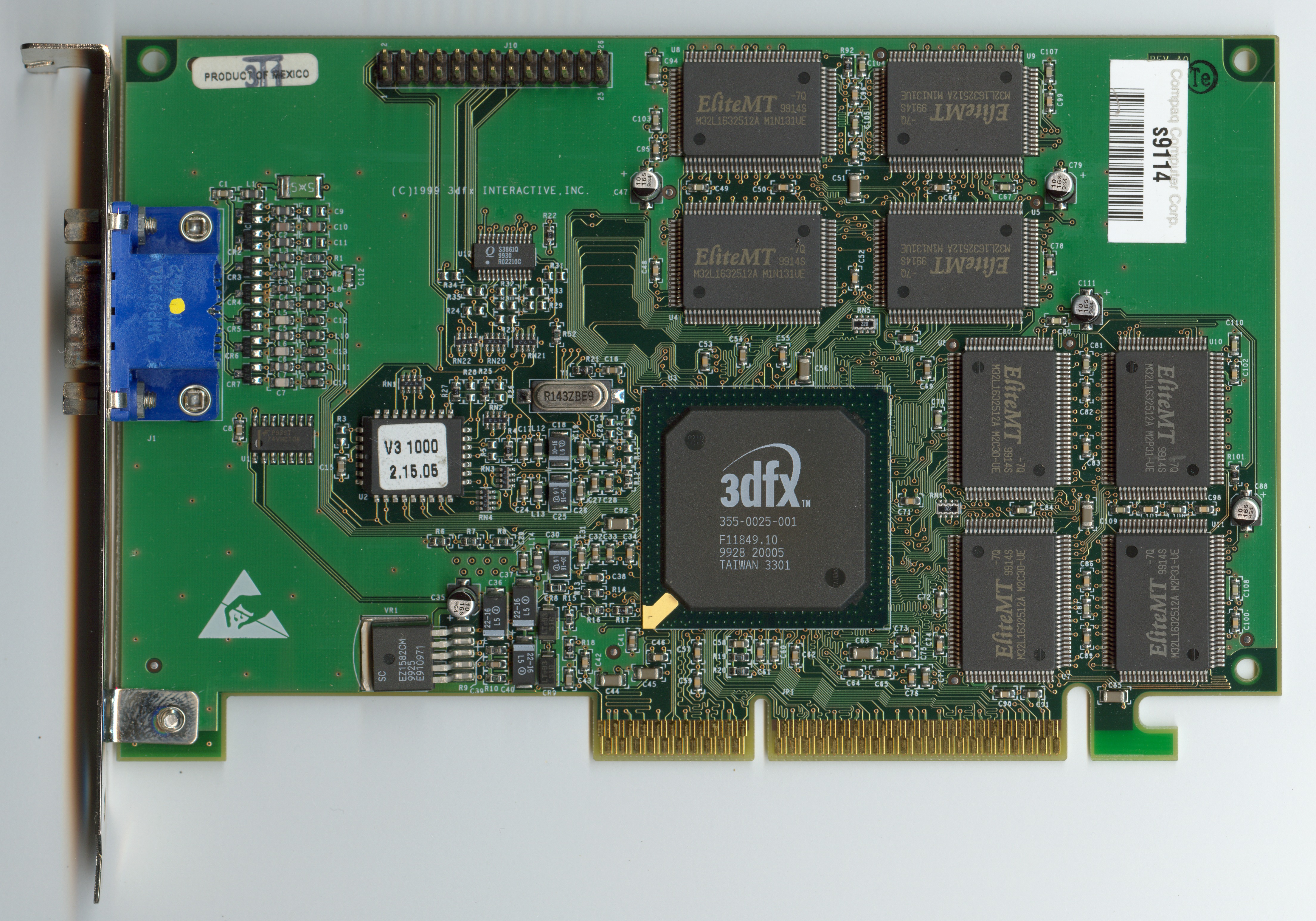

Compaq Voodoo3 1000 (Velocity 200 PCB) (front side)

Compaq Voodoo3 1000 (Velocity 200 PCB) (front side)

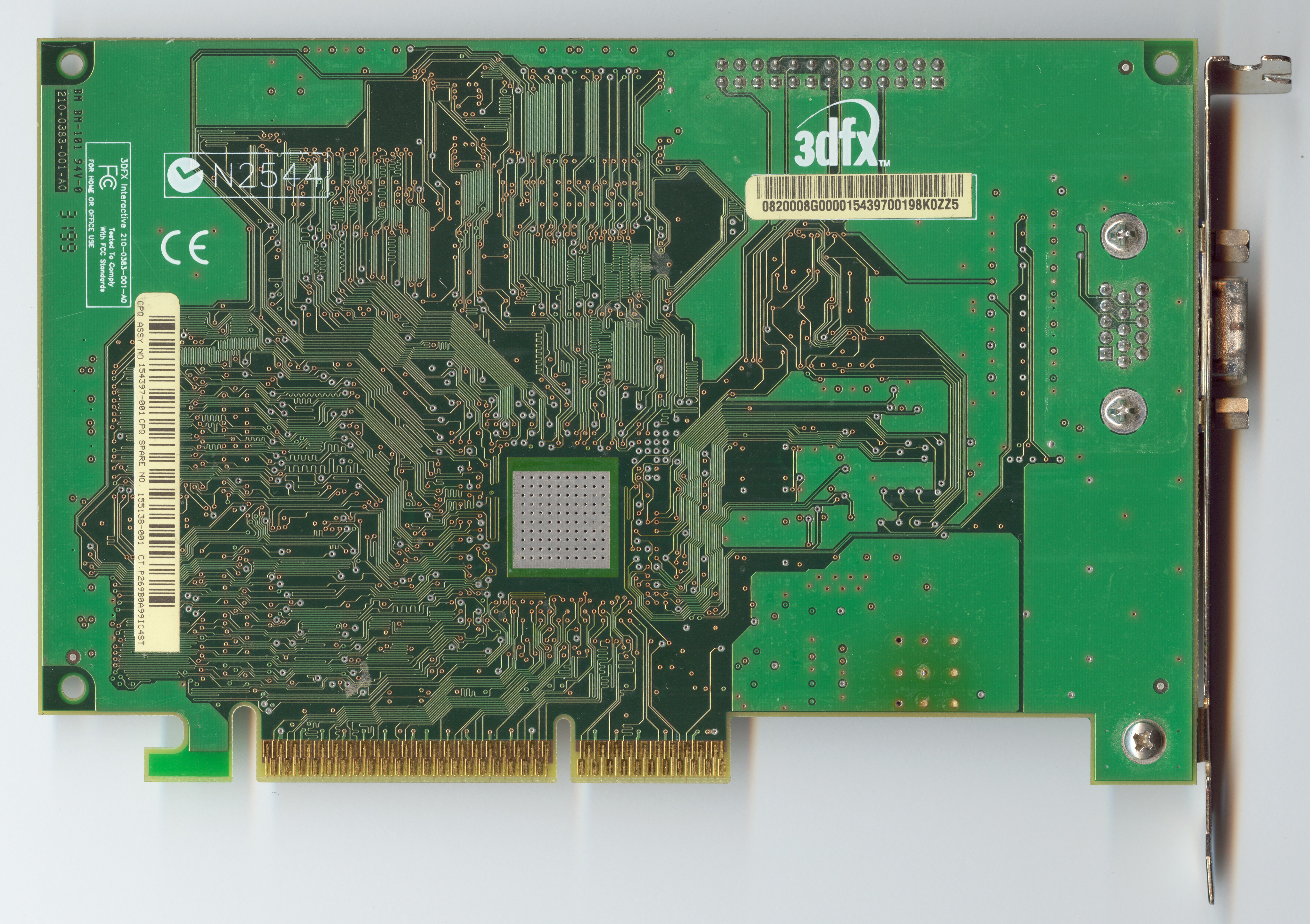

Compaq Voodoo3 1000 (Velocity 200 PCB) (back side)

Compaq Voodoo3 1000 (Velocity 200 PCB) (back side)
