nVidia GeForce 6800 (chip only)

Published: (last update )

GPU
GPU type NV40
Manufacturing process130 nm
Transistors222 million
Die size287 mm2
Density0.77 M / mm2
ROPs12
TMUs12
Pixel shaders12
Vertex shaders5
Unified shaders-
Clock325 MHz
Pixel fillrate3 900 MP/s
Texel fillrate3 900 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity-
Type-
Clock700 MHz
Bus width256 bit
Bandwith22 400 MB/s
Rated speed-
Brand-
The card
ManufacturernVidia
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP-
Analog I/O ports-
Digital I/O ports-
Independent screens2
Manufacture date1st week of 2005
Release date2004

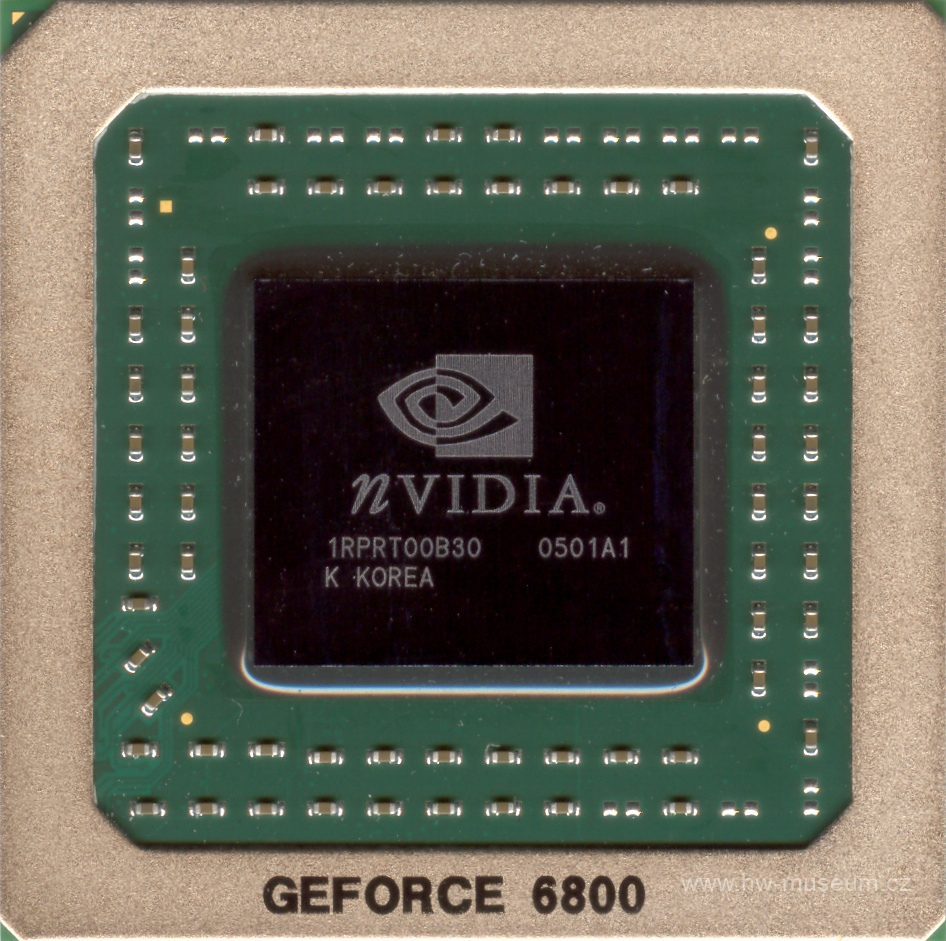

nVidia GeForce 6800 (chip only) (front side)

nVidia GeForce 6800 (chip only) (front side)

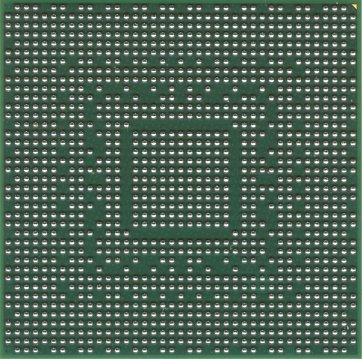

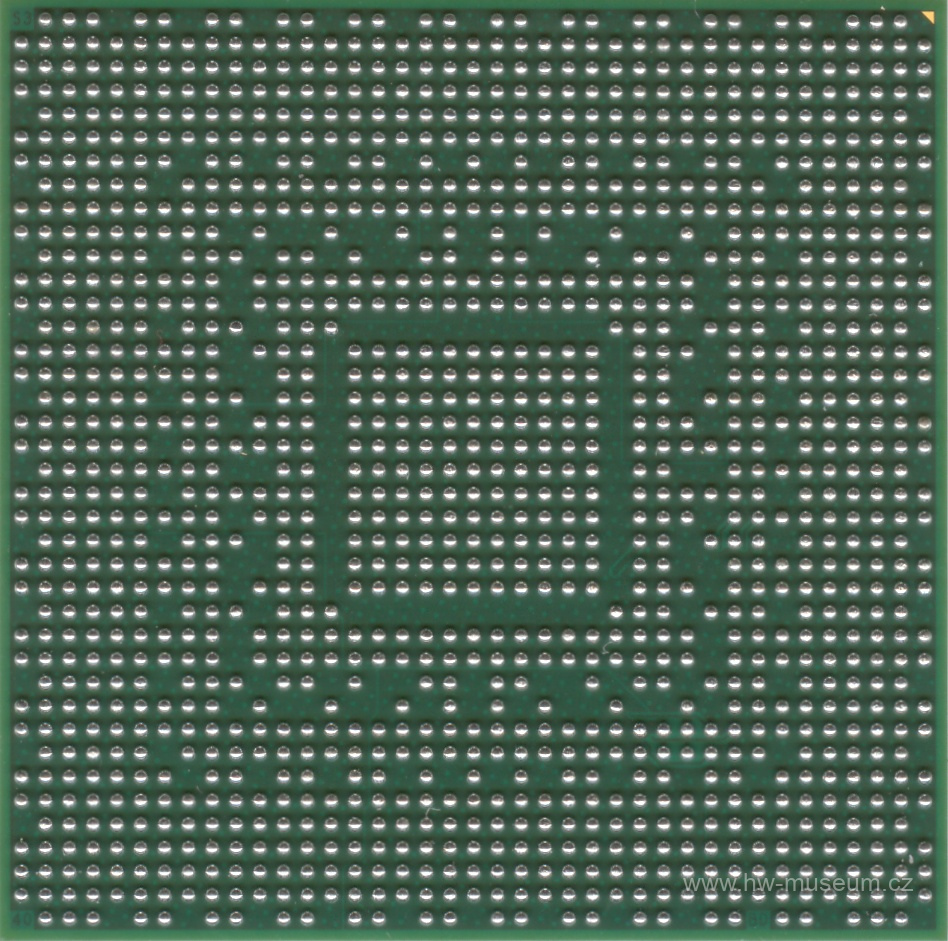

nVidia GeForce 6800 (chip only) (back side)

nVidia GeForce 6800 (chip only) (back side)
