Asus GeForce GTS 250

Published: (last update )

GPU
GPU type G92B
Manufacturing process55 nm
Transistors754 million
Die size260 mm2
Density2.90 M / mm2
ROPs16
TMUs64
Pixel shaders-
Vertex shaders-
Unified shaders128
Clock740 MHz
Pixel fillrate11 840 MP/s
Texel fillrate47 360 MT/s
SP gigaflops705
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.1.1 / 1.1
Memory
Capacity1 024 MB
TypeGDDR3
Clock2 000 MHz
Bus width256 bit
Bandwith64 000 MB/s
Rated speed-
Brand-
The card
ManufacturerAsus
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP150 W
Analog I/O ports1 × VGA, 1 × DVI-I
Digital I/O ports1 × DVI-I, 1 × HDMI
Independent screens2
Manufacture date37th week of 2009
Release date2009

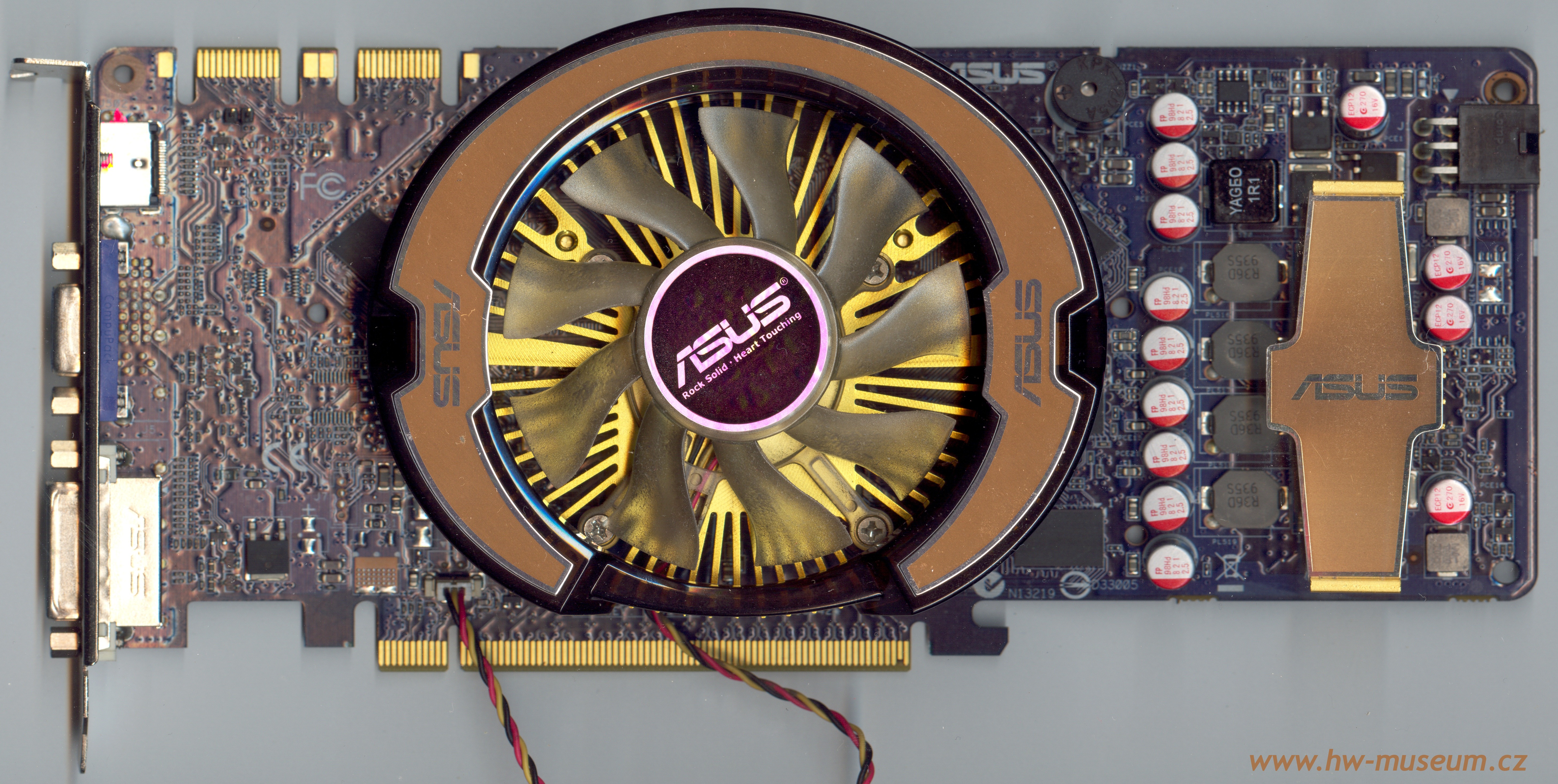

Asus GeForce GTS 250 (front side)

Asus GeForce GTS 250 (front side)

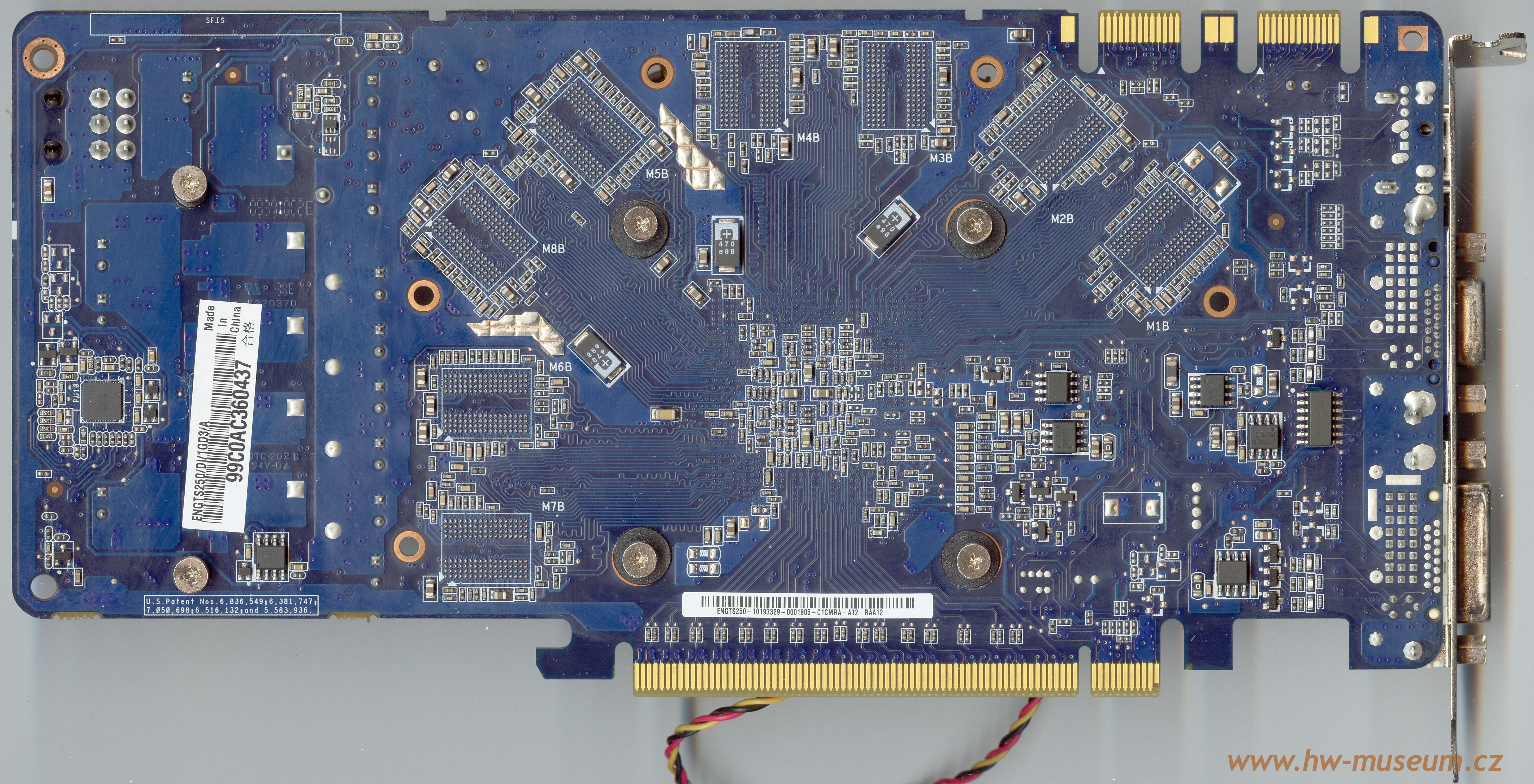

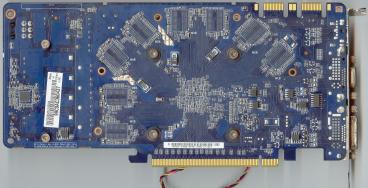

Asus GeForce GTS 250 (back side)

Asus GeForce GTS 250 (back side)
