Asus GeForce 8600 GTS

Published: (last update )

GPU
GPU type G84
Manufacturing process80 nm
Transistors289 million
Die size169 mm2
Density1.71 M / mm2
ROPs8
TMUs16
Pixel shaders-
Vertex shaders-
Unified shaders32
Clock675 MHz
Pixel fillrate5 400 MP/s
Texel fillrate10 800 MT/s
SP gigaflops139
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.1.1 / 1.1
Memory
Capacity256 MB
TypeGDDR3
Clock2 000 MHz
Bus width128 bit
Bandwith32 000 MB/s
Rated speed2 000 MHz
BrandQimonda
The card
ManufacturerAsus
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP75 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date25th week of 2007
Release date2007

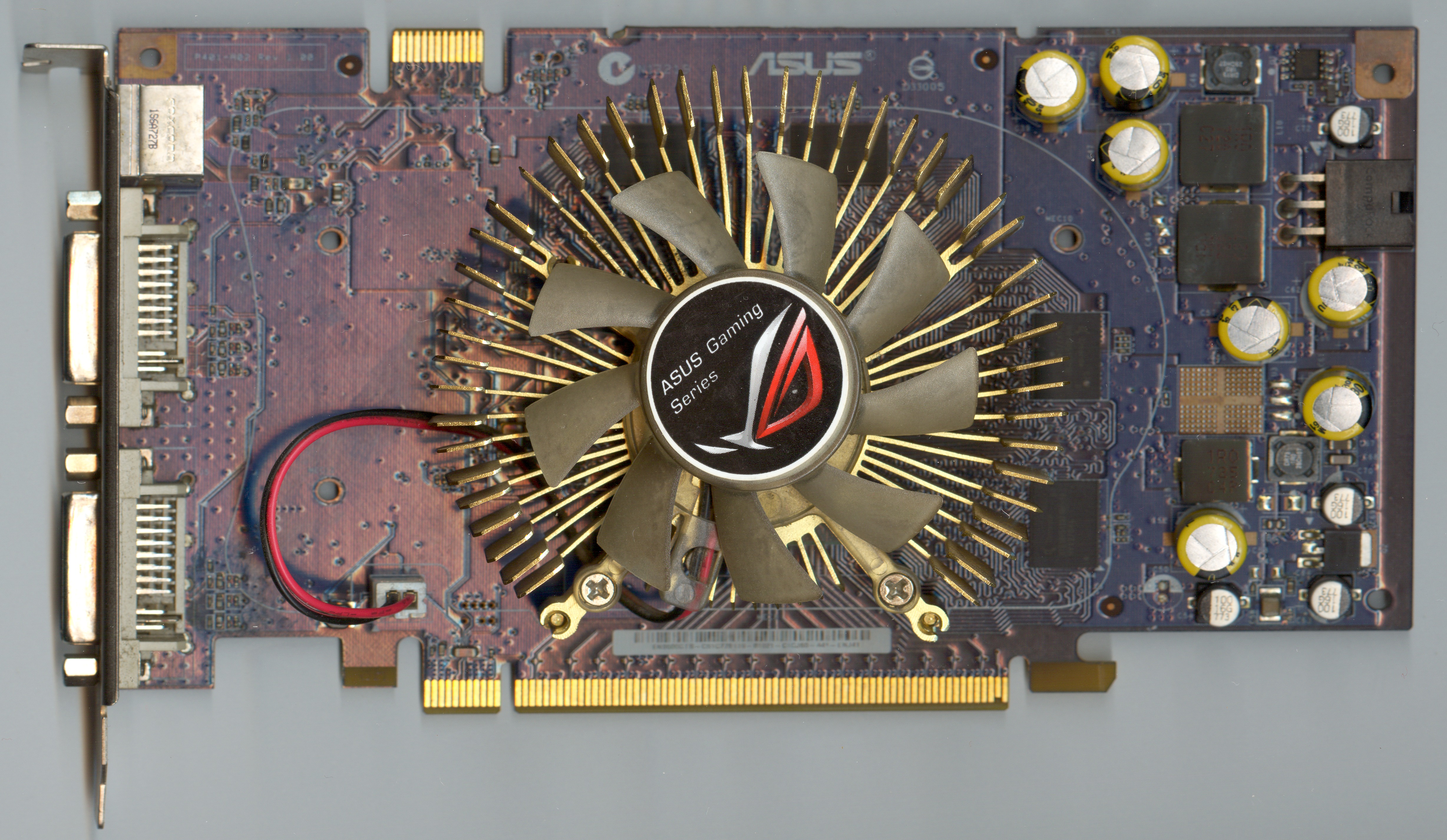

Asus GeForce 8600 GTS (front side)

Asus GeForce 8600 GTS (front side)

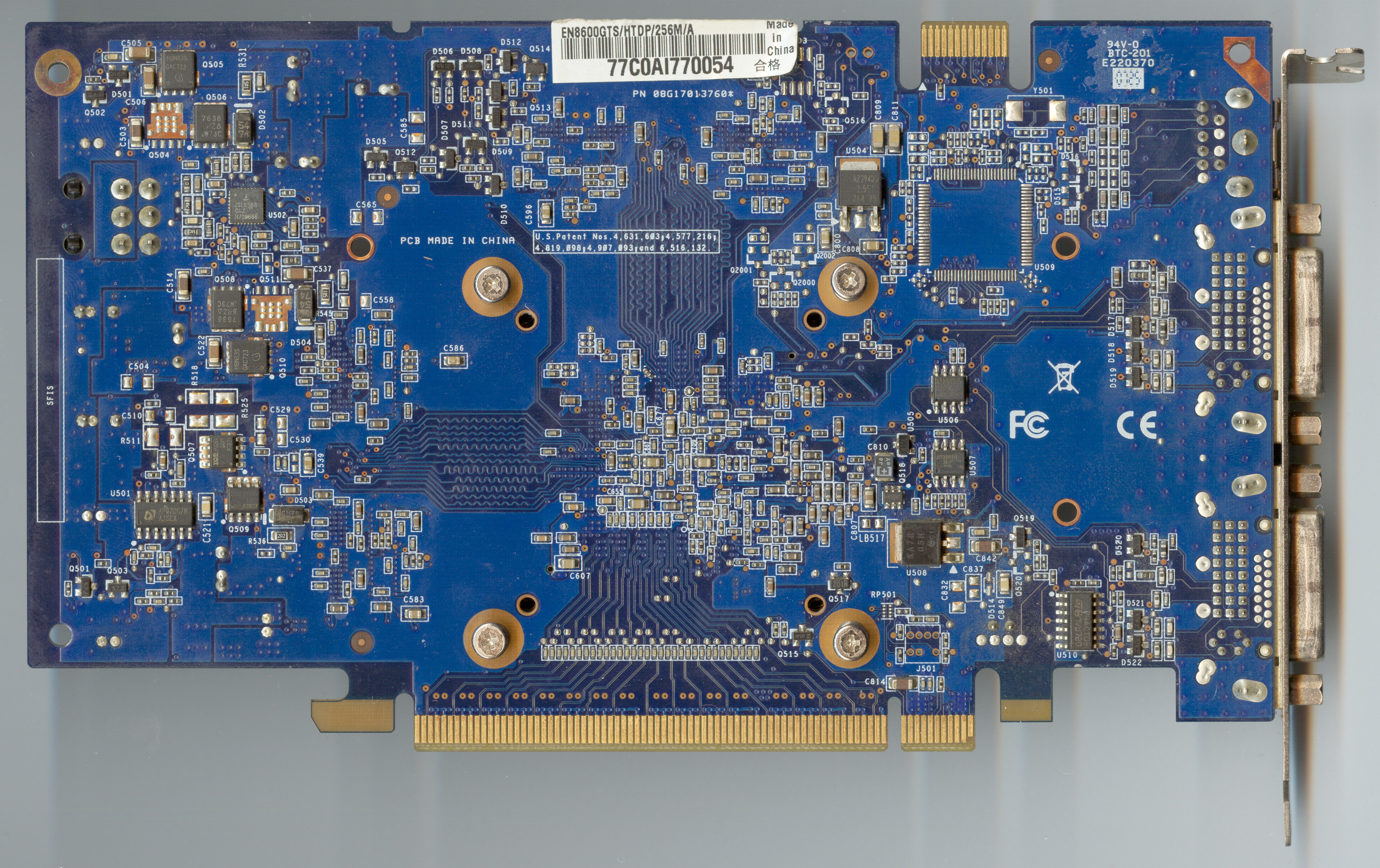

Asus GeForce 8600 GTS (back side)

Asus GeForce 8600 GTS (back side)
