Asus Radeon HD 4830

Published: (last update )

GPU
GPU type RV770
Manufacturing process55 nm
Transistors956 million
Die size256 mm2
Density3.73 M / mm2
ROPs16
TMUs32
Pixel shaders-
Vertex shaders-
Unified shaders640
Clock575 MHz
Pixel fillrate9 200 MP/s
Texel fillrate18 400 MT/s
SP gigaflops736
DP gigaflops147
DirectX10.1
OpenGL3.3
OpenCL / Compute ver.1.0 / -
Memory
Capacity512 MB
TypeGDDR3
Clock1 800 MHz
Bus width256 bit
Bandwith57 600 MB/s
Rated speed2 000 MHz
BrandQimonda
The card
ManufacturerAsus
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP95 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date35th week of 2008
Release date2008

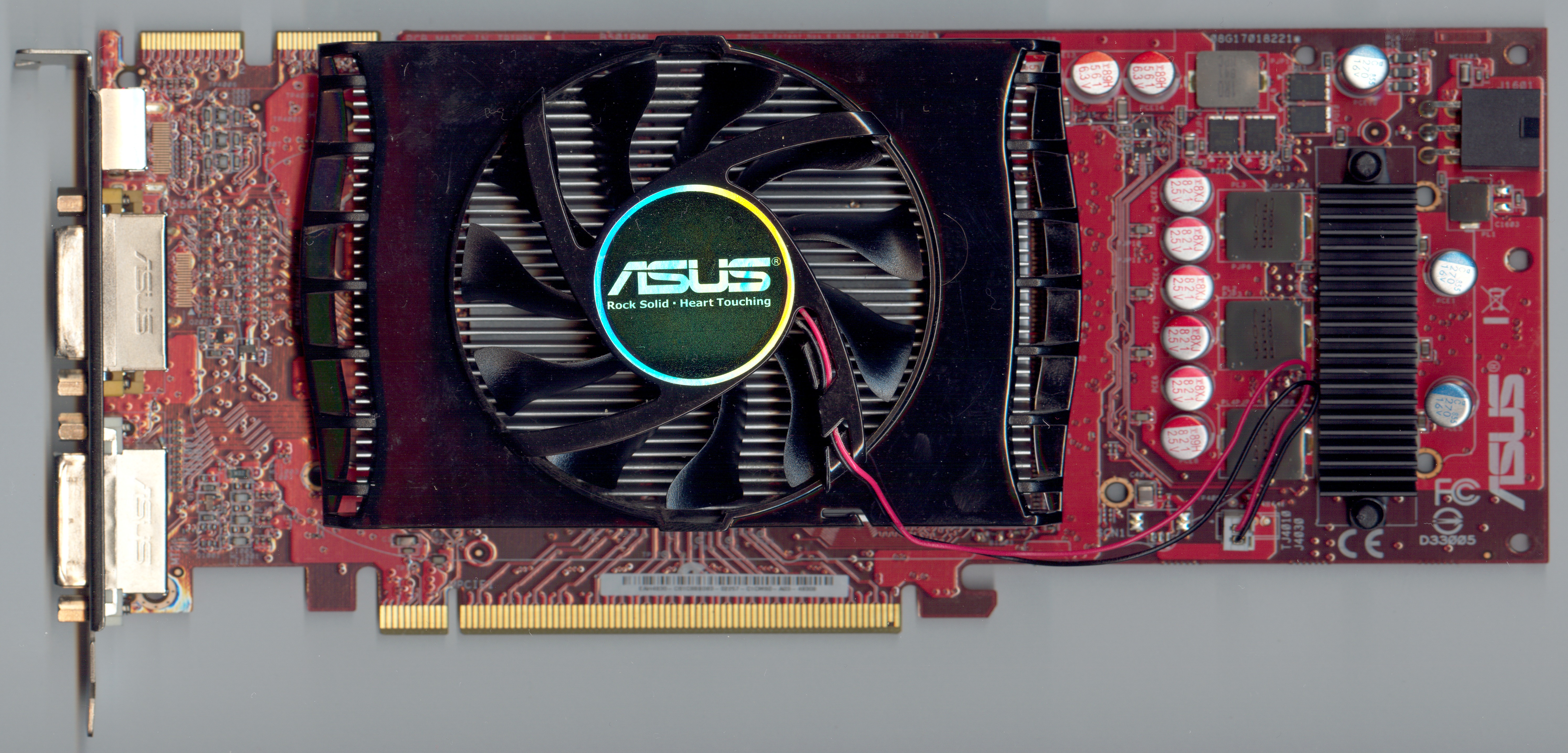

Asus Radeon HD 4830 (front side)

Asus Radeon HD 4830 (front side)

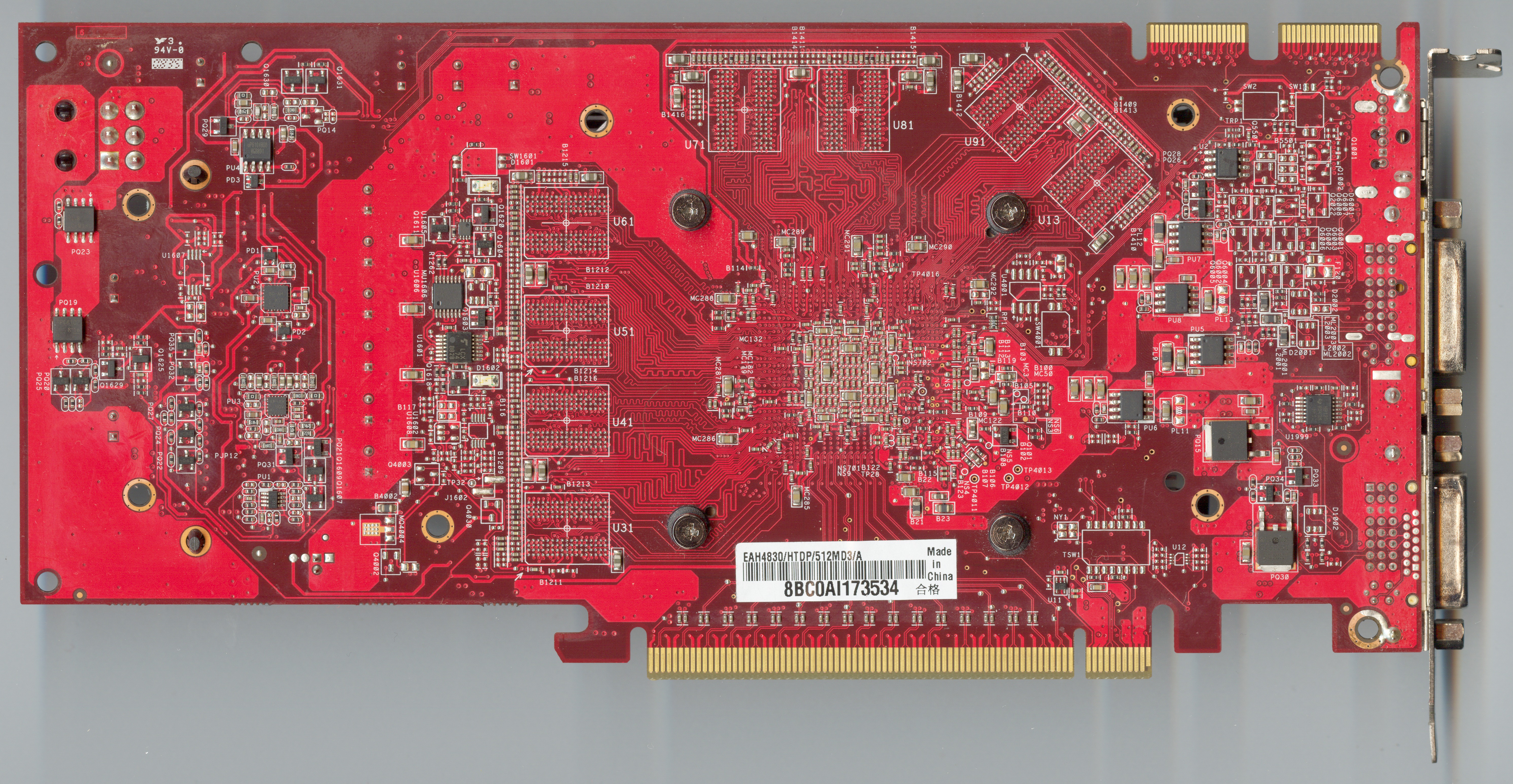

Asus Radeon HD 4830 (back side)

Asus Radeon HD 4830 (back side)
