MSI Radeon X1300 Pro

Published: (last update )

GPU
GPU type RV515
Manufacturing process90 nm
Transistors105 million
Die size100 mm2
Density1.05 M / mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders3
Unified shaders-
Clock600 MHz
Pixel fillrate2 400 MP/s
Texel fillrate2 400 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeDDR2
Clock800 MHz
Bus width128 bit
Bandwith12 800 MB/s
Rated speed1 000 MHz
BrandHynix
The card
ManufacturerMSI
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP31 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date42nd week of 2006
Release date2005

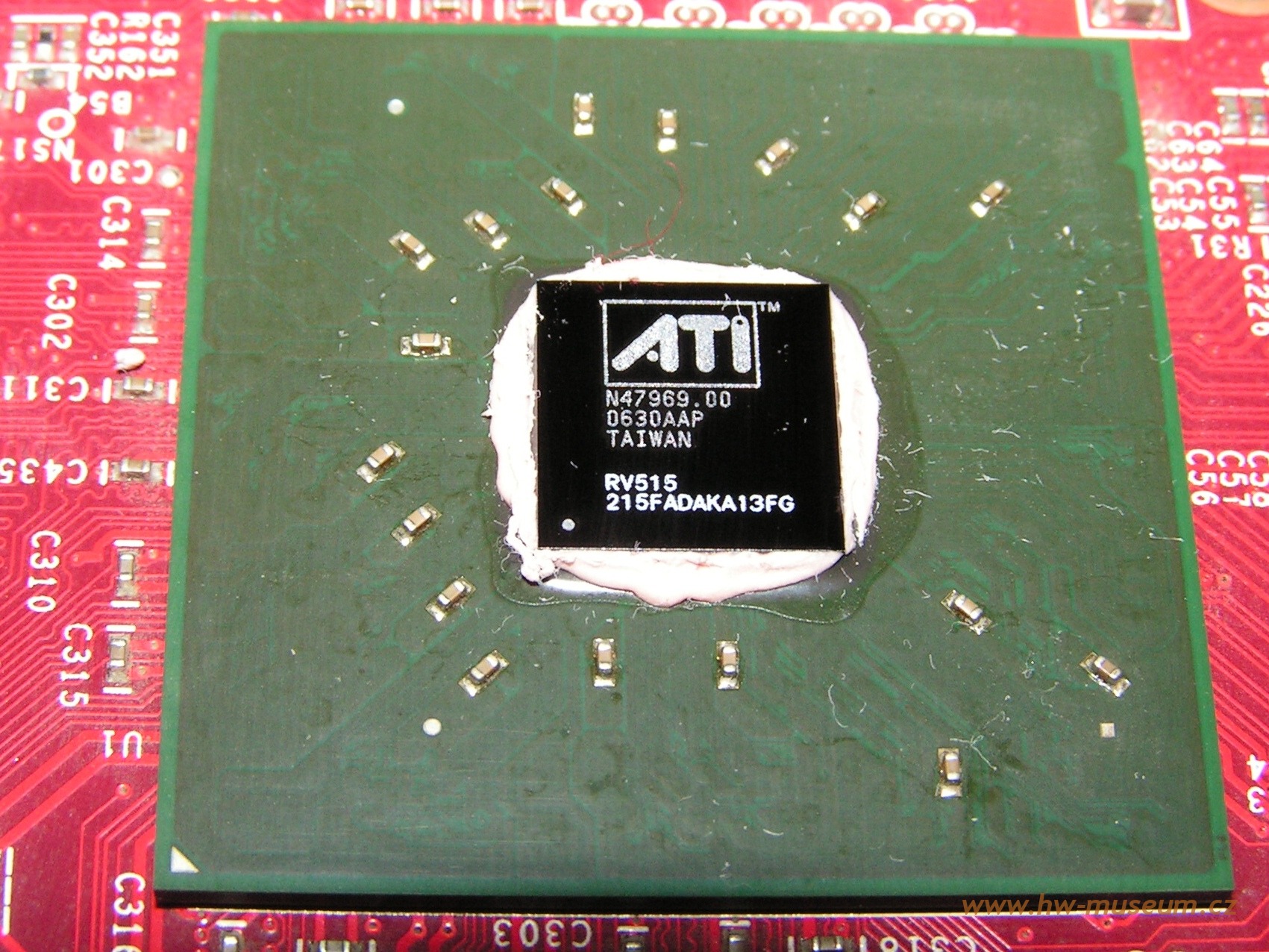

MSI Radeon X1300 Pro (front side)

MSI Radeon X1300 Pro (front side)

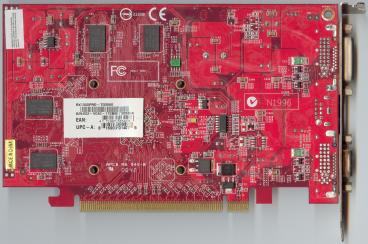

MSI Radeon X1300 Pro (back side)

MSI Radeon X1300 Pro (back side)

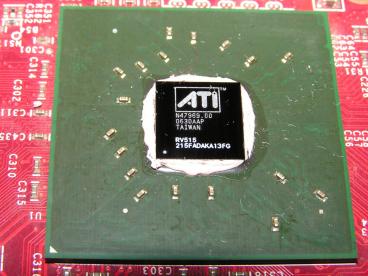

MSI Radeon X1300 Pro gallery
MSI Radeon X1300 Pro gallery
