Asus K8N

Published: (last update )

Chipset
ModelnVidia nForce3 250
NorthbridgenForce3 250
Southbridge-
Bus typeHT, 1600 MHz, 32 bit
Bus bandwith6 400 MB/s
RAM type (1)DDR 400 MHz, 64 bit
RAM type (2)-
RAM bandwidth3 200 MB/s
Maximum RAM3 072 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.3
Integrated VGA-
The board
Socketsocket 754
Supported CPUsAthlon 64, Turion 64, Sempron
Fastest CPUAthlon 64 3700+
RAM slots3 × DDR
AGP4× - 8× ; 1.5V - 0.8V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, -
IDE2 × ATA 133
SATA2 × (150)
USB / Firewire8 × (2.0)
LAN1 × 10/100 Mb/s
FormatATX (305x245)
Release date2004

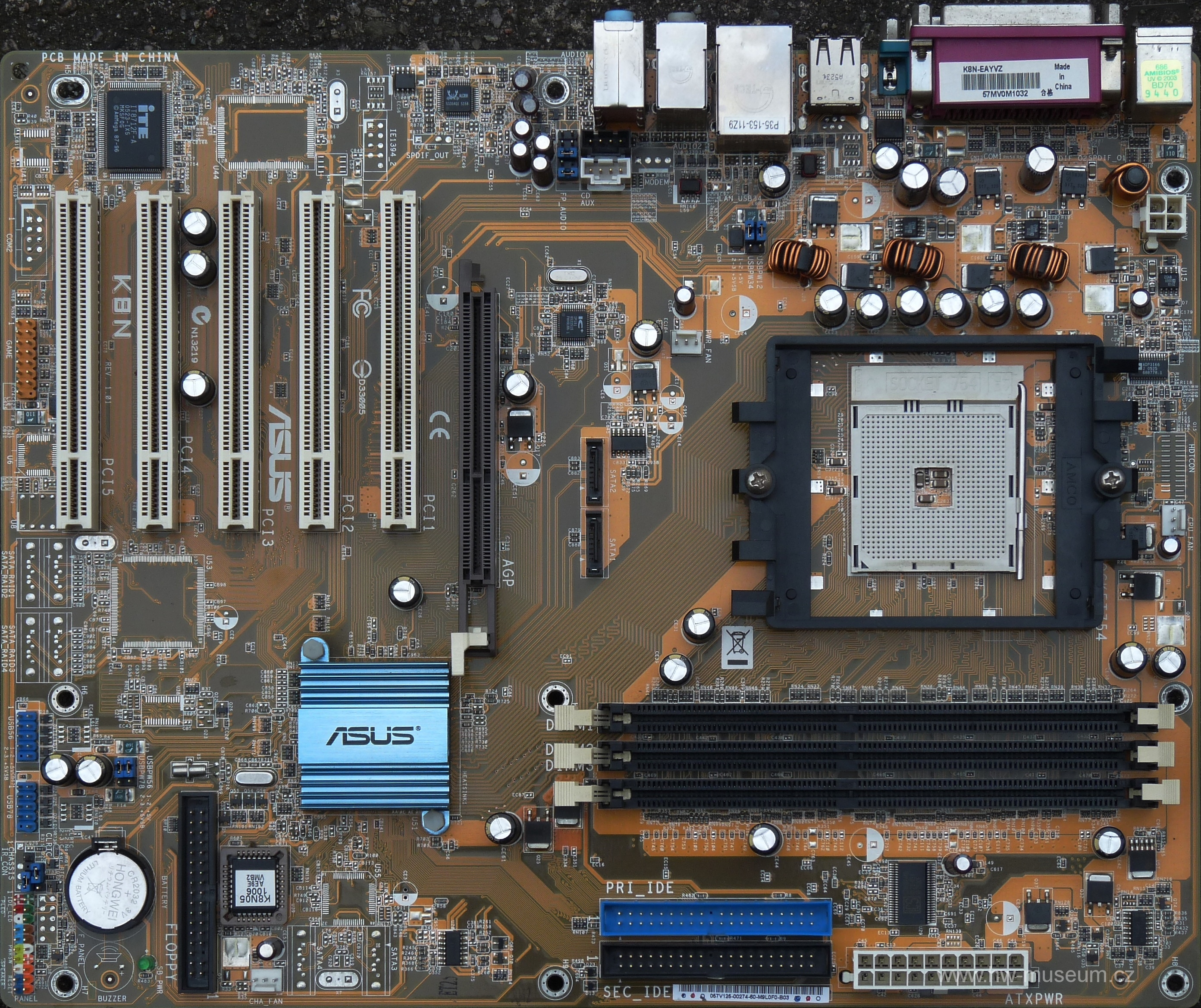

Asus K8N (front side)

Asus K8N (front side)

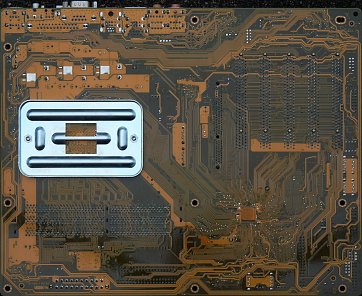

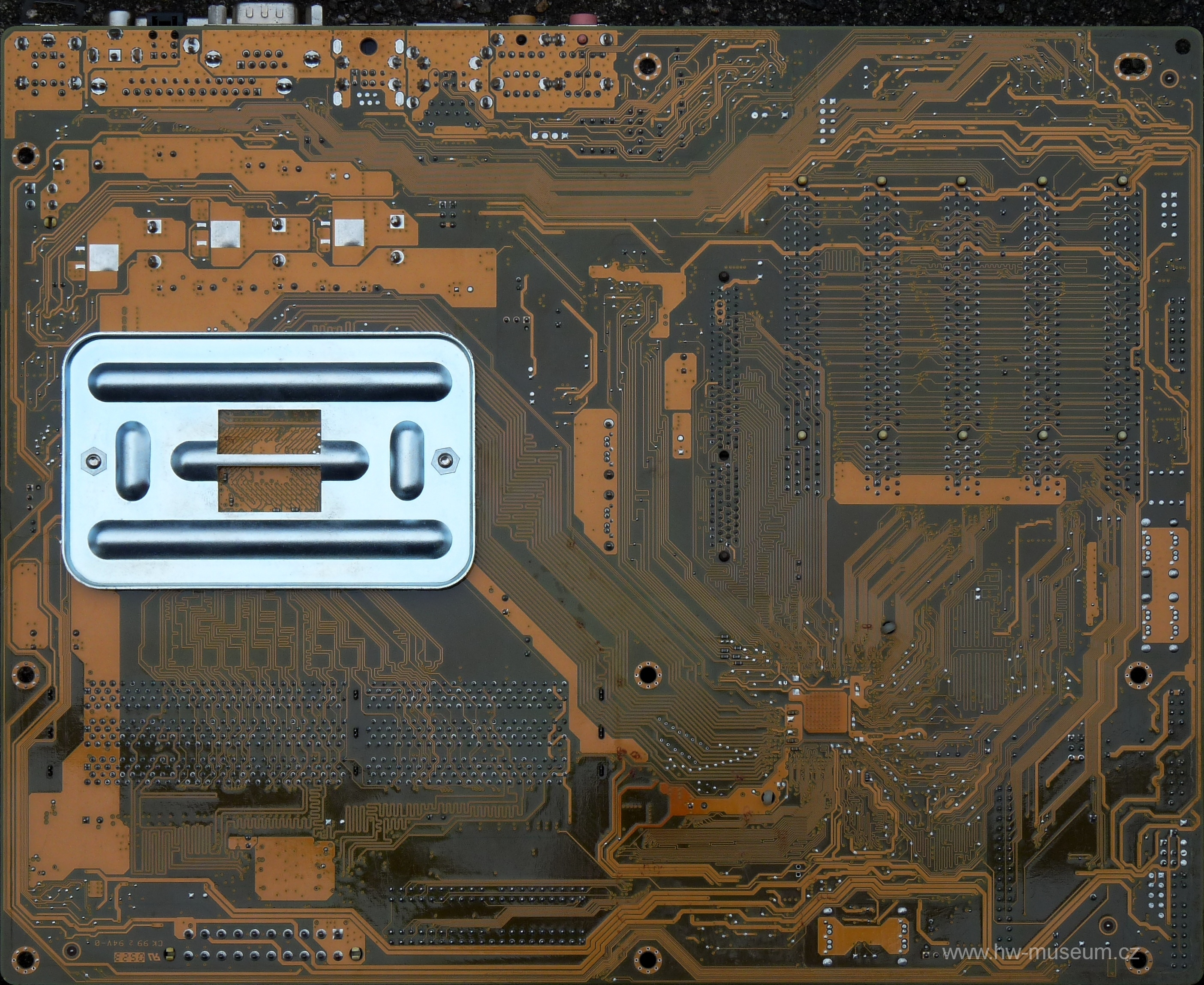

Asus K8N (back side)

Asus K8N (back side)
