ASRock AM2NF3-VSTA

Published: (last update )

Chipset
ModelnVidia nForce3 250
NorthbridgenForce3 250
Southbridge-
Bus typeHT, 1600 MHz, 32 bit
Bus bandwith6400 MB/s
RAM type (1)DDR2 800 MHz, 128 bit
RAM type (2)-
RAM bandwidth12800 MB/s
Maximum RAM8192 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.3
Integrated VGA-
The board
Socketsocket AM2
Supported CPUsSempron, Athlon 64, Phenom, Phenom II
Fastest CPUPhenom II X4 970
RAM slots4 × DDR2
AGP4× - 8× ; 1.5V - 0.8V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, -
IDE2 × ATA 133
SATA2 × (150)
USB / Firewire4 × (2.0)
LAN1 × 100 Mb/s
FormatATX (305x200)
Release date2007

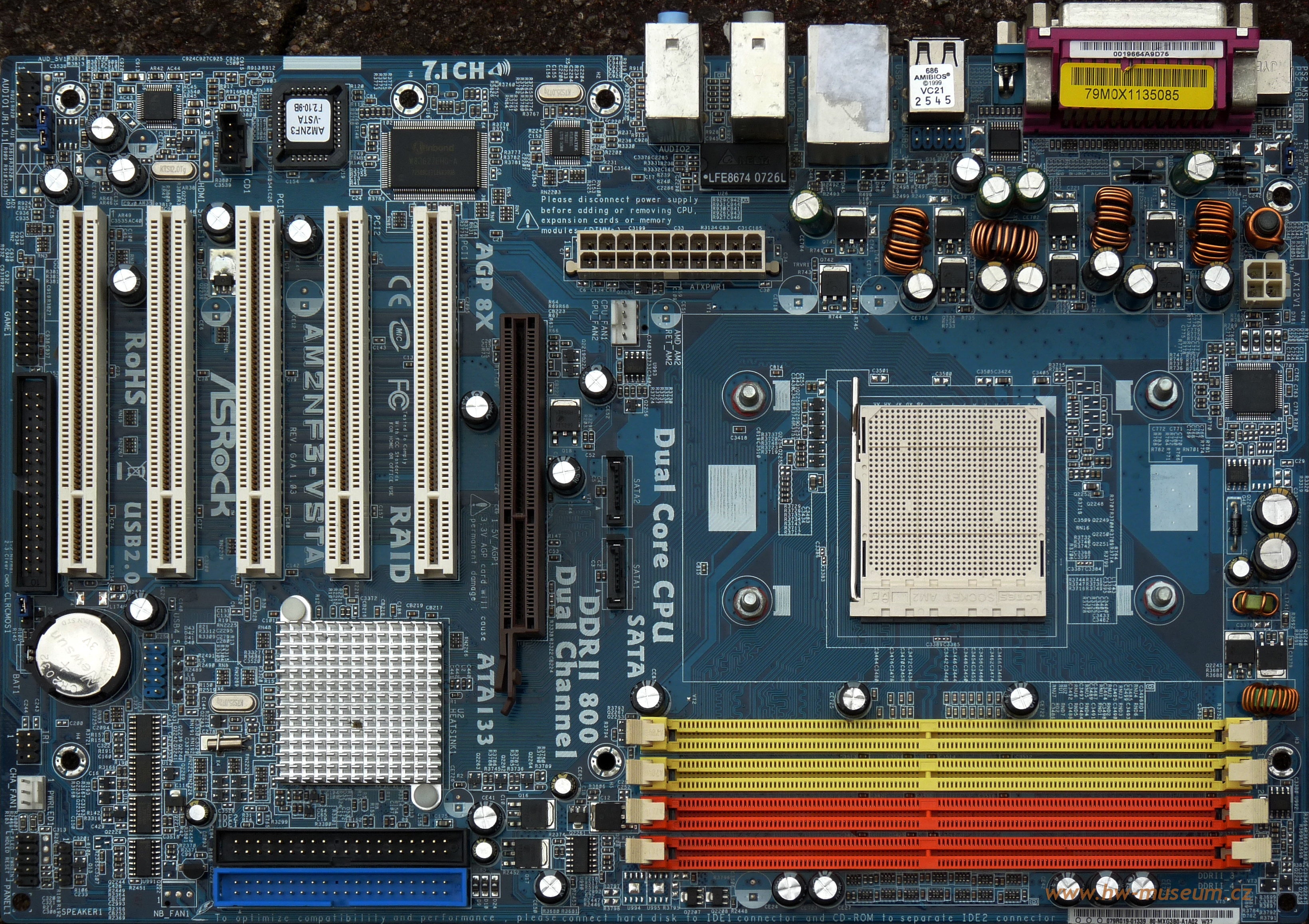

ASRock AM2NF3-VSTA (front side)

ASRock AM2NF3-VSTA (front side)

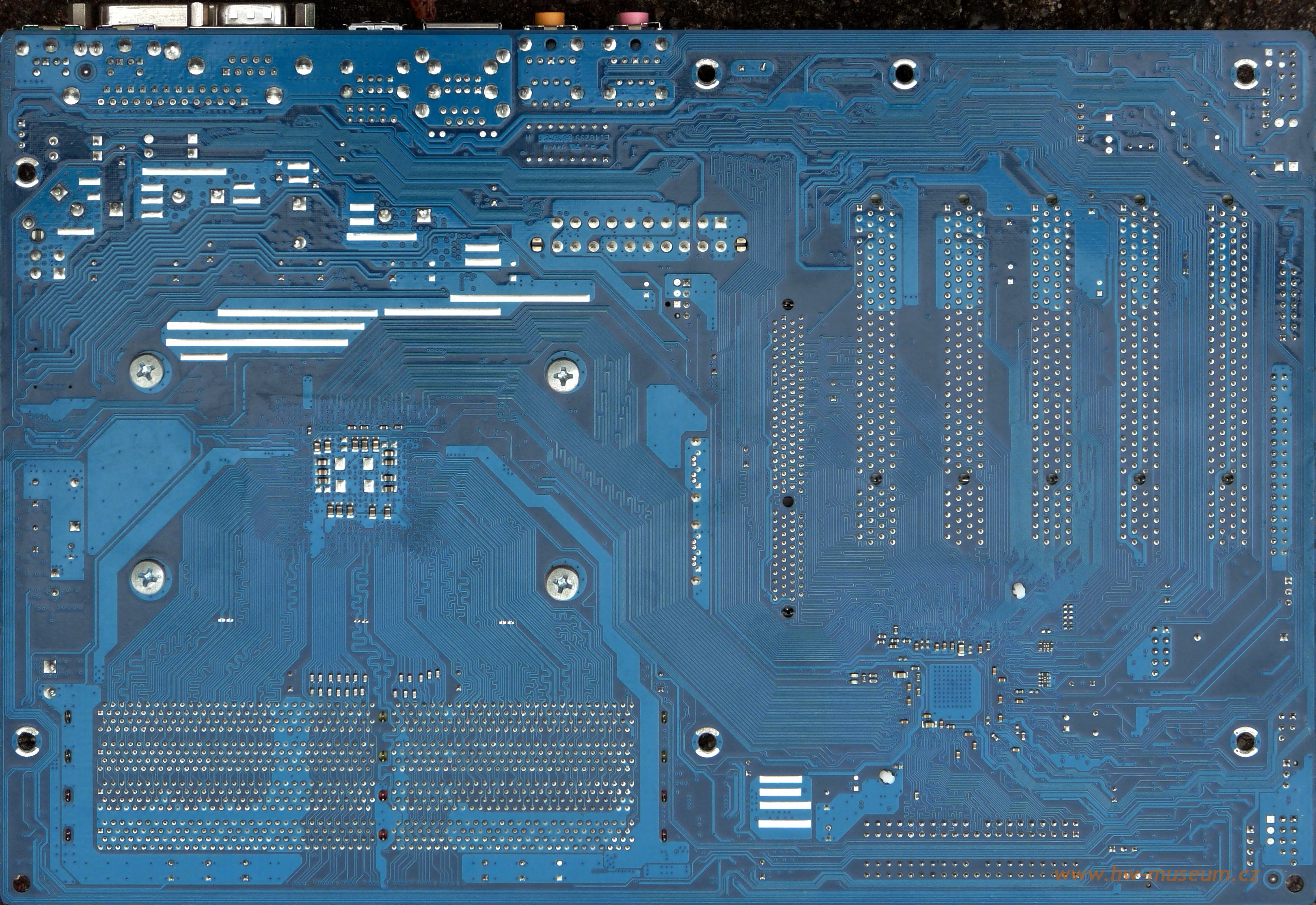

ASRock AM2NF3-VSTA (back side)

ASRock AM2NF3-VSTA (back side)
