Asus P2L97-S

Published: (last update )

Note: Onboard Ultra Wide SCSI controller (40 MB/s)

Chipset
ModelIntel 440LX
Northbridge82443LX
SouthbridgePIIX4
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
RAM type (1)SDR 66 MHz, 64 bit
RAM type (2)-
RAM bandwidth528 MB/s
Maximum RAM384 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP
PCI support2.1
Integrated VGA-
The board
Socketslot 1
Supported CPUsPentium II, Celeron
Fastest CPUCeleron 533
RAM slots3 × SDR
AGP1× - 2× ; 3.3V - 3.3V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 4, 2
IDE2 × ATA 33
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x192)
Release date1997

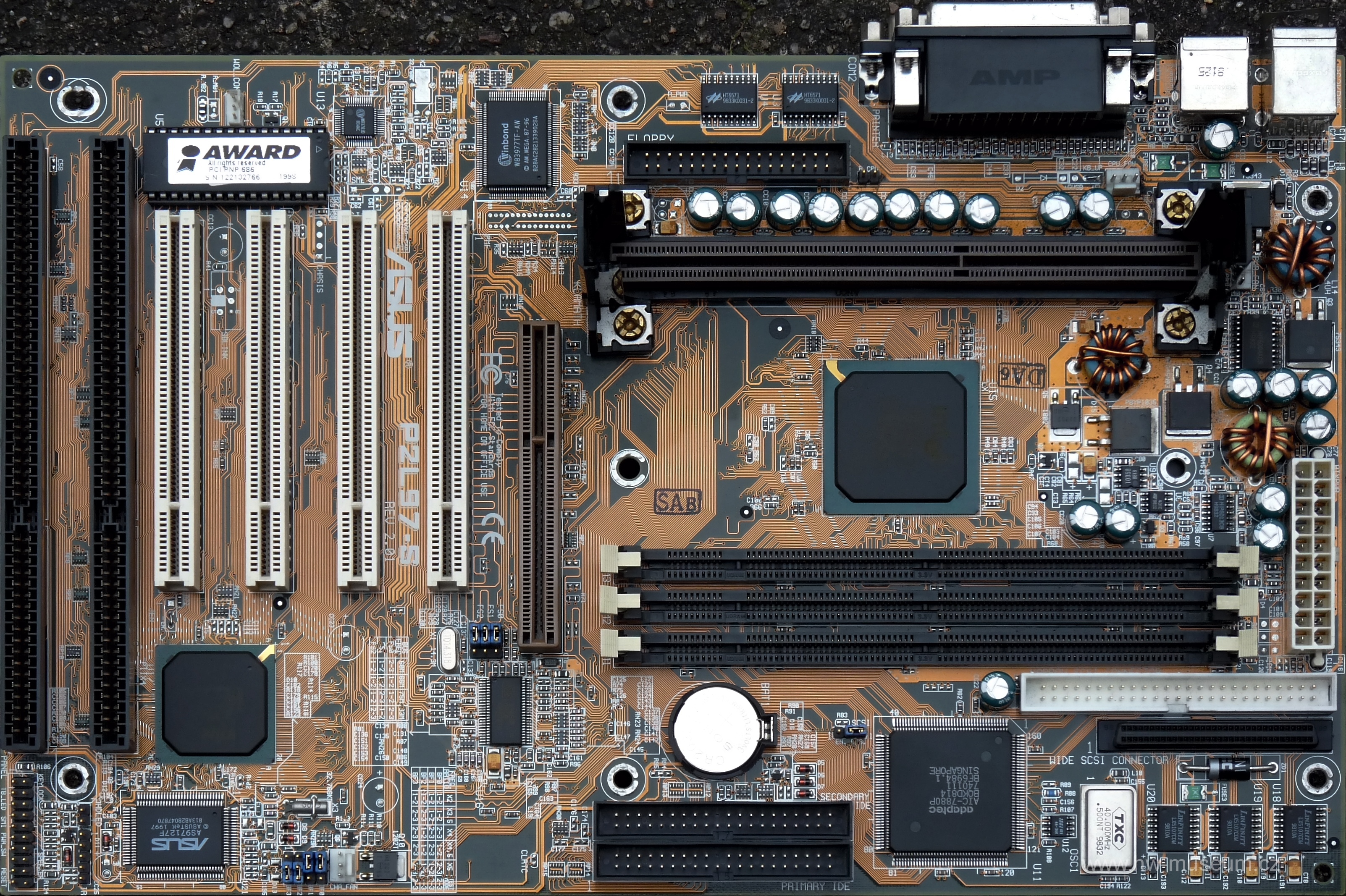

Asus P2L97-S (front side)

Asus P2L97-S (front side)

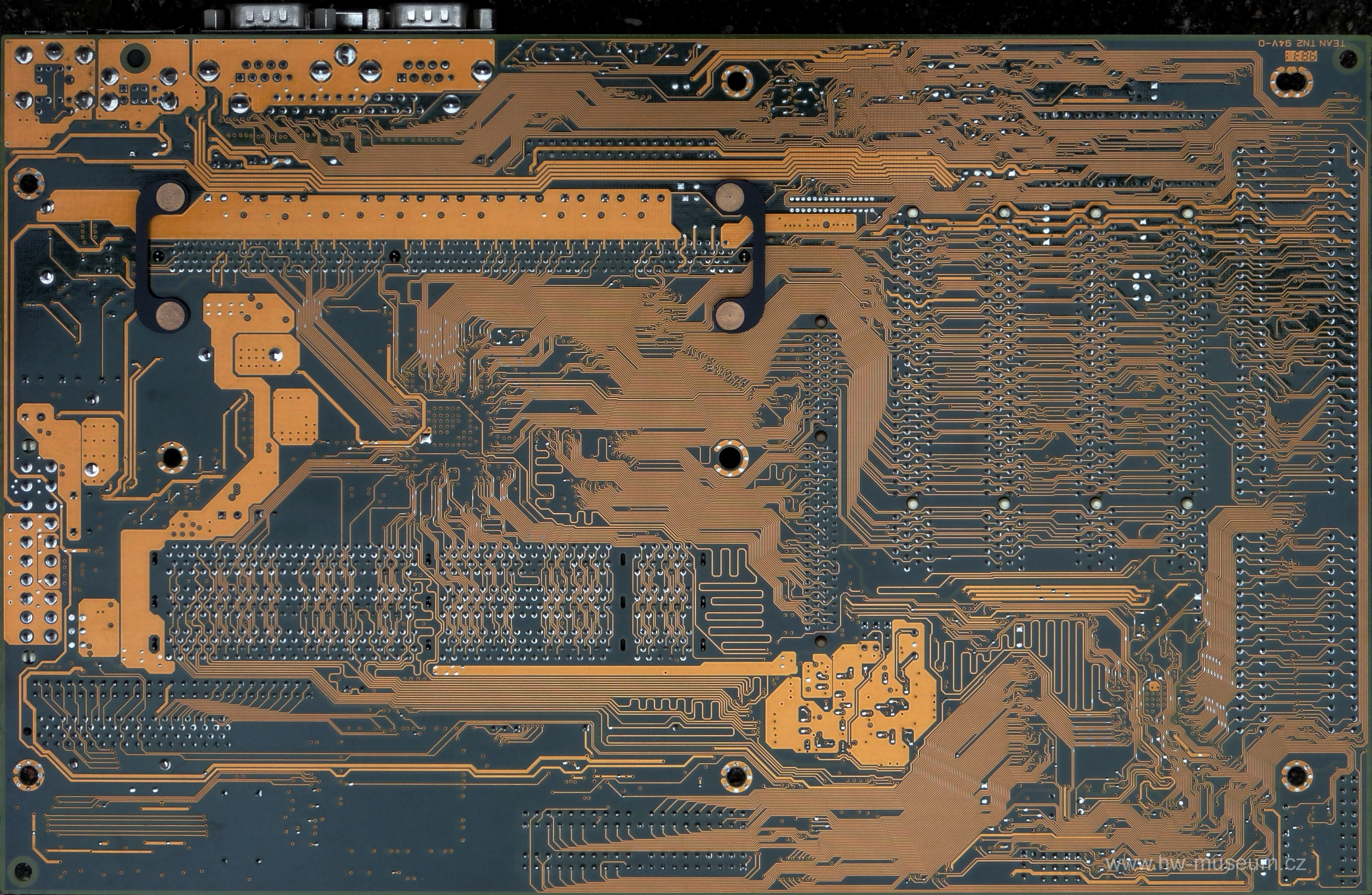

Asus P2L97-S (back side)

Asus P2L97-S (back side)
