Intel Desktop Board VC820

Published: (last update )

Chipset
ModelIntel 820
Northbridge82820
SouthbridgeICH
Bus typeSDR, 133 MHz, 64 bit
Bus bandwith1064 MB/s
RAM type (1)RDRAM 800 MHz, 16 bit
RAM type (2)-
RAM bandwidth1600 MB/s
Maximum RAM1024 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP
PCI support2.2
Integrated VGA-
The board
Socketslot 1
Supported CPUsPentium II/III, Celeron
Fastest CPUPentium III EB 1GHz
RAM slots2 × RDRAM
AGP1× - 4× ; 3.3V - 1.5V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, -
IDE2 × ATA 66
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x202)
Release date1999

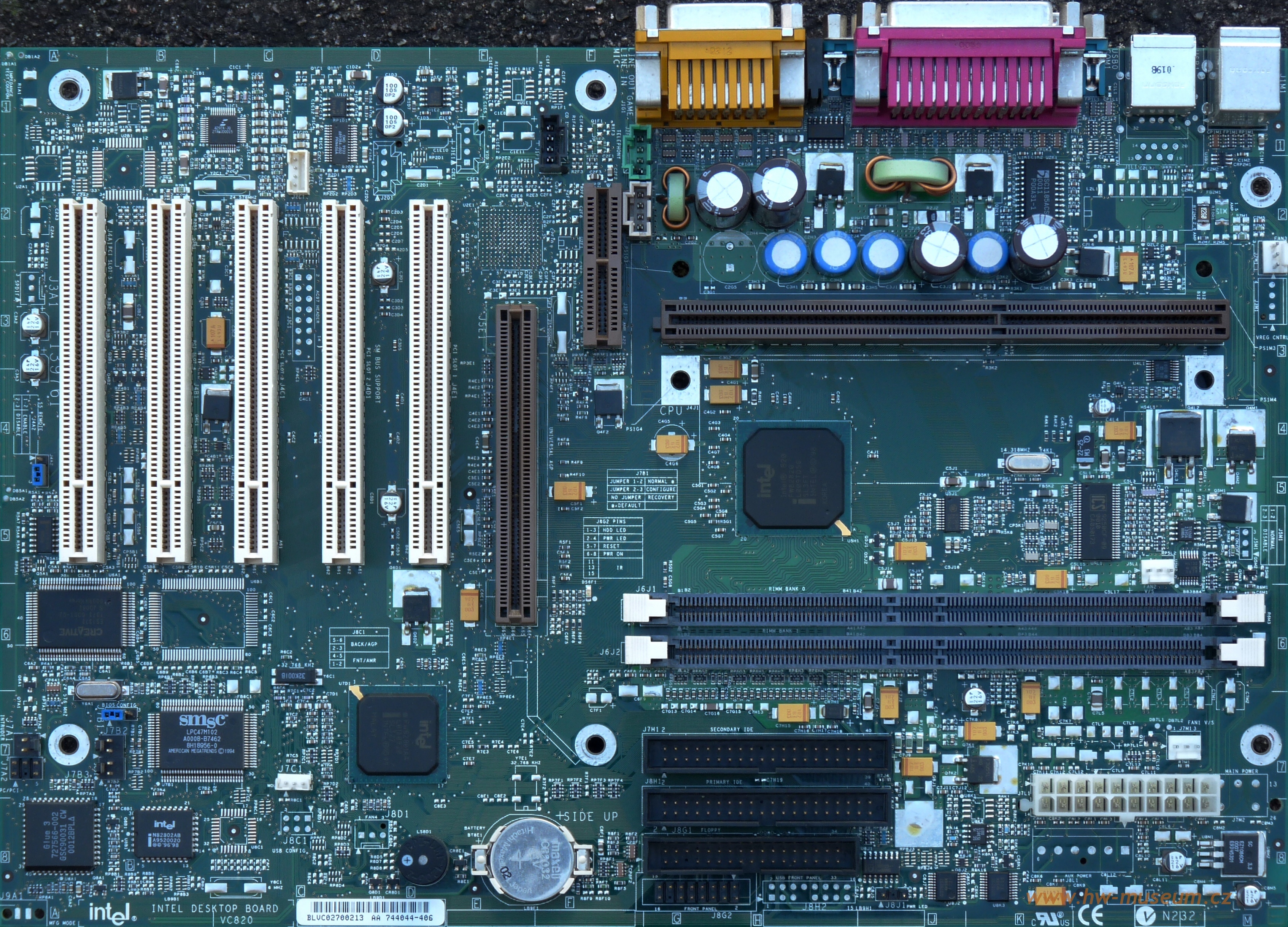

Intel Desktop Board VC820 (front side)

Intel Desktop Board VC820 (front side)

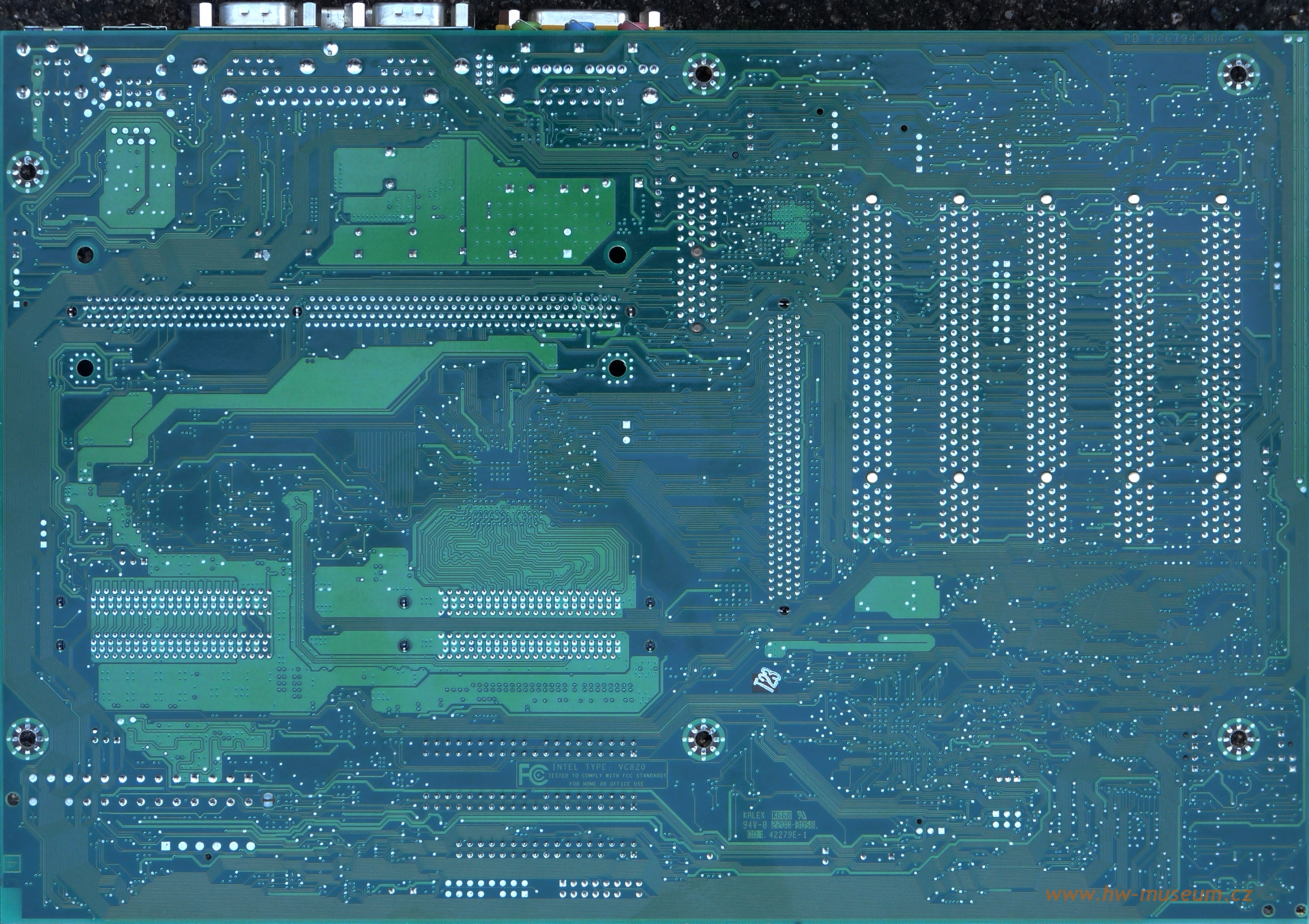

Intel Desktop Board VC820 (back side)

Intel Desktop Board VC820 (back side)
