Intel Xeon 3.2 (2MB L3)

Published: (last update )

Core
Code nameGallatin
Base clock3200 MHz
Turbo full / half / single-
Base multiplier24×
Technology130 nm
Transistors169 milion
Die size237 mm2
Cores / threads1 / 2
SteppingM0
Cache
L1 data cache8 kB
L1 inst. cache12 kB
L2 cache512 kB
L2 cache typeOn-die, full speed
L3 cache2048 kB
L3 cache typeOn-die, full speed
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeQDR, 533 MHz, 64 bit
Bus bandwith4264 MB/s
SocketSocket 604
Package604 pin FC-PGA
Package size42.5 x 42.5 mm
Manufacture date3304
Voltage1.525 V
TDP92 W
Memory controller-
Integrated VGA-
Release date2004

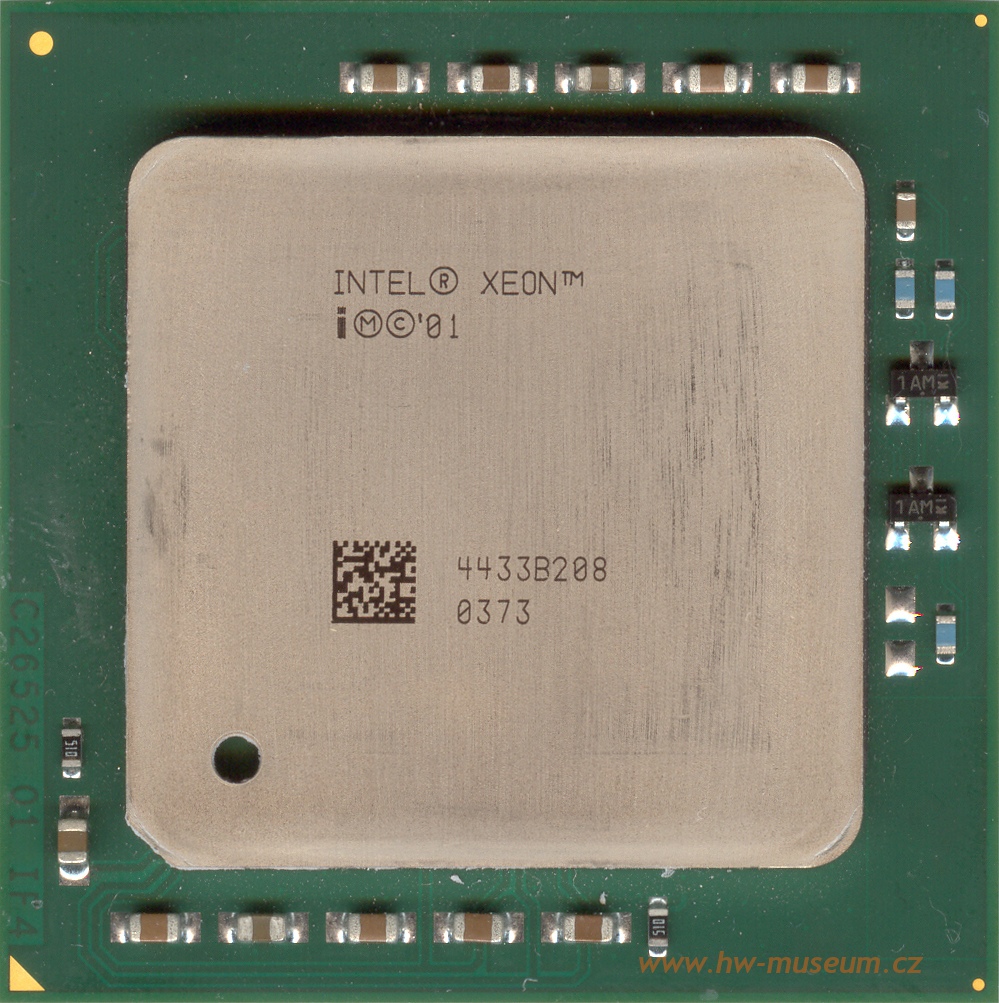

Intel Xeon 3.2 (2MB L3) (front side)

Intel Xeon 3.2 (2MB L3) (front side)

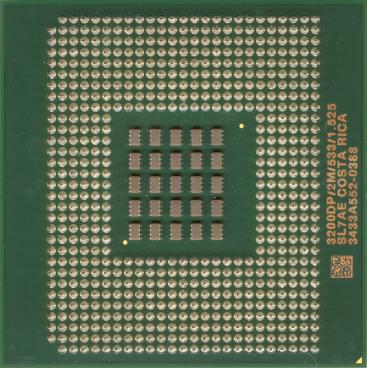

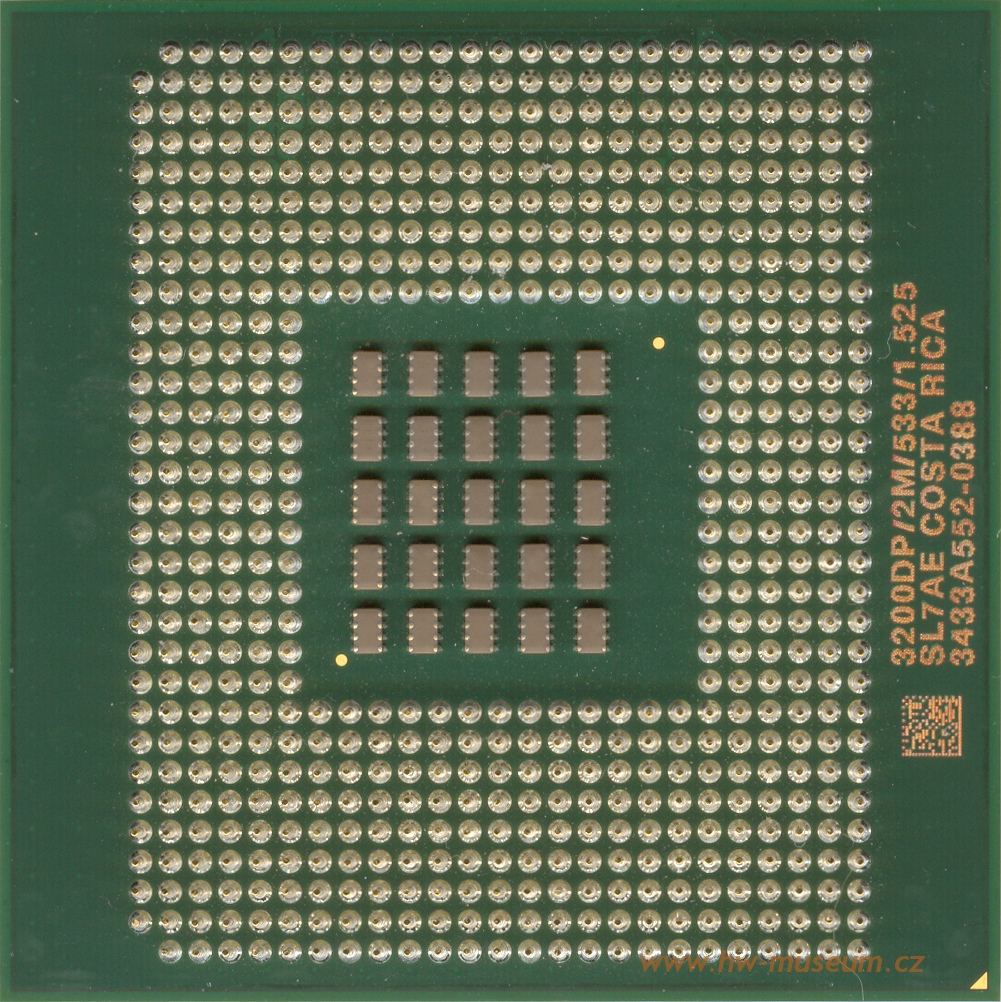

Intel Xeon 3.2 (2MB L3) (back side)

Intel Xeon 3.2 (2MB L3) (back side)
