Intel Xeon 2.4 (ES)

Published: (last update )

Core
Code namePrestonia
Base clock2400 MHz
Turbo full / half / single-
Base multiplier18×
Technology130 nm
Transistors55 milion
Die size131 mm2
Cores / threads1 / 2
SteppingC1
Cache
L1 data cache8 kB
L1 inst. cache12 kB
L2 cache512 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeQDR, 533 MHz, 64 bit
Bus bandwith4264 MB/s
SocketSocket 604
Package604 pin FC-PGA
Package size42.5 x 42.5 mm
Manufacture date2802
Voltage1.5 V
TDP65 W
Memory controller-
Integrated VGA-
Release date2002

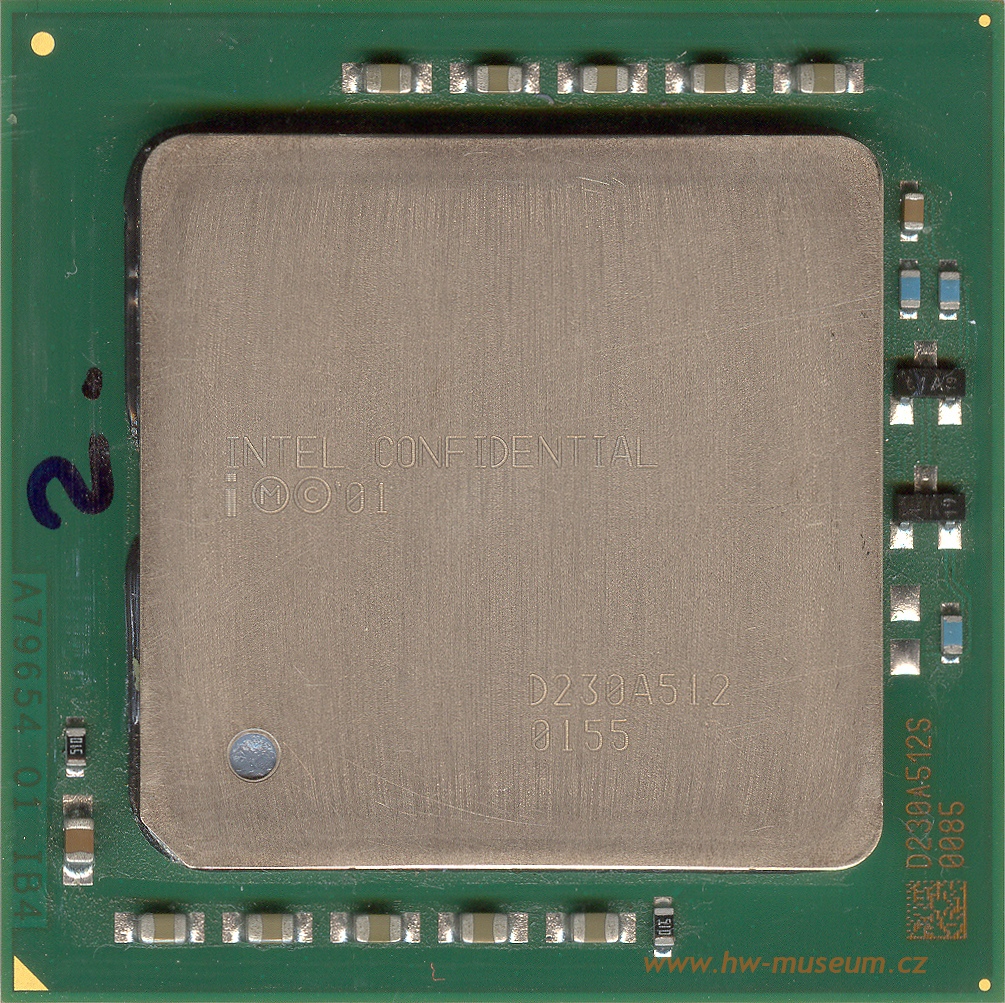

Intel Xeon 2.4 (ES) (front side)

Intel Xeon 2.4 (ES) (front side)

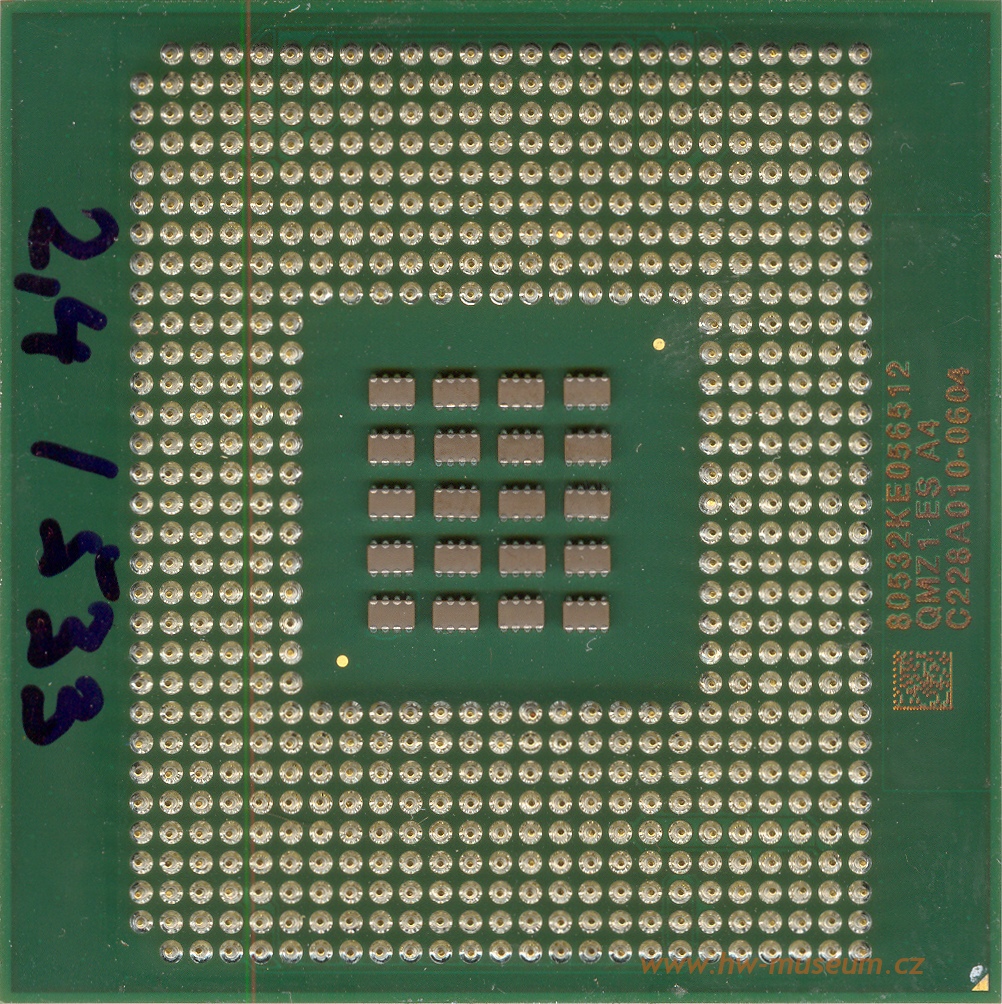

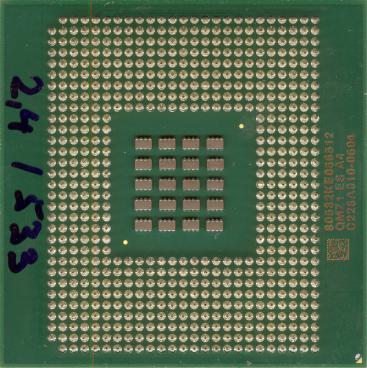

Intel Xeon 2.4 (ES) (back side)

Intel Xeon 2.4 (ES) (back side)
