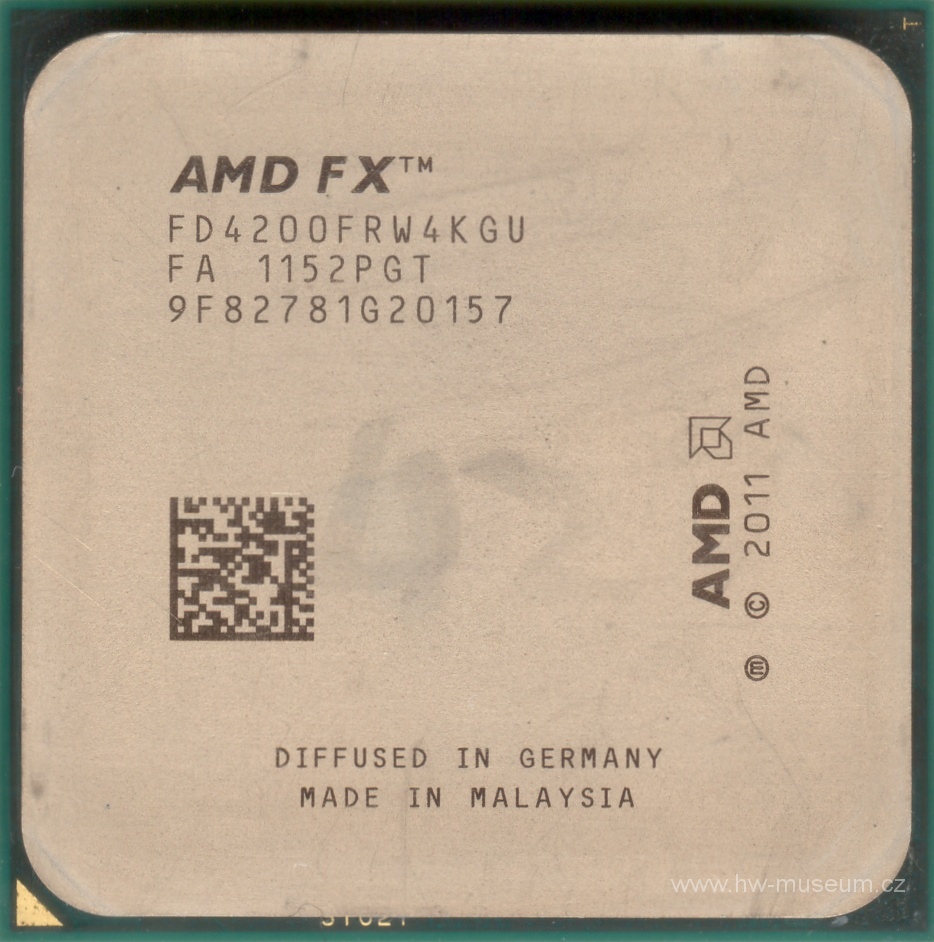

AMD FX-4200
Published: (last update )
Note: This CPU uses rare configuration of 4 cores in 4 modules. Therefore the multicore performance is much faster compared to the usual 2M/4C config.
| Core | |
|---|---|
| Code name | Zambezi |
| Base clock | 3300 MHz |
| Turbo full / half / single | 3600 | 3900 | 3900 MHz |
| Base multiplier | 16.5× |
| Technology | 32 nm |
| Transistors | 1200 million |
| Die size | 315 mm2 |
| Density | 3.81 M / mm2 |
| Cores / threads | 4 / 4 |
| Stepping | OR-B2 |
| Cache | |
| L1 data cache | 4 × 16 kB |
| L1 inst. cache | 4 × 64 kB |
| L2 cache | 4 × 2048 kB |
| L2 cache type | On-die, full speed |
| L3 cache | 8192 kB |
| L3 cache type | On-die, 2000 MHz |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX(+), SSE |
| Extended inst. | SSE2, (S)SSE3 |
| Extended inst. 2 | x86-64, SSE(4.1, 4.2, 4a) |
| Extended inst. 3 | AMD-V, AES-NI, AVX |
| Extended inst. 4 | FMA4, XOP |
| Extended inst. 5 | |
| The CPU | |
| Bus type | HT, 5200 MHz, 32 bit |
| Bus bandwith | 20 800 MB/s |
| Socket | Socket AM3+ |
| Package | 938 pin micro OPGA |
| Package size | 40 x 40 mm |
| Manufacture date | 52nd week of 2011 |
| Voltage | 1.35 V |
| TDP | 125 W |
| Memory controller | DDR3 1866, 128 bit |
| Integrated VGA | - |
| Release date | 2012 |
