AMD A6-5400K

Published: (last update )

Core
Code nameTrinity
Base clock3600 MHz
Turbo full / half / single3800 | 3800 | 3800 MHz
Base multiplier36×
Technology32 nm
Transistors1303 milion
Die size246 mm2
Cores / threads2 / 2
SteppingTN-A1
Cache
L1 data cache2 × 16 kB
L1 inst. cache64 kB
L2 cache1024 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX(+), SSE
Extended inst.SSE2, (S)SSE3
Extended inst. 2x86-64, SSE(4.1, 4.2, 4a)
Extended inst. 3AMD-V, AES-NI, AVX
Extended inst. 4FMA3, FMA4, XOP
The CPU
Bus typeUMI, 100 MHz
Bus bandwith-
SocketSocket FM2
Package904-pin lidded micro-PGA
Package size40 x 40 mm
Manufacture date3812
Voltage1.4 V
TDP65 W
Memory controllerDDR3 1866, 128 bit
Integrated VGARadeon HD 7540D
Release date2012

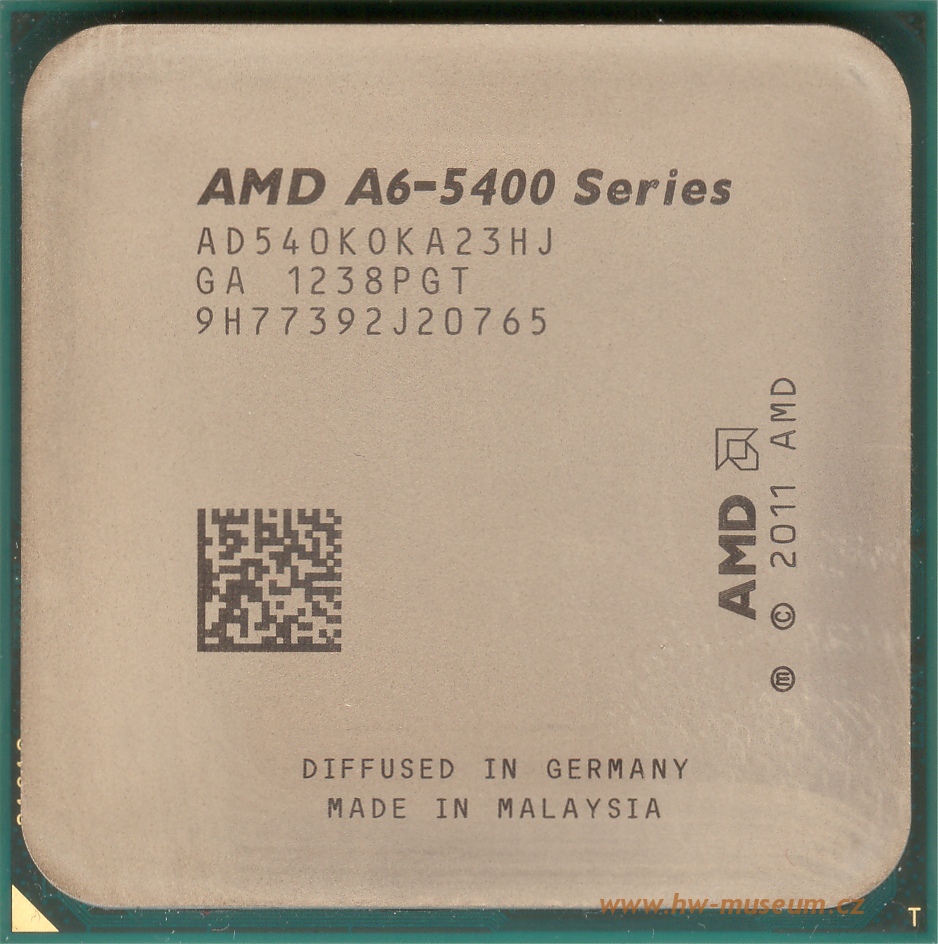

AMD A6-5400K (front side)

AMD A6-5400K (front side)

AMD A6-5400K (back side)

AMD A6-5400K (back side)
