AMD A10-7800 (ES)

Published: (last update )

Core
Code nameKaveri
Base clock3500 MHz
Turbo full / half / single3900 | 3900 | 3900 MHz
Base multiplier35×
Technology28 nm
Transistors2410 million
Die size245 mm2
Density9.84 M / mm2
Cores / threads4 / 4
SteppingKV-A1
Cache
L1 data cache4 × 16 kB
L1 inst. cache2 × 96 kB
L2 cache2 × 2048 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX(+), SSE
Extended inst.SSE2, (S)SSE3
Extended inst. 2x86-64, SSE(4.1, 4.2, 4a)
Extended inst. 3AMD-V, AES-NI, AVX
Extended inst. 4FMA3, FMA4, XOP
Extended inst. 5
The CPU
Bus typeUMI, 100 MHz
Bus bandwith-
SocketSocket FM2+
Package906-pin lidded micro-PGA
Package size40 x 40 mm
Manufacture date25th week of 2013
Voltage1.4 V
TDP65 W
Memory controllerDDR3 2133, 128 bit
Integrated VGARadeon R7 Graphics (512 SP)
Release date2014
AMD A10-7800 (ES) (front side)

AMD A10-7800 (ES) (front side)

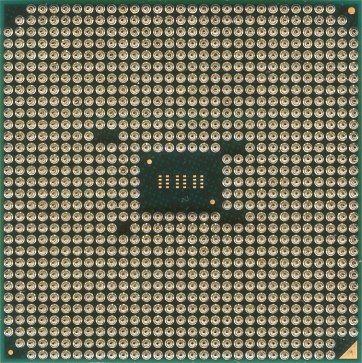

AMD A10-7800 (ES) (back side)

AMD A10-7800 (ES) (back side)
