AMD A6-5350M
Published: (last update )
Note: Die size measured by me. This is the smaller 1M/2C die.
| Core | |
|---|---|
| Code name | Richland (2C) |
| Base clock | 2900 MHz |
| Turbo full / half / single | 3500 | 3500 | 3500 MHz |
| Base multiplier | 29× |
| Technology | 32 nm |
| Transistors | - |
| Die size | 160 mm2 |
| Density | - |
| Cores / threads | 2 / 2 |
| Stepping | RL-A1 |
| Cache | |
| L1 data cache | 2 × 16 kB |
| L1 inst. cache | 64 kB |
| L2 cache | 1024 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX(+), SSE |
| Extended inst. | SSE2, (S)SSE3 |
| Extended inst. 2 | x86-64, SSE(4.1, 4.2, 4a) |
| Extended inst. 3 | AMD-V, AES-NI, AVX |
| Extended inst. 4 | FMA3, FMA4, XOP |
| Extended inst. 5 | |
| The CPU | |
| Bus type | UMI, 100 MHz |
| Bus bandwith | - |
| Socket | Socket FS1r2 |

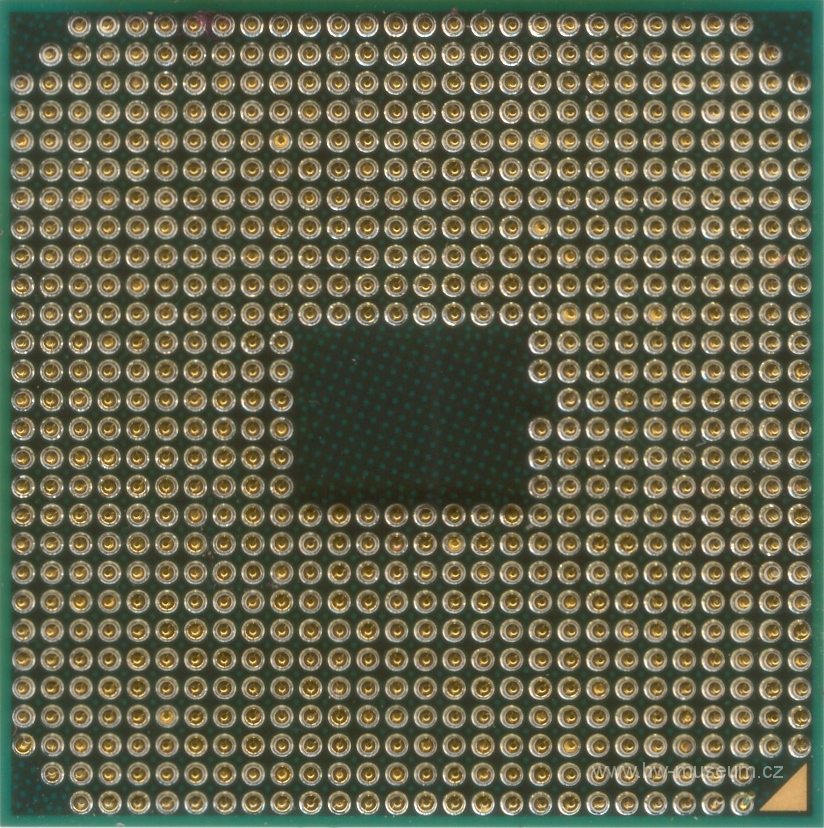

| Package | 722 pin organic lidless micro PGA |
| Package size | 35 x 35 mm |
| Manufacture date | 12th week of 2013 |
| Voltage | 1.3 V |
| TDP | 35 W |
| Memory controller | DDR3 1600, 128 bit |
| Integrated VGA | Radeon HD 8450G |
| Release date | 2013 |
