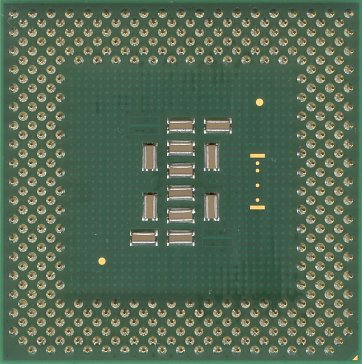

Intel Pentium III 600E
Published: (last update )
Note: This is the final Coppermine stepping cD0. This particular piece seems to be very late production - made in 20th week of 2007!
| Core | |
|---|---|
| Code name | Coppermine |
| Base clock | 600 MHz |
| Turbo full / half / single | - |
| Base multiplier | 6× |
| Technology | 180 nm |
| Transistors | 28 million |
| Die size | 95 mm2 |
| Density | 0.29 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | cD0 |
| Cache | |
| L1 data cache | 16 kB |
| L1 inst. cache | 16 kB |
| L2 cache | 256 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX, SSE |
| Extended inst. | |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | SDR, 100 MHz, 64 bit |
| Bus bandwith | 800 MB/s |
| Socket | Socket 370 |
| Package | 370 pin FC-PGA |
| Package size | 50 x 50 mm |
| Manufacture date | 20th week of 2007 |
| Voltage | 1.75 V |
| TDP | 20 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 1999 |
