Intel Pentium M 1.4 GHz

Published: (last update )

Core
Code nameBanias
Base clock1400 MHz
Turbo full / half / single-
Base multiplier14×
Technology130 nm
Transistors77 million
Die size83 mm2
Density0.93 M / mm2
Cores / threads1 / 1
SteppingB1
Cache
L1 data cache32 kB
L1 inst. cache32 kB
L2 cache1024 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeQDR, 400 MHz, 64 bit
Bus bandwith3 200 MB/s
SocketSocket 479
Package478 pin Micro FCPGA
Package size35 x 35 mm
Manufacture date8th week of 2004
Voltage1.5 V
TDP22 W
Memory controller-
Integrated VGA-
Release date2003

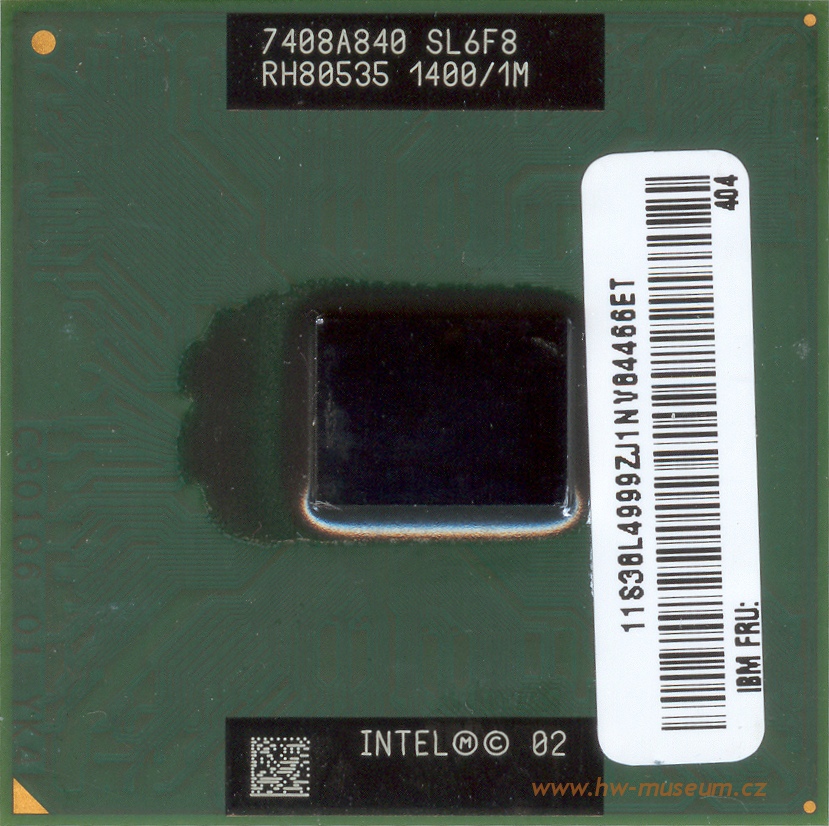

Intel Pentium M 1.4 GHz (front side)

Intel Pentium M 1.4 GHz (front side)

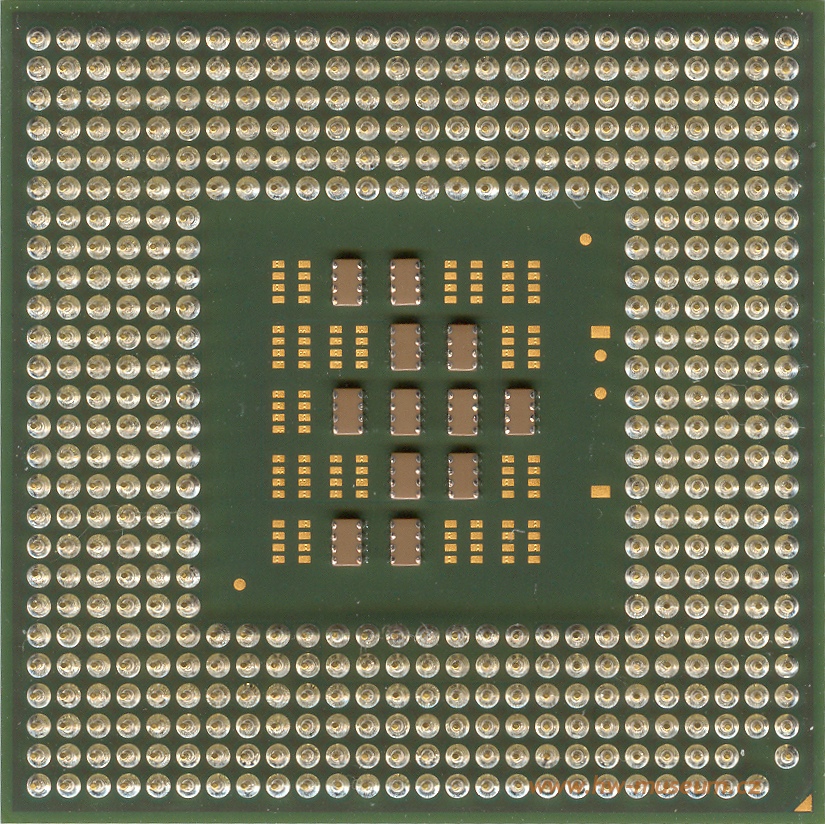

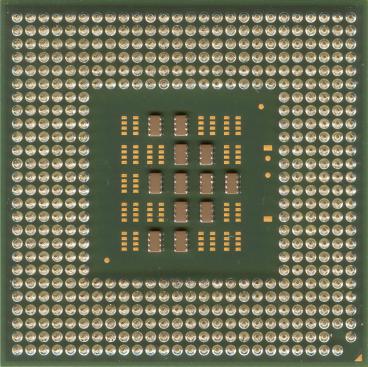

Intel Pentium M 1.4 GHz (back side)

Intel Pentium M 1.4 GHz (back side)
