Intel Xeon MP 2.8 (Gallatin)

Published: (last update )

Core
Code nameGallatin (2 MB L3)
Base clock2800 MHz
Turbo full / half / single-
Base multiplier28×
Technology130 nm
Transistors169 million
Die size237 mm2
Density0.71 M / mm2
Cores / threads1 / 2
SteppingB1
Cache
L1 data cache8 kB
L1 inst. cache12 kB
L2 cache512 kB
L2 cache typeOn-die, full speed
L3 cache2048 kB
L3 cache typeOn-die, full speed
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeQDR, 400 MHz, 64 bit
Bus bandwith3 200 MB/s
SocketSocket 603
PackageFC-BGA package mounted on 603-pin interposer
Package size53 x 53 mm
Manufacture date31st week of 2003
Voltage1.475 V
TDP72 W
Memory controller-
Integrated VGA-
Release date2003
Intel Xeon MP 2.8 (Gallatin) (front side)

Intel Xeon MP 2.8 (Gallatin) (front side)

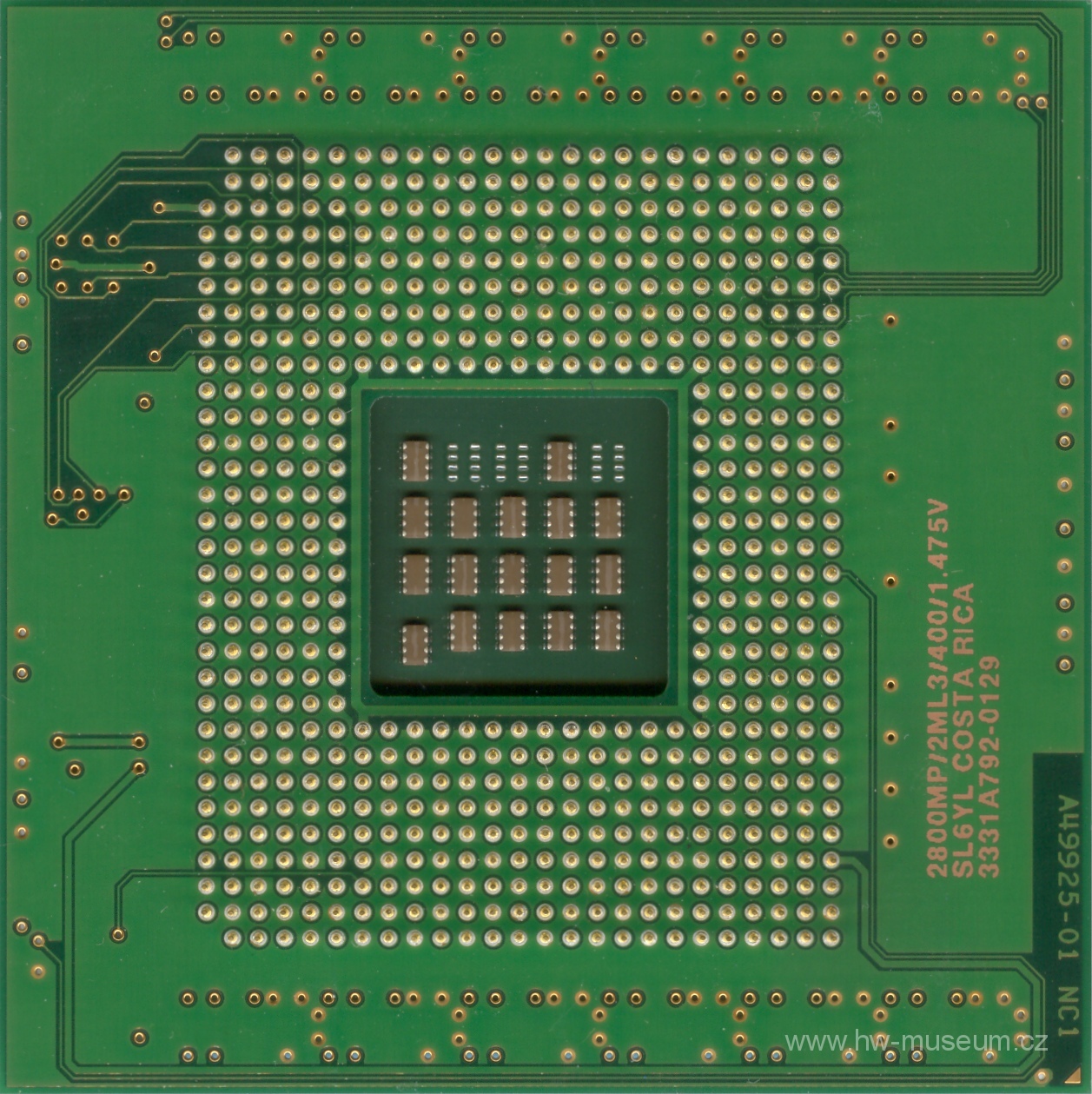

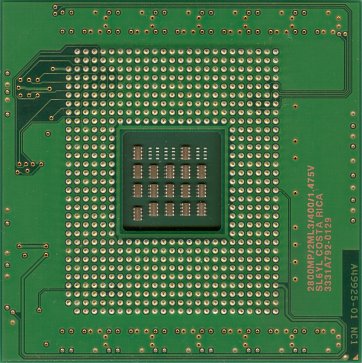

Intel Xeon MP 2.8 (Gallatin) (back side)

Intel Xeon MP 2.8 (Gallatin) (back side)
