Intel Xeon MP 1.5 (Gallatin)
Published: (last update )
| Core | |
|---|---|
| Code name | Gallatin (2 MB L3) |
| Base clock | 1500 MHz |
| Turbo full / half / single | - |
| Base multiplier | 15× |
| Technology | 130 nm |
| Transistors | 169 million |
| Die size | 237 mm2 |
| Density | 0.71 M / mm2 |
| Cores / threads | 1 / 2 |
| Stepping | A0 |
| Cache | |
| L1 data cache | 8 kB |
| L1 inst. cache | 12 kB |
| L2 cache | 512 kB |
| L2 cache type | On-die, full speed |
| L3 cache | 1024 kB |
| L3 cache type | On-die, full speed |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX, SSE |
| Extended inst. | SSE2 |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | QDR, 400 MHz, 64 bit |
| Bus bandwith | 3 200 MB/s |
| Socket | Socket 603 |
| Package | FC-BGA package mounted on 603-pin interposer |
| Package size | 53 x 53 mm |
| Manufacture date | 2nd week of 2003 |
| Voltage | 1.475 V |
| TDP | 48 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 2002 |

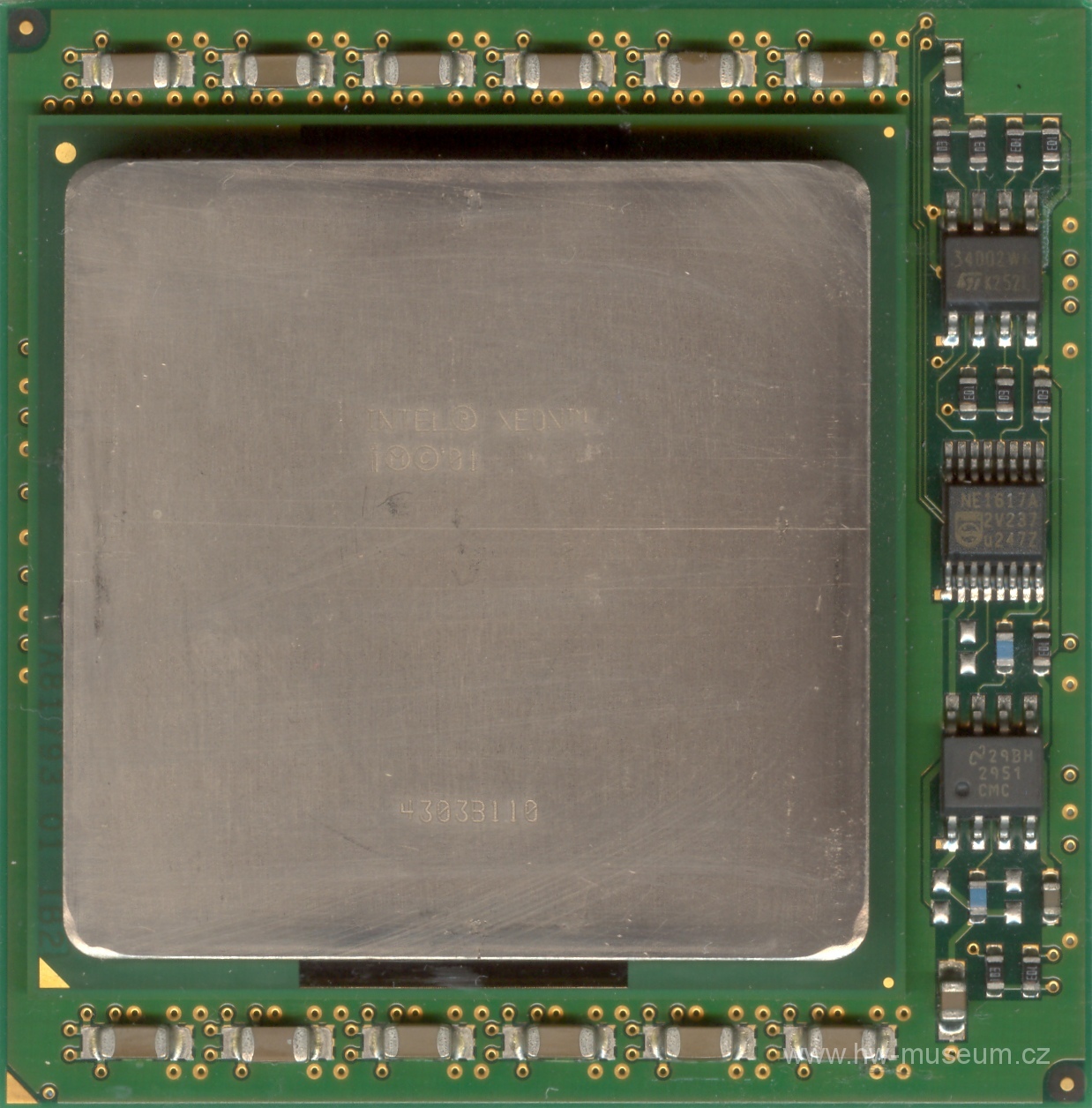

_F.jpg "Click to enlarge")

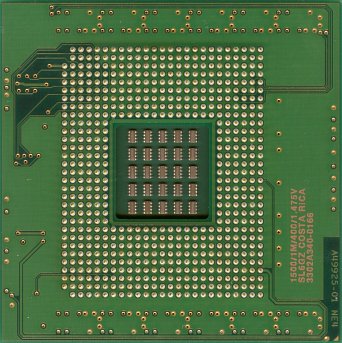

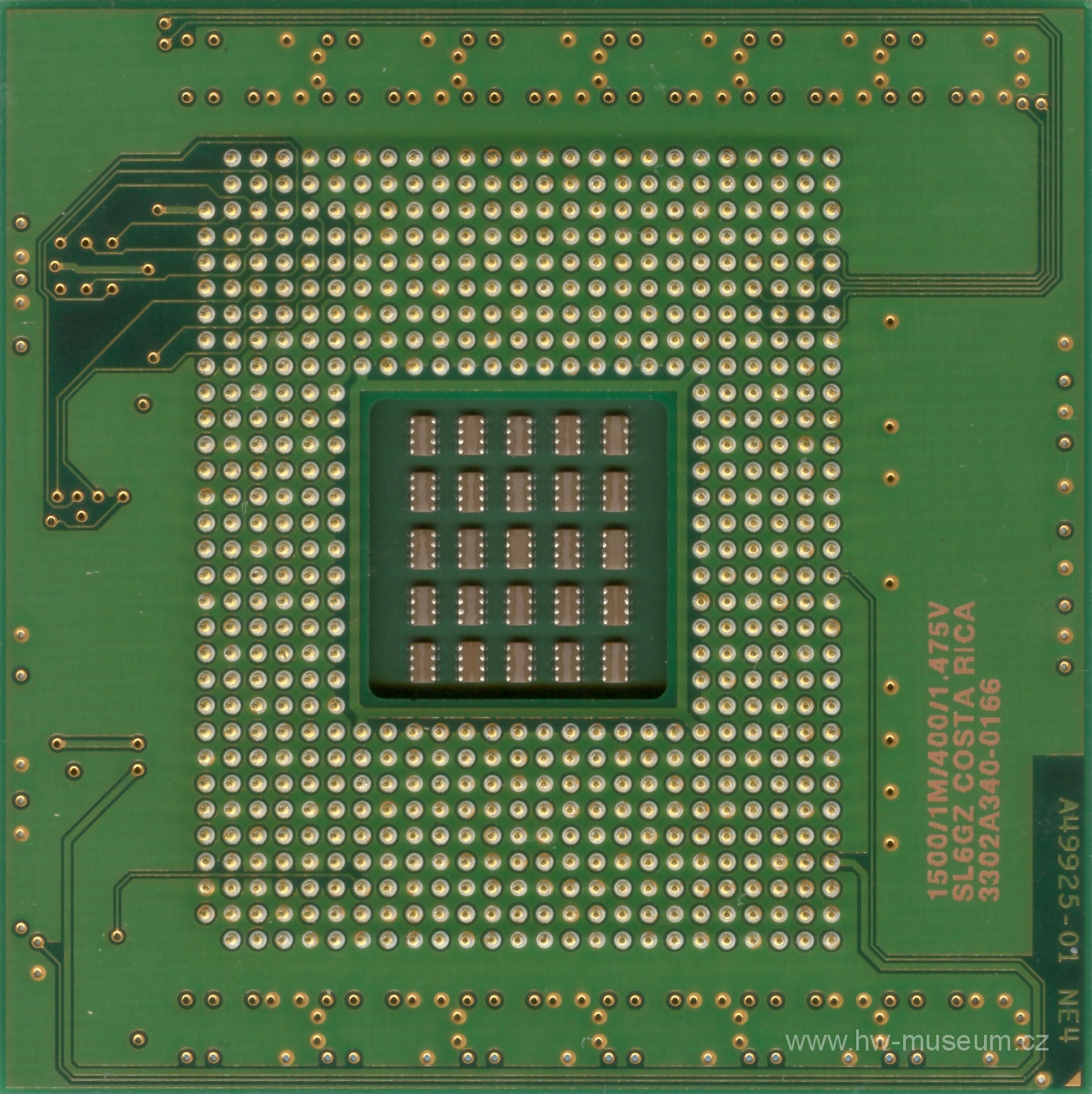

_B.jpg "Click to enlarge")
