Intel Pentium III Mobile module 500 MHz

Published: (last update )

Note: The MMC-2 module contains CPU and i440BX north bridge. Not tested, possibly defective.

Core
Code nameCoppermine
Base clock500 MHz
Turbo full / half / single-
Base multiplier
Technology180 nm
Transistors28 milion
Die size105 mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache16 kB
L1 inst. cache16 kB
L2 cache256 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeSDR, 100 MHz, 64 bit
Bus bandwith800 MB/s
SocketSocket MMC-2
Package400-pin Mobile Module Connector 2
Package size102 x 64 mm
Manufacture date4299
Voltage1.6 V
TDP16.8 W
Memory controller-
Integrated VGA-
Release date1999

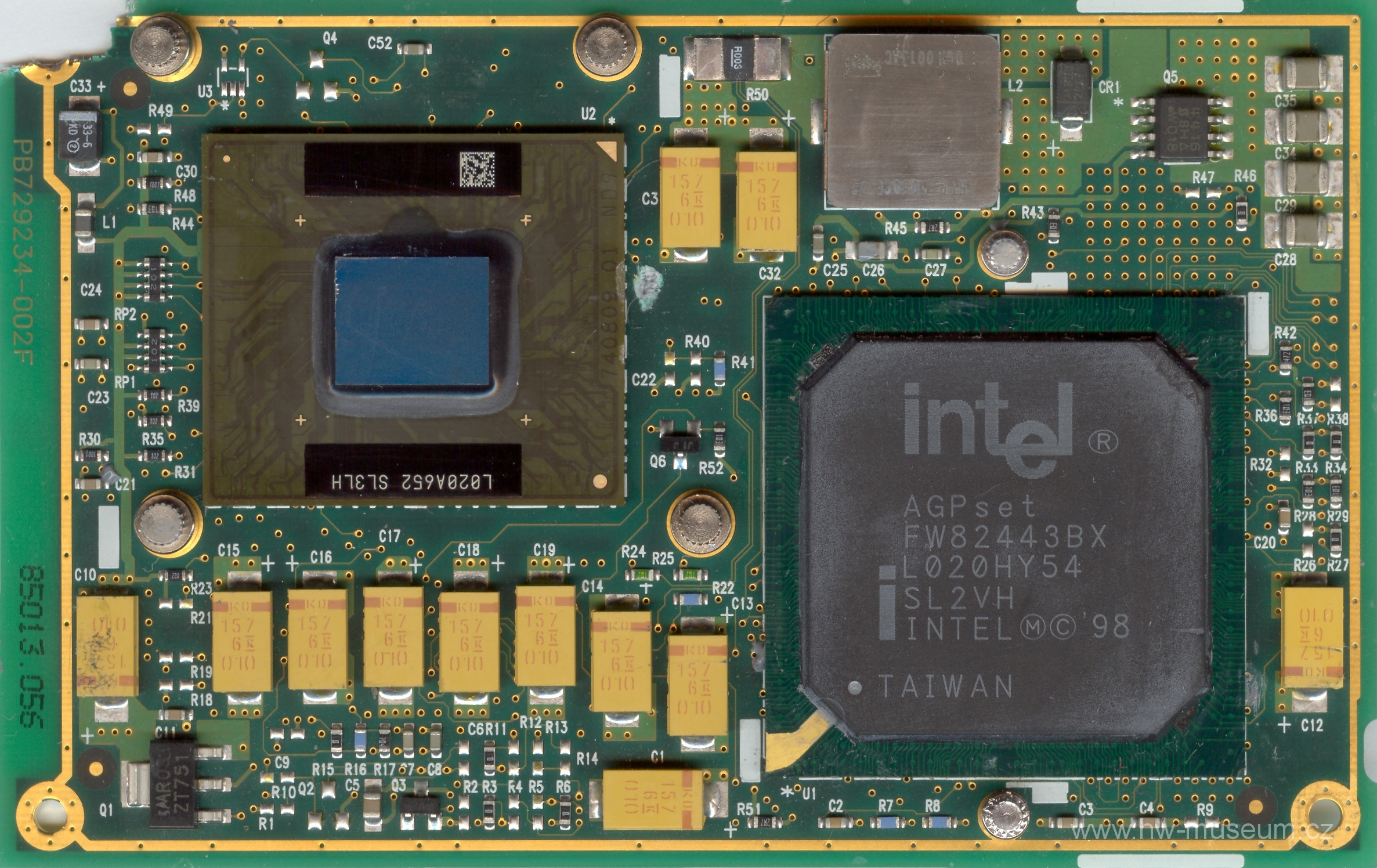

Intel Pentium III Mobile module 500 MHz (front side)

Intel Pentium III Mobile module 500 MHz (front side)

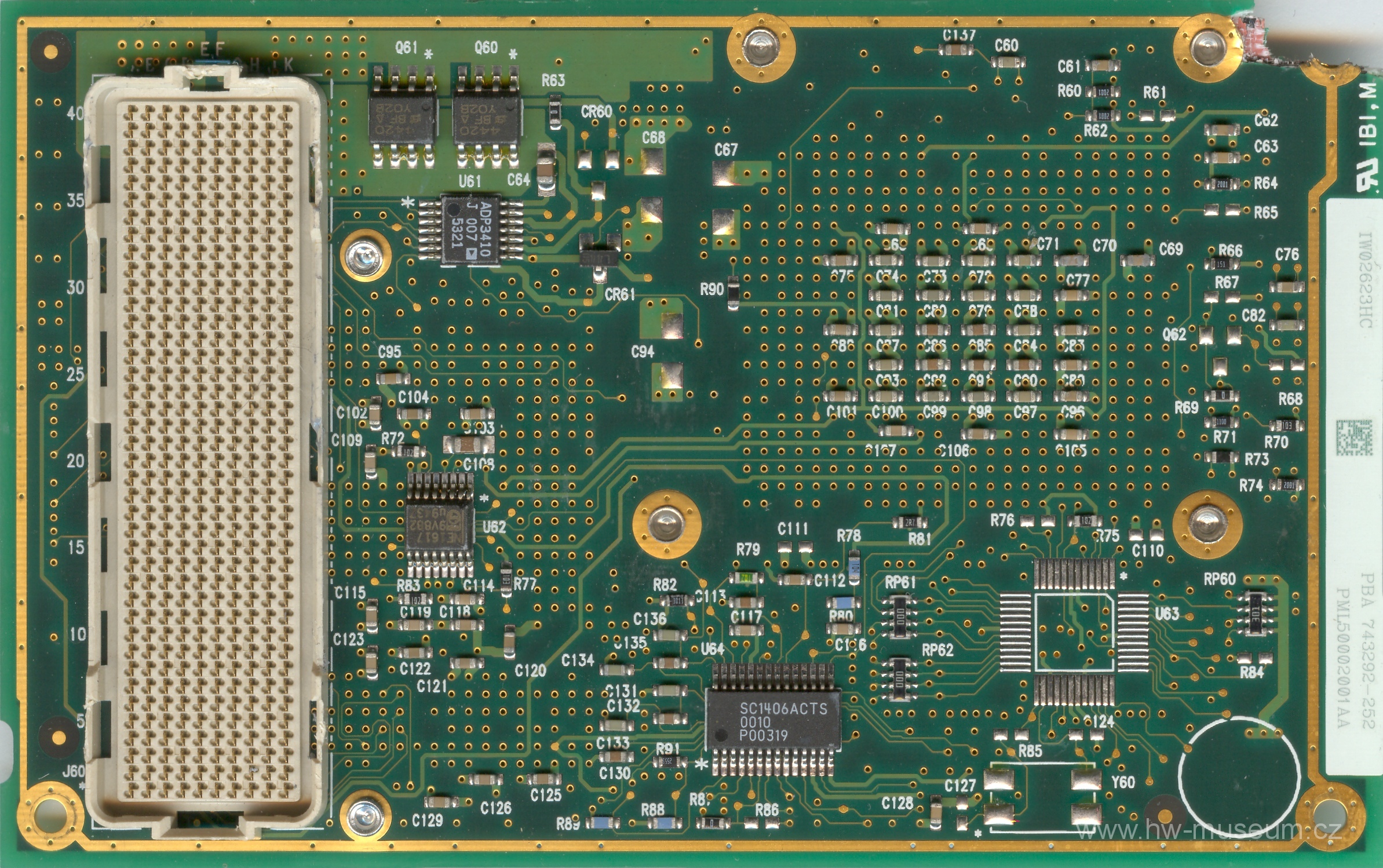

Intel Pentium III Mobile module 500 MHz (back side)

Intel Pentium III Mobile module 500 MHz (back side)
