Intel Pentium II Mobile module 333 MHz

Published: (last update )

Note: The MMC-2 module contains CPU and i440BX north bridge. Not tested, possibly defective.

Core
Code nameDixon (250 nm)
Base clock333 MHz
Turbo full / half / single-
Base multiplier
Technology250 nm
Transistors27.4 million
Die size180 mm2
Density0.15 M / mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache16 kB
L1 inst. cache16 kB
L2 cache256 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
SocketSocket MMC-2
Package400-pin Mobile Module Connector 2
Package size102 x 64 mm
Manufacture date28th week of 1999
Voltage1.6 V
TDP11.8 W
Memory controller-
Integrated VGA-
Release date1999

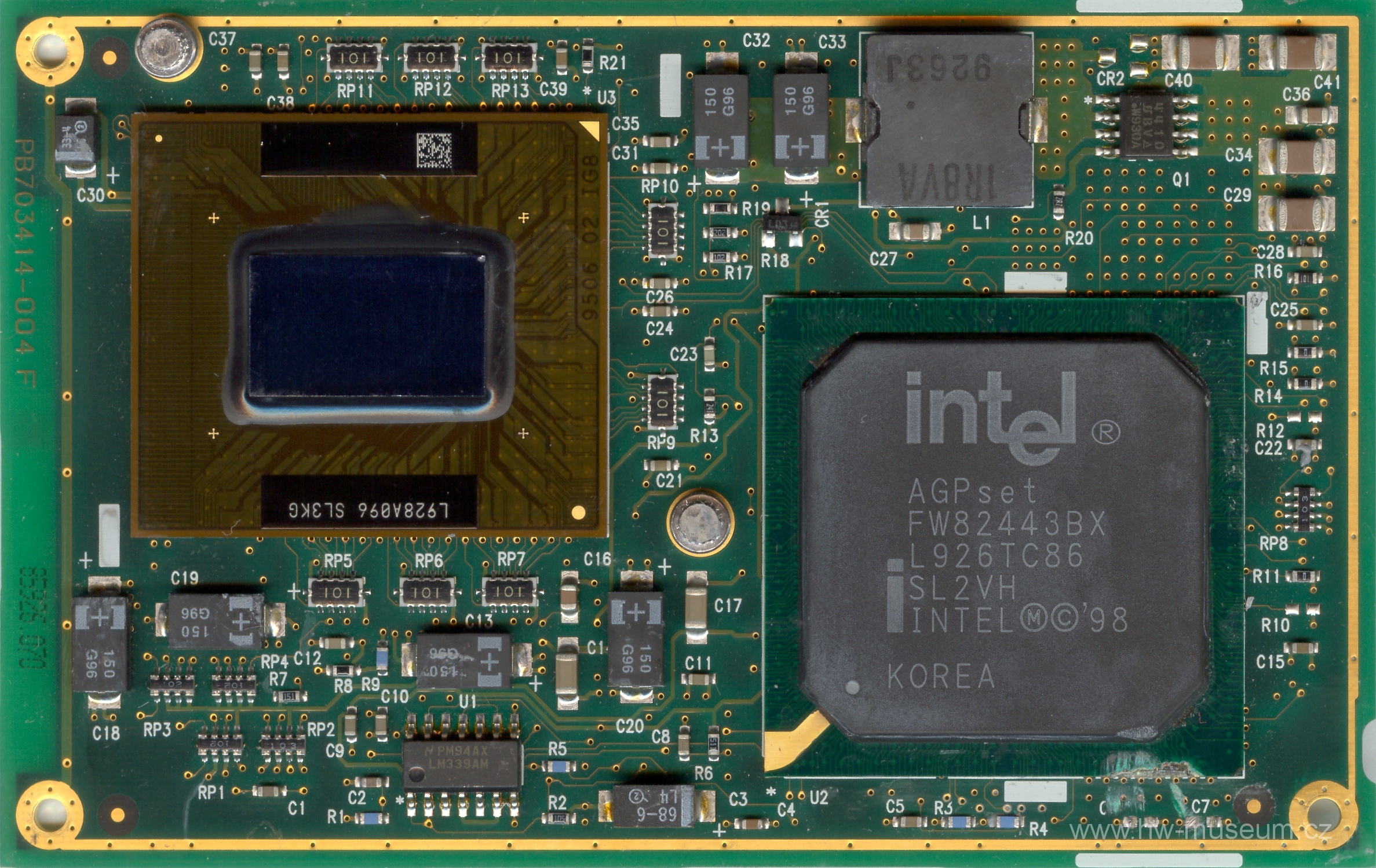

Intel Pentium II Mobile module 333 MHz (front side)

Intel Pentium II Mobile module 333 MHz (front side)

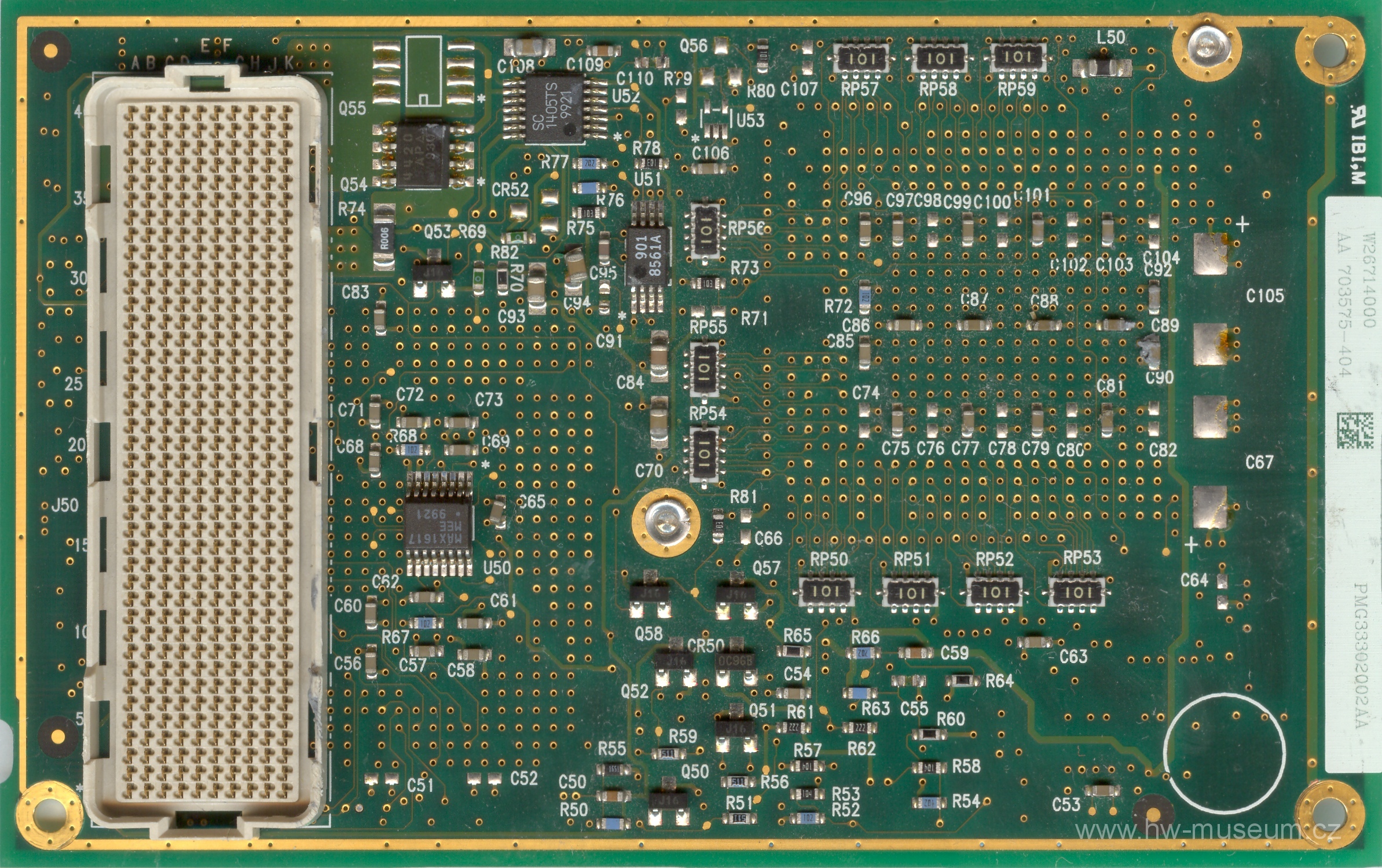

Intel Pentium II Mobile module 333 MHz (back side)

Intel Pentium II Mobile module 333 MHz (back side)
