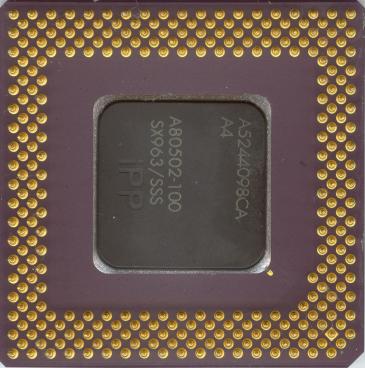

Intel Pentium 100
Published: (last update )
| Core | |
|---|---|
| Code name | P54C (600 nm) |
| Base clock | 100 MHz |
| Turbo full / half / single | - |
| Base multiplier | 1.5× |
| Technology | 600 nm |
| Transistors | 3.3 million |
| Die size | 163 mm2 |
| Density | 0.020 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | - |
| Cache | |
| L1 data cache | 8 kB |
| L1 inst. cache | 8 kB |
| L2 cache | - |
| L2 cache type | - |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87 |
| Extended inst. | |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | SDR, 66 MHz, 64 bit |
| Bus bandwith | 528 MB/s |
| Socket | Socket 5 |
| Package | 296 pin Ceramic PGA |
| Package size | 50 x 50 mm |
| Manufacture date | 37th week of 1995 |
| Voltage | 3.3 V |
| TDP | 8 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 1994 |
