Intel Pentium 166 (PPGA)

Published: (last update )

Core
Code nameP54CS (350 nm)
Base clock166 MHz
Turbo full / half / single-
Base multiplier2.5×
Technology350 nm
Transistors3.3 million
Die size83 mm2
Density0.040 M / mm2
Cores / threads1 / 1
SteppingcC0
Cache
L1 data cache8 kB
L1 inst. cache8 kB
L2 cache-
L2 cache type-
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
SocketSocket 5
Package296 pin Plastic PGA
Package size50 x 50 mm
Manufacture date13th week of 1997
Voltage3.3 V
TDP15 W
Memory controller-
Integrated VGA-
Release date1996

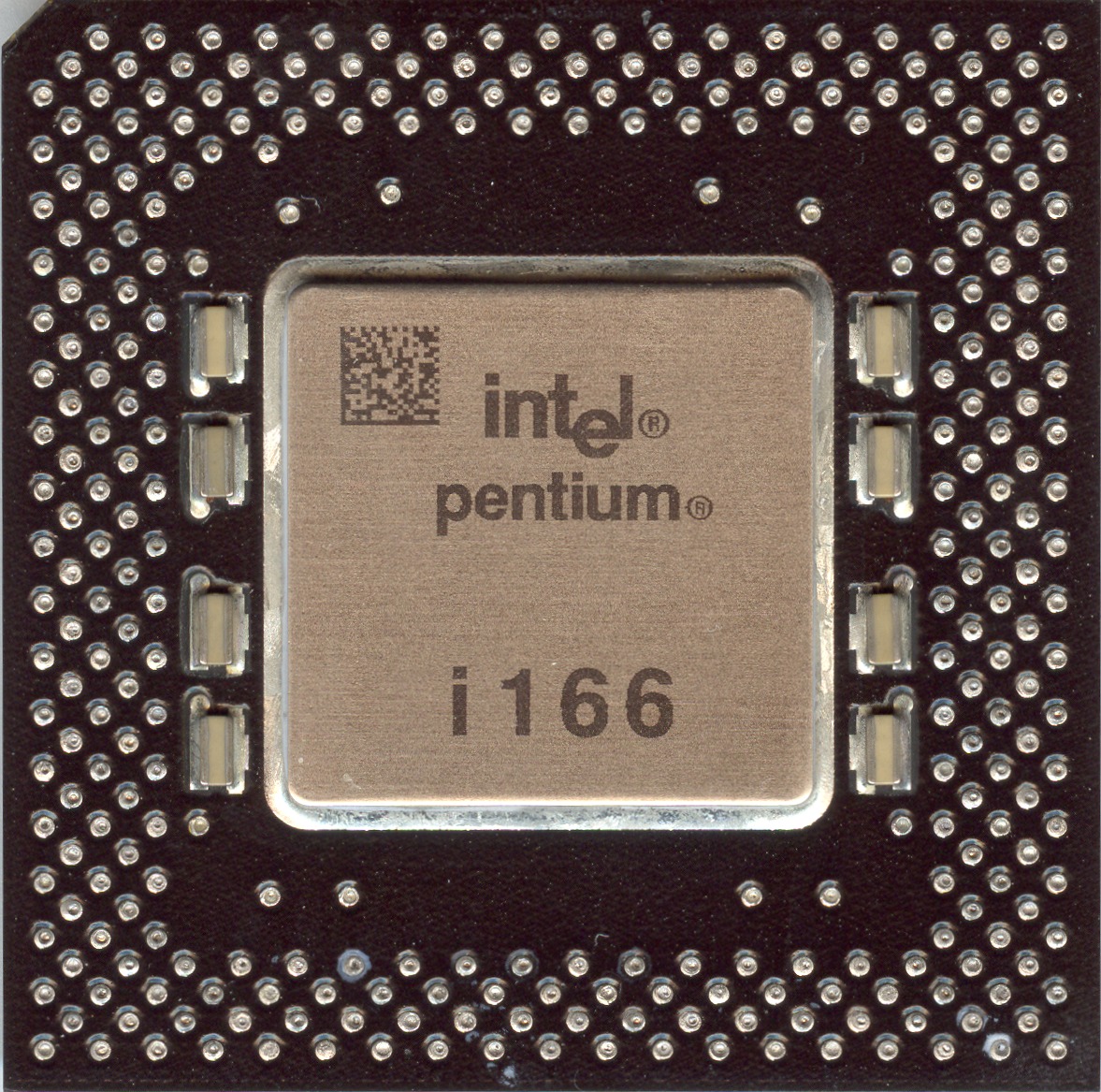

Intel Pentium 166 (PPGA) (front side)

Intel Pentium 166 (PPGA) (front side)

Intel Pentium 166 (PPGA) (back side)

Intel Pentium 166 (PPGA) (back side)
