Intel Pentium 75

Published: (last update )

Core
Code nameP54C (600 nm)
Base clock75 MHz
Turbo full / half / single-
Base multiplier1.5×
Technology600 nm
Transistors3.3 million
Die size163 mm2
Density0.020 M / mm2
Cores / threads1 / 1
SteppingB5
Cache
L1 data cache8 kB
L1 inst. cache8 kB
L2 cache-
L2 cache type-
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 50 MHz, 64 bit
Bus bandwith400 MB/s
SocketSocket 5
Package296 pin Ceramic PGA
Package size50 x 50 mm
Manufacture date52nd week of 1994
Voltage3.3 V
TDP8 W
Memory controller-
Integrated VGA-
Release date1994

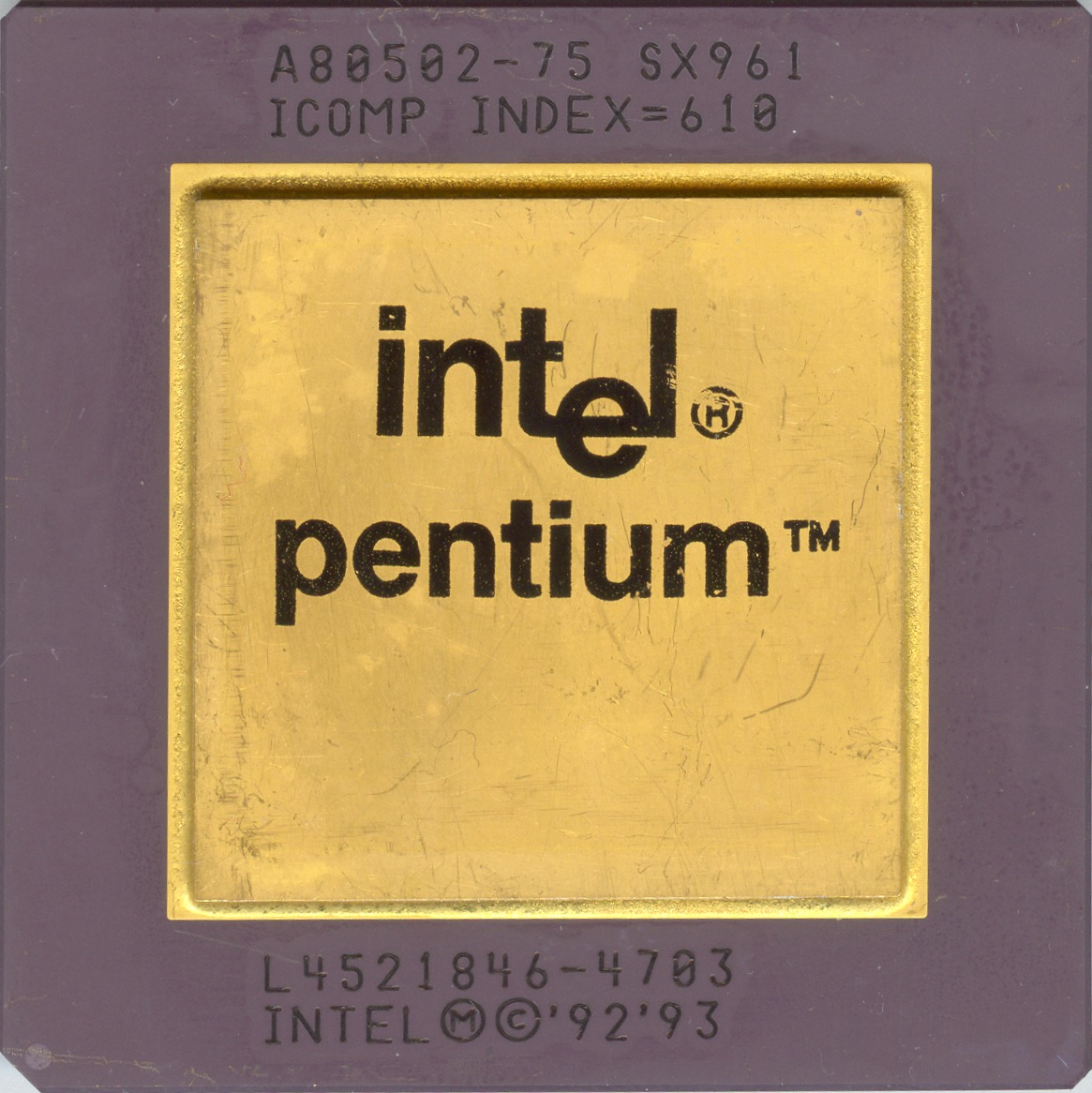

Intel Pentium 75 (front side)

Intel Pentium 75 (front side)

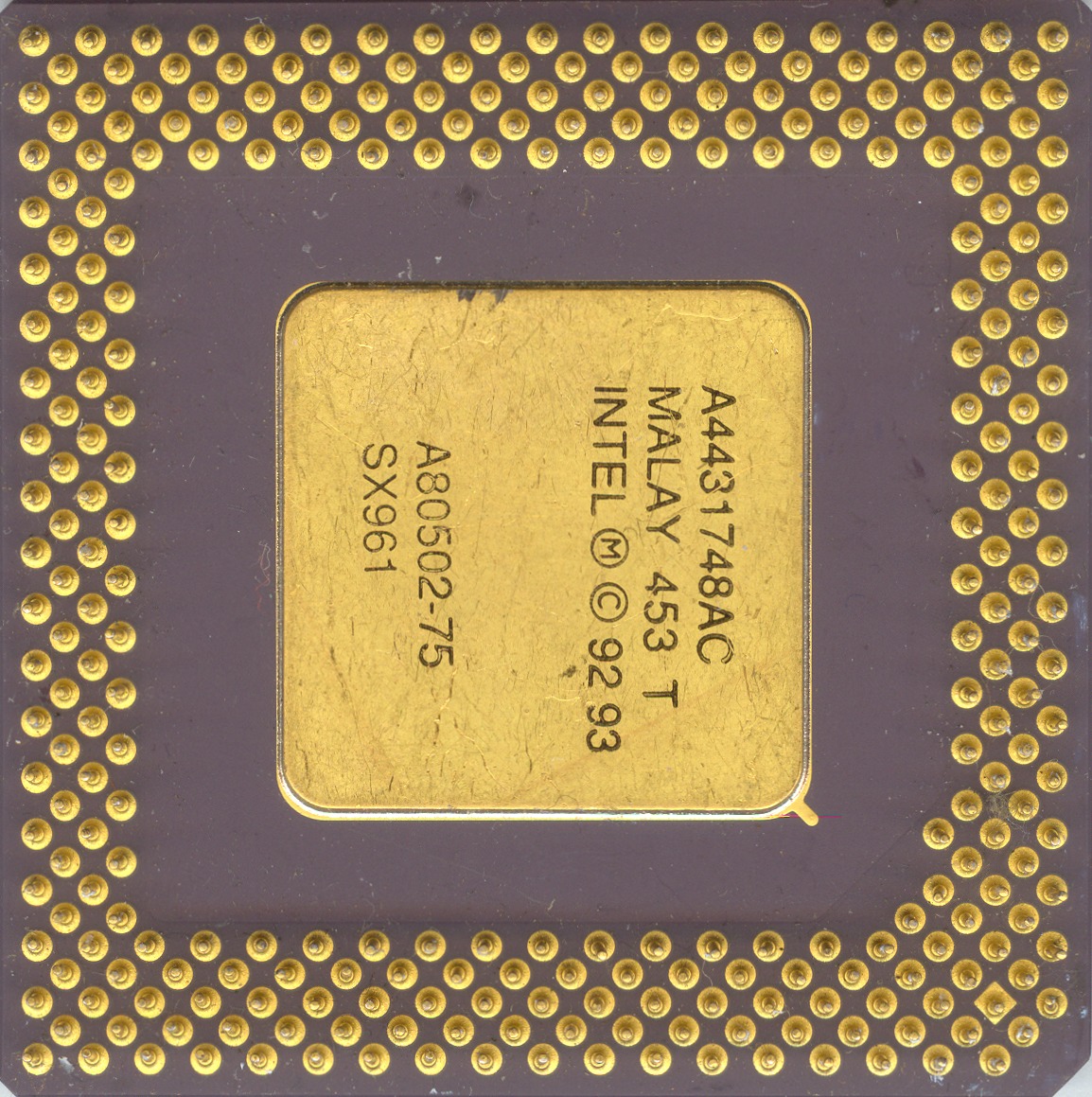

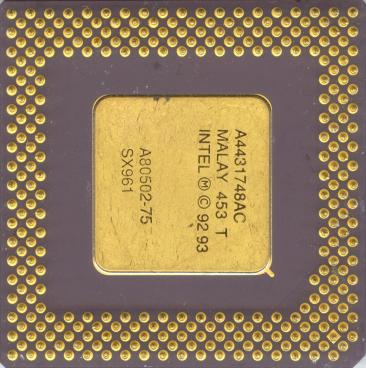

Intel Pentium 75 (back side)

Intel Pentium 75 (back side)
