Intel Mobile Pentium MMX 233
Published: (last update )

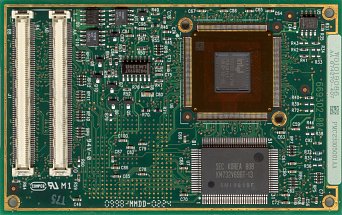

Note: The MMC-1 module contains CPU, i430TX north bridge and 512 kB of SRAM. Not tested, possibly defective.
| Core | |
|---|---|
| Code name | P55C (Mobile, 250 nm) |
| Base clock | 233 MHz |
| Turbo full / half / single | - |
| Base multiplier | 3.5× |
| Technology | 250 nm |
| Transistors | 4.5 million |
| Die size | 94 mm2 |
| Density | 0.048 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | myA0 |
| Cache | |
| L1 data cache | 16 kB |
| L1 inst. cache | 16 kB |
| L2 cache | 512 kB |
| L2 cache type | External, 66 MHz |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX |
| Extended inst. | |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | SDR, 66 MHz, 64 bit |
| Bus bandwith | 528 MB/s |
| Socket | Socket MMC-1 |
| Package | 280-pin Mobile Module Connector |
| Package size | 102 x 64 mm |
| Manufacture date | 9th week of 1998 |
| Voltage | 1.8 V |
| TDP | 5.5 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 1997 |
