AMD Am386 DXL-40

Published: (last update )

Core
Code nameAm386
Base clock40 MHz
Turbo full / half / single-
Base multiplier
Technology800 nm
Transistors0.275 million
Die size47 mm2
Density0.006 M / mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache-
L1 inst. cache-
L2 cache-
L2 cache type-
L3 cache-
L3 cache type-
Instructions
Basic inst.x86
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeSDR, 40 MHz, 32 bit
Bus bandwith160 MB/s
SocketSocket unknown
Package132 pin Ceramic PGA
Package size37 x 37 mm
Manufacture date49th week of 1991
Voltage5 V
TDP2 W
Memory controller-
Integrated VGA-
Release date1991

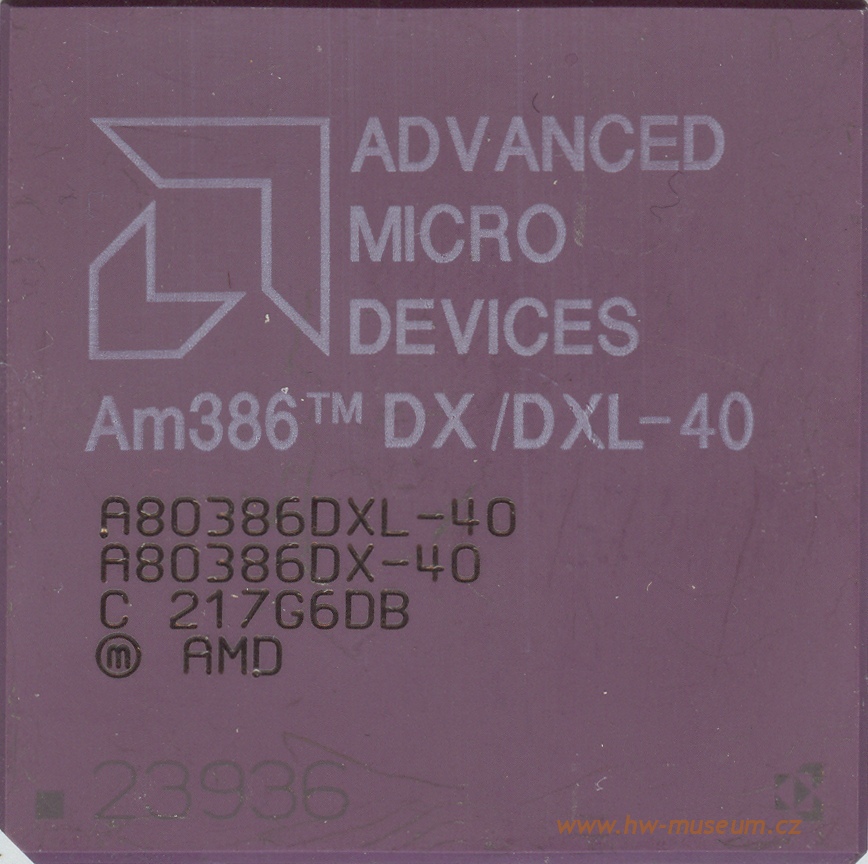

AMD Am386 DXL-40 (front side)

AMD Am386 DXL-40 (front side)

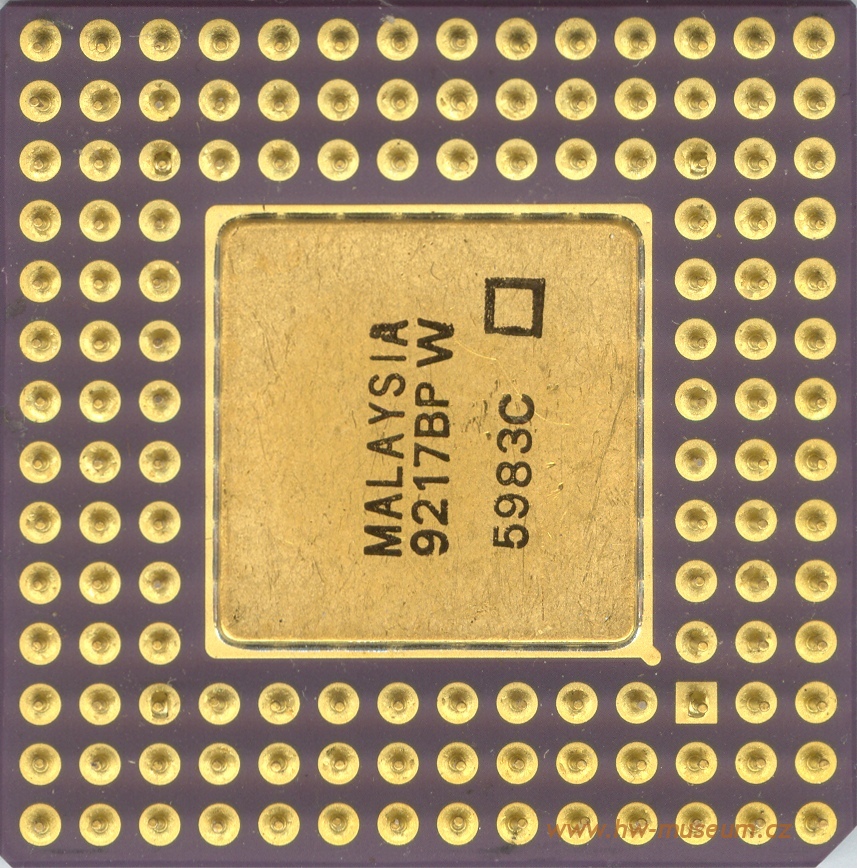

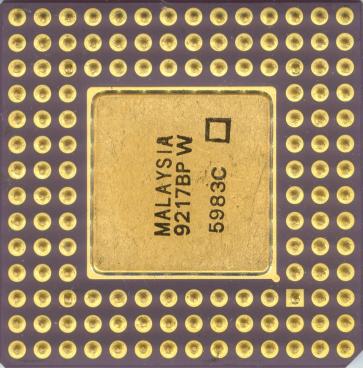

AMD Am386 DXL-40 (back side)

AMD Am386 DXL-40 (back side)
