Intel 80286-12

Published: (last update )

Core
Code name80286
Base clock12 MHz
Turbo full / half / single-
Base multiplier
Technology1500 nm
Transistors0.134 million
Die size47 mm2
Density0.003 M / mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache-
L1 inst. cache-
L2 cache-
L2 cache type-
L3 cache-
L3 cache type-
Instructions
Basic inst.x86
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 12 MHz, 16 bit
Bus bandwith24 MB/s
SocketSocket unknown
PackagePlastic PLCC-68
Package size25 x 25 mm
Manufacture date10th week of 1990
Voltage5 V
TDP3 W
Memory controller-
Integrated VGA-
Release date1982
Intel 80286-12 (front side)

Intel 80286-12 (front side)

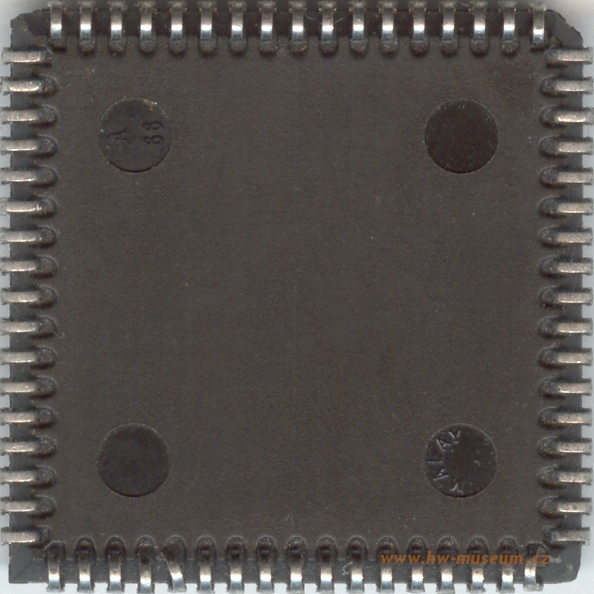

Intel 80286-12 (back side)

Intel 80286-12 (back side)
