ATi Rage Fury MAXX

Published: (last update )

GPU
GPU type 2 × Rage 128 Pro
Manufacturing process250 nm
Transistors16 million
Die size198 mm2
Density0.081 M / mm2
ROPs4
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock125 MHz
Pixel fillrate500 MP/s
Texel fillrate500 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeSDRAM
Clock143 MHz
Bus width256 bit
Bandwith4 576 MB/s
Rated speed143 MHz
BrandHyundai
The card
ManufacturerATi
InterfaceAGP
Interface bandwith266 MB/s
TDP13 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date9th week of 2000
Release date1999

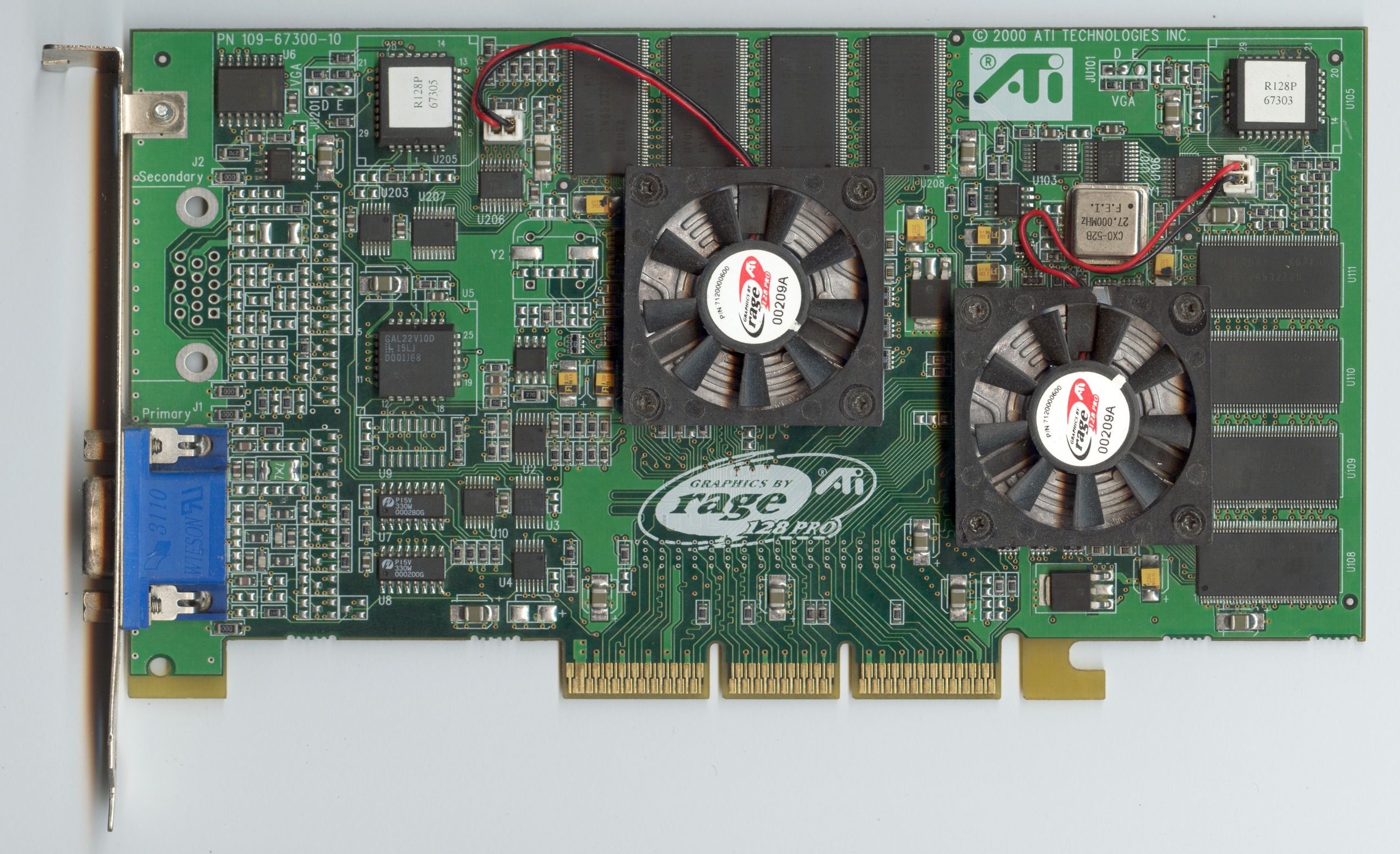

ATi Rage Fury MAXX (front side)

ATi Rage Fury MAXX (front side)

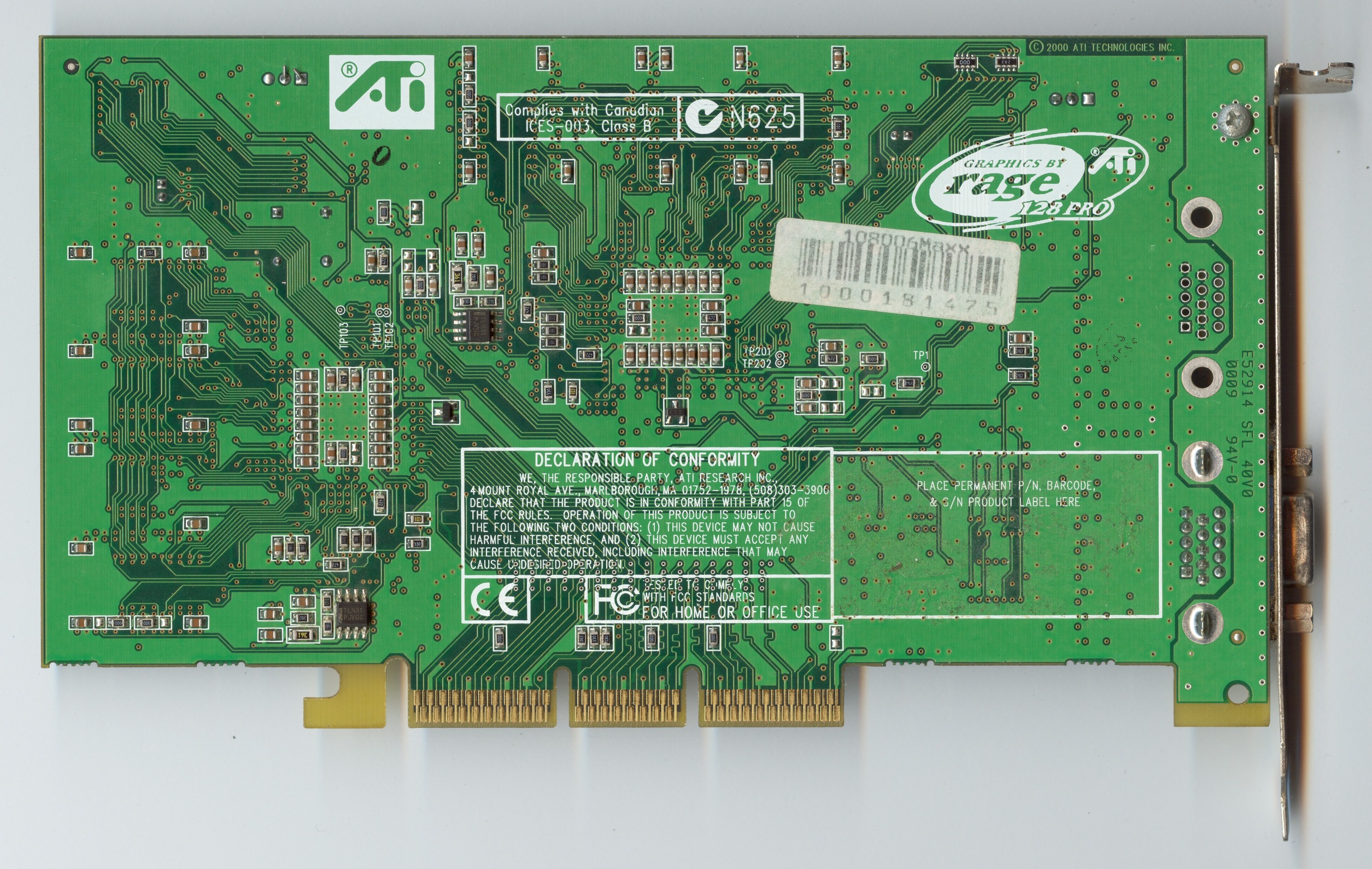

ATi Rage Fury MAXX (back side)

ATi Rage Fury MAXX (back side)
