ATi Rage 128 Pro

Published: (last update )

GPU
GPU type Rage 128 Pro
Manufacturing process250 nm
Transistors8 million
Die size99 mm2
Density0.081 M / mm2
ROPs2
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock125 MHz
Pixel fillrate250 MP/s
Texel fillrate250 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock143 MHz
Bus width128 bit
Bandwith2 288 MB/s
Rated speed143 MHz
BrandWinbond
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP8 W
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date26th week of 2000
Release date1999

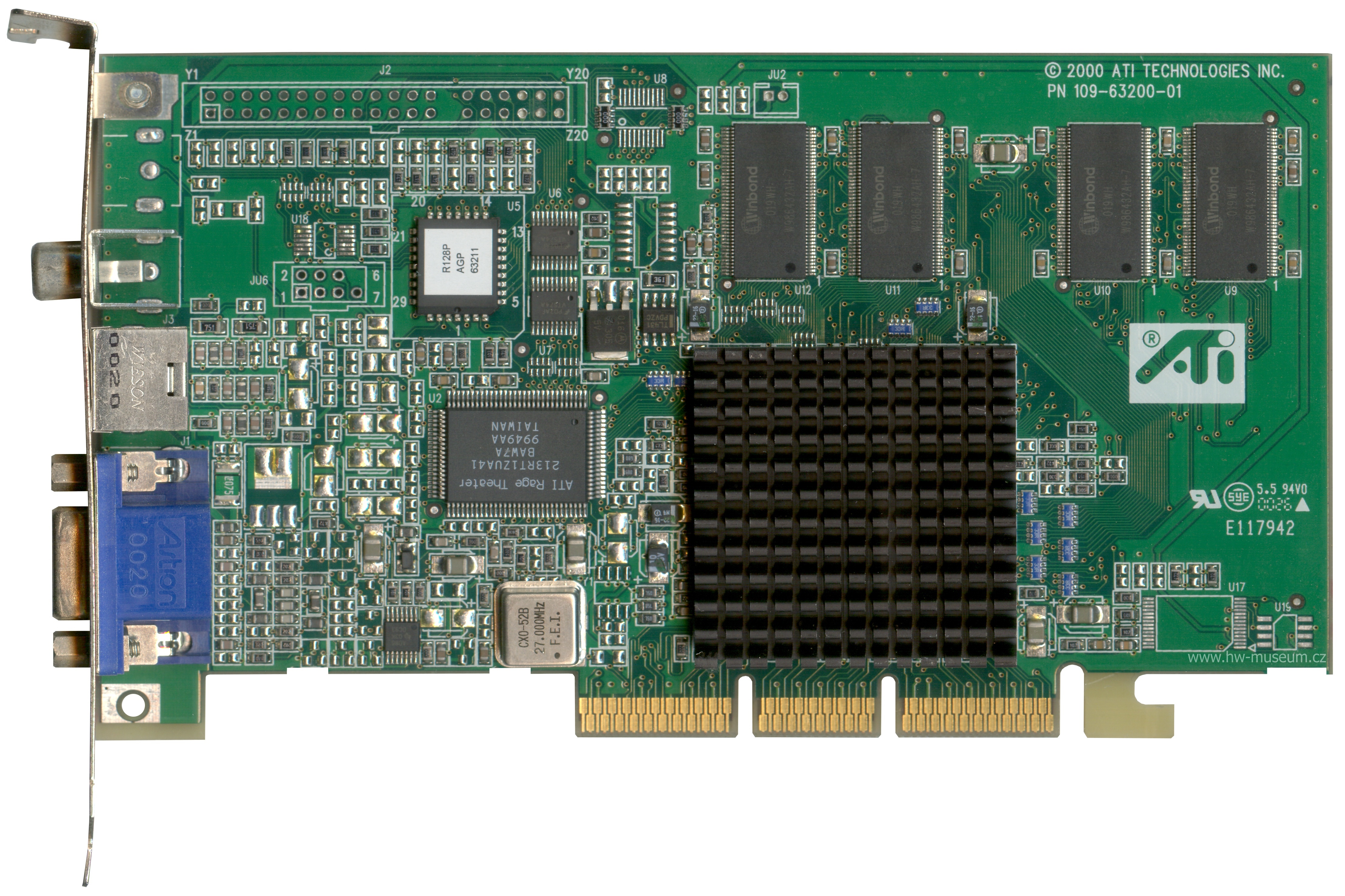

ATi Rage 128 Pro (front side)

ATi Rage 128 Pro (front side)

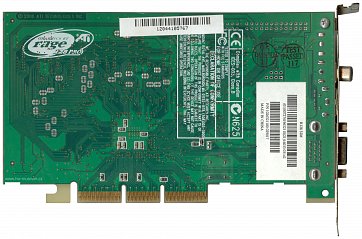

ATi Rage 128 Pro (back side)

ATi Rage 128 Pro (back side)
