Matrox IS-ATHENA (MGA Impression Plus)
Published: (last update )
Note: GPU doesn't support texture mapping.
| GPU | |
|---|---|
| GPU type | IS-ATHENA |
| Manufacturing process | - nm |
| Transistors | - million |
| Die size | - mm2 |
| Density | - |
| ROPs | 1 |
| TMUs | 1 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | - |
| Clock | - |
| Pixel fillrate | - |
| Texel fillrate | - |
| SP gigaflops | - |
| DP gigaflops | - |
| DirectX | - |
| OpenGL | |
| OpenCL / Compute ver. | - |
| Memory | |
|---|---|
| Capacity | 4 MB |
| Type | DRAM |
| Clock | - |
| Bus width | 64 bit |
| Bandwith | - |
| Rated speed | - |
| Brand | - |
| The card | |
| Manufacturer | Matrox |
| Interface | PCI |
| Interface bandwith | 133 MB/s |
| TDP | - |
| Analog I/O ports | 1 × VGA |
| Digital I/O ports | - |
| Independent screens | 1 |
| Manufacture date | 30th week of 1994 |
| Release date | 1994 |

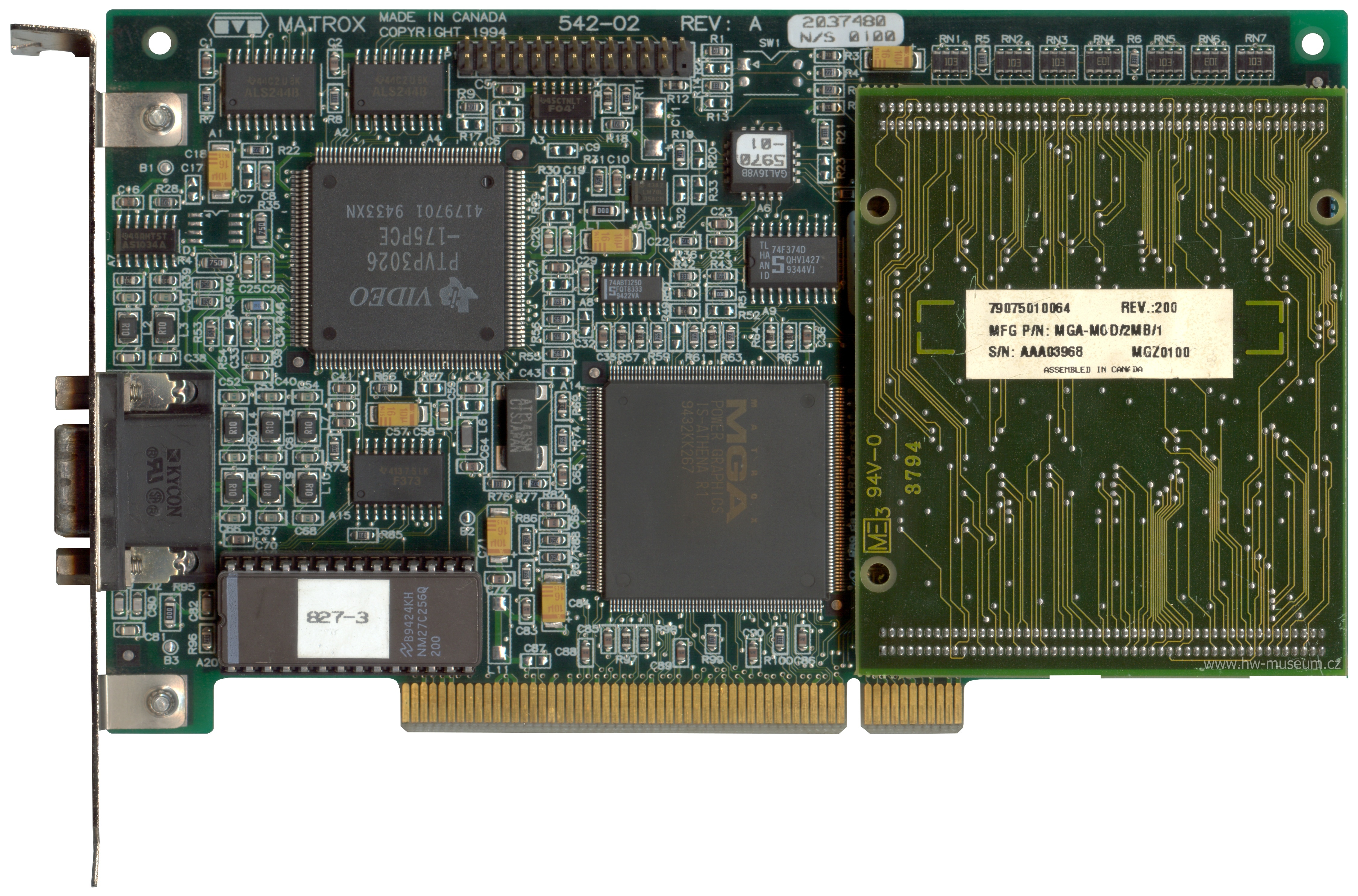

_F.jpg "Click to enlarge")

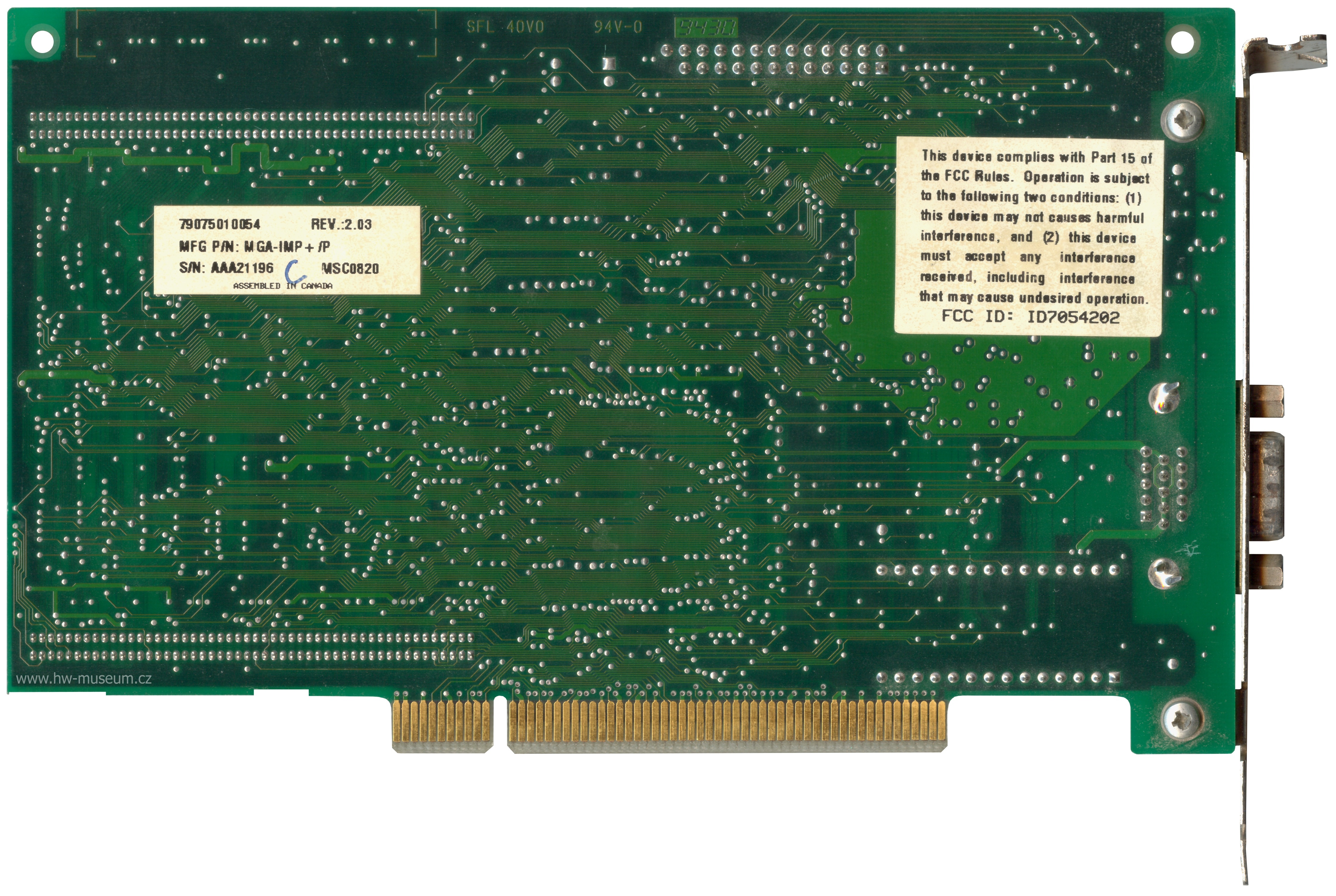

_B.jpg "Click to enlarge")
