Gigabyte Radeon R9 280X OC

Published: (last update )

GPU
GPU type Tahiti
Manufacturing process28 nm
Transistors4313 million
Die size352 mm2
ROPs32
TMUs128
Pixel shaders-
Vertex shaders-
Unified shaders2048
Clock1100 MHz
Pixel fillrate35200 MP/s
Texel fillrate140800 MT/s
SP gigaflops4506
DP gigaflops1127
DirectX12
OpenGL4.6
OpenCL / Compute ver.1.2 / -
Memory
Capacity3072 MB
TypeGDDR5
Clock6000 MHz
Bus width384 bit
Bandwith288000 MB/s
Rated speed-
BrandElpida
The card
ManufacturerGigabyte
InterfacePCI-E 3.0 x16
Interface bandwith16384 MB/s
TDP250 W
Analog I/O ports1 × DVI-I
Digital I/O ports1 × DVI-I, 2 × DP, 1 × HDMI
Independent screens4
Manufacture date2nd week of 2014
Release date2013

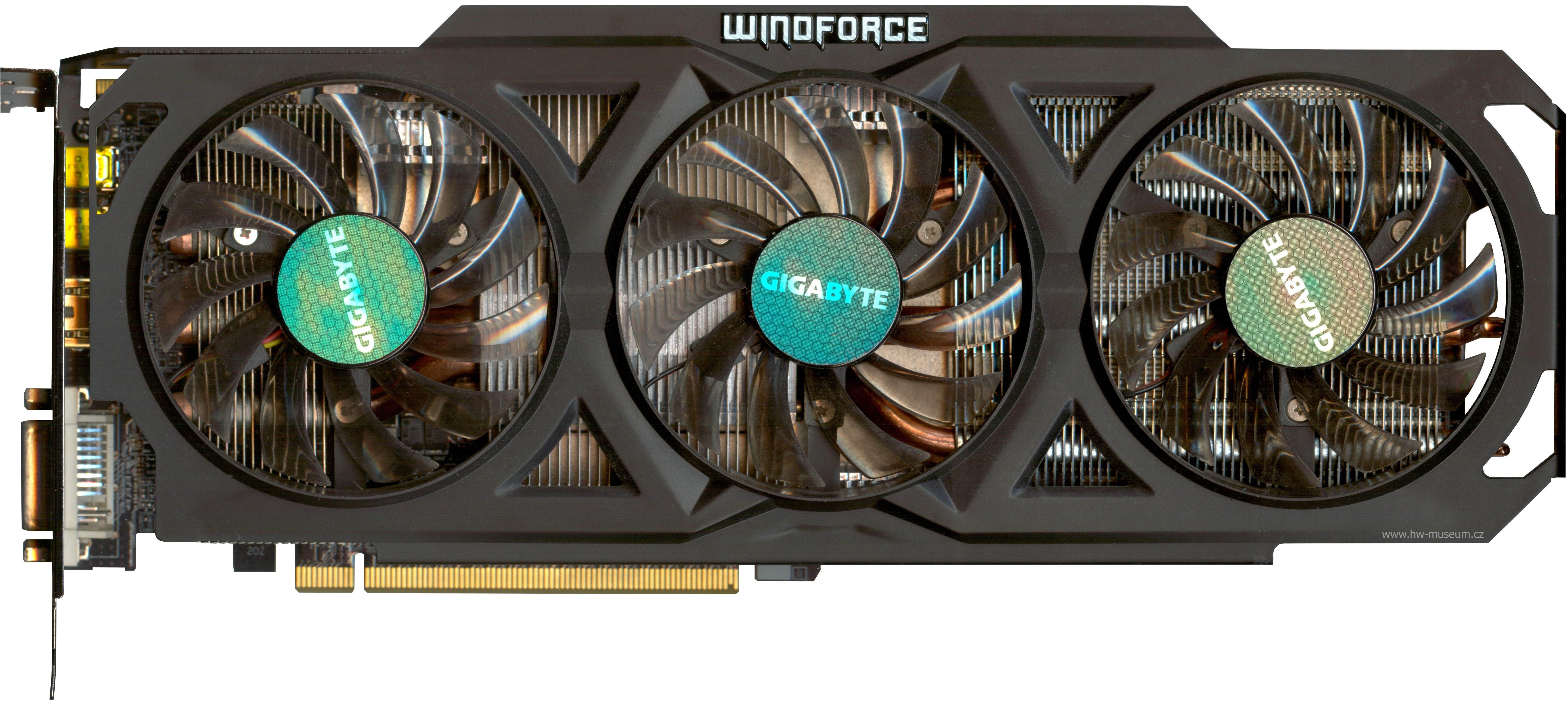

Gigabyte Radeon R9 280X OC (front side)

Gigabyte Radeon R9 280X OC (front side)

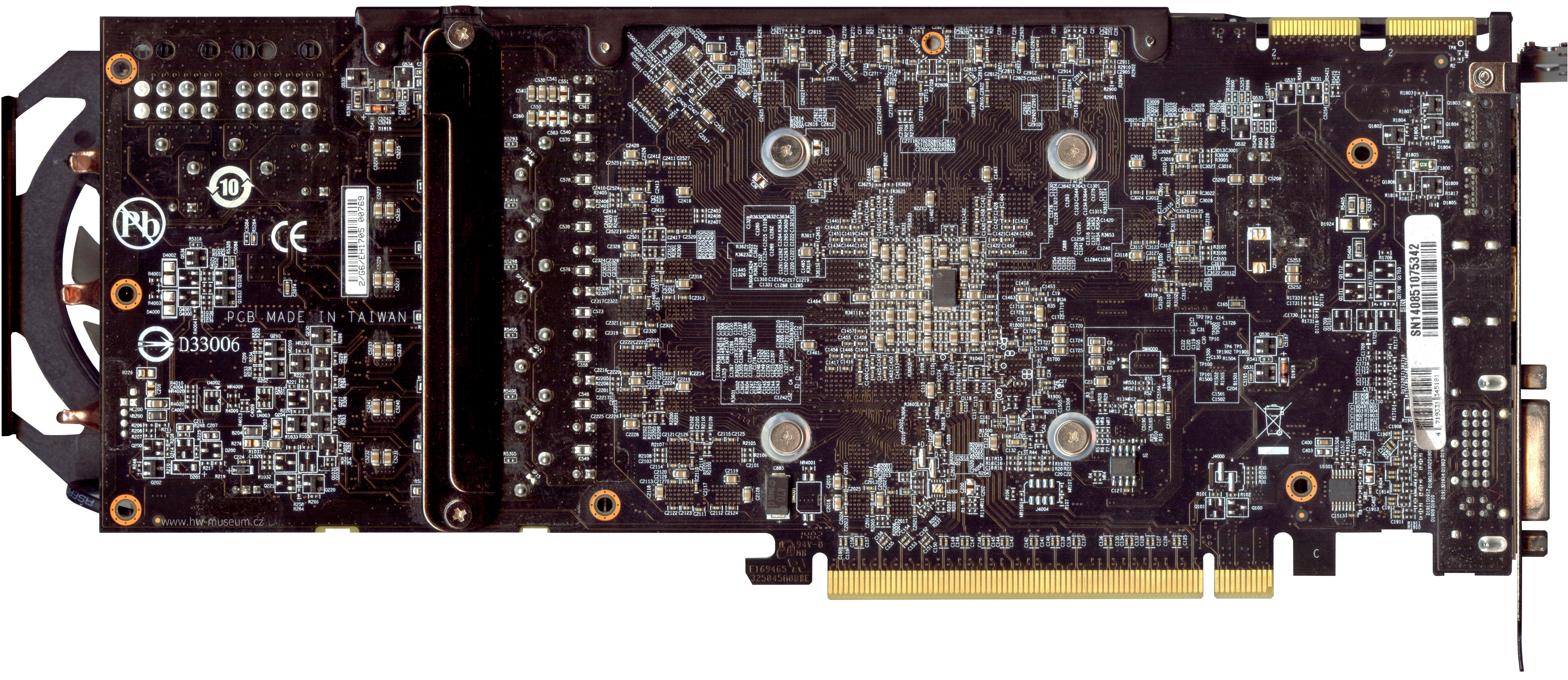

Gigabyte Radeon R9 280X OC (back side)

Gigabyte Radeon R9 280X OC (back side)

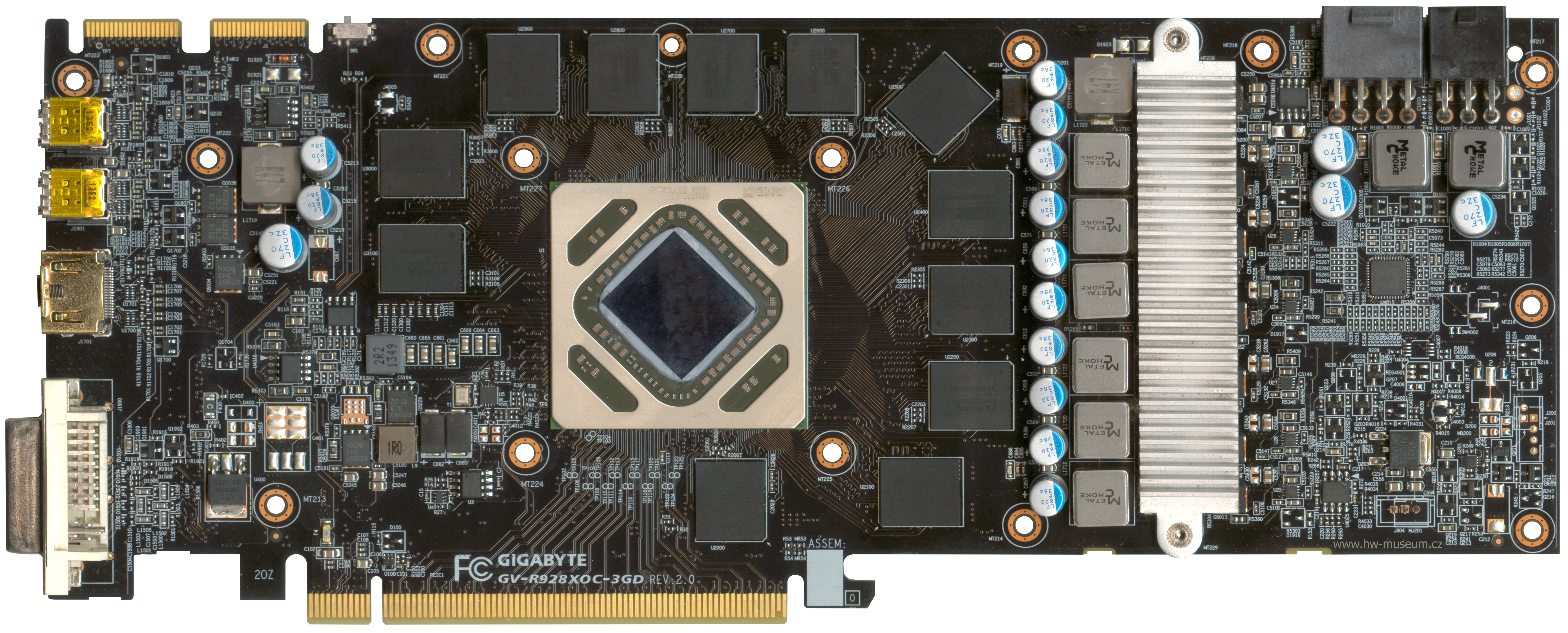

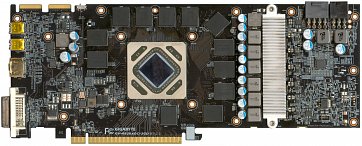

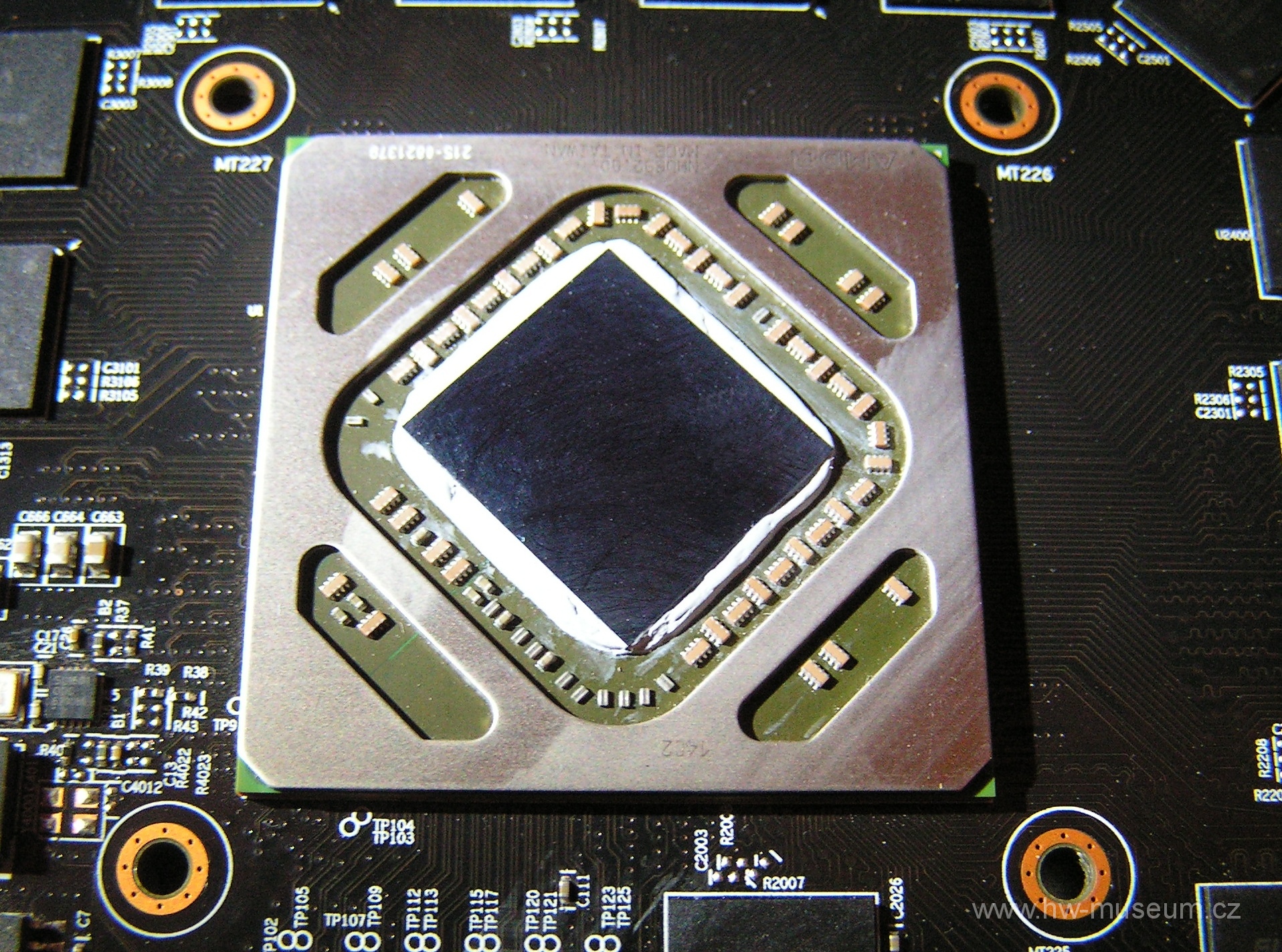

Gigabyte Radeon R9 280X OC gallery
Gigabyte Radeon R9 280X OC gallery
Gigabyte Radeon R9 280X OC gallery
Gigabyte Radeon R9 280X OC gallery
