ATi Radeon HD 5970

Published: (last update )

GPU
GPU type 2 × Cypress
Manufacturing process40 nm
Transistors4 308 million
Die size668 mm2
Density6.45 M / mm2
ROPs64
TMUs160
Pixel shaders-
Vertex shaders-
Unified shaders3 200
Clock725 MHz
Pixel fillrate46 400 MP/s
Texel fillrate116 000 MT/s
SP gigaflops4 640
DP gigaflops928
DirectX11
OpenGL4.5
OpenCL / Compute ver.1.2 / -
Memory
Capacity2 048 MB
TypeGDDR5
Clock4 000 MHz
Bus width512 bit
Bandwith256 000 MB/s
Rated speed4 000 MHz
Brand-
The card
ManufacturerATi
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP294 W
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I, 1 × DP
Independent screens3
Manufacture date-
Release date2009
ATi Radeon HD 5970 (front side)

ATi Radeon HD 5970 (front side)

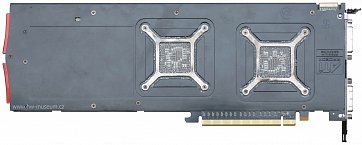

ATi Radeon HD 5970 (back side)

ATi Radeon HD 5970 (back side)
