Pegatron Radeon HD 5670

Published: (last update )

GPU
GPU type Redwood
Manufacturing process40 nm
Transistors627 milion
Die size104 mm2
ROPs8
TMUs20
Pixel shaders-
Vertex shaders-
Unified shaders400
Clock775 MHz
Pixel fillrate6200 MP/s
Texel fillrate15500 MT/s
SP gigaflops620
DP gigaflops-
DirectX11
OpenGL4.3
OpenCL / Compute ver.1.2 / -
Memory
Capacity1024 MB
TypeGDDR5
Clock4000 MHz
Bus width128 bit
Bandwith64000 MB/s
Rated speed4000 MHz
BrandSamsung
The card
ManufacturerPegatron
InterfacePCI-E 2.0 x16
Interface bandwith8192 MB/s
TDP64 W
Analog I/O ports1 × VGA, 1 × DVI-I
Digital I/O ports1 × DVI-I, 1 × HDMI
Independent screens2
Rev
Release date2010

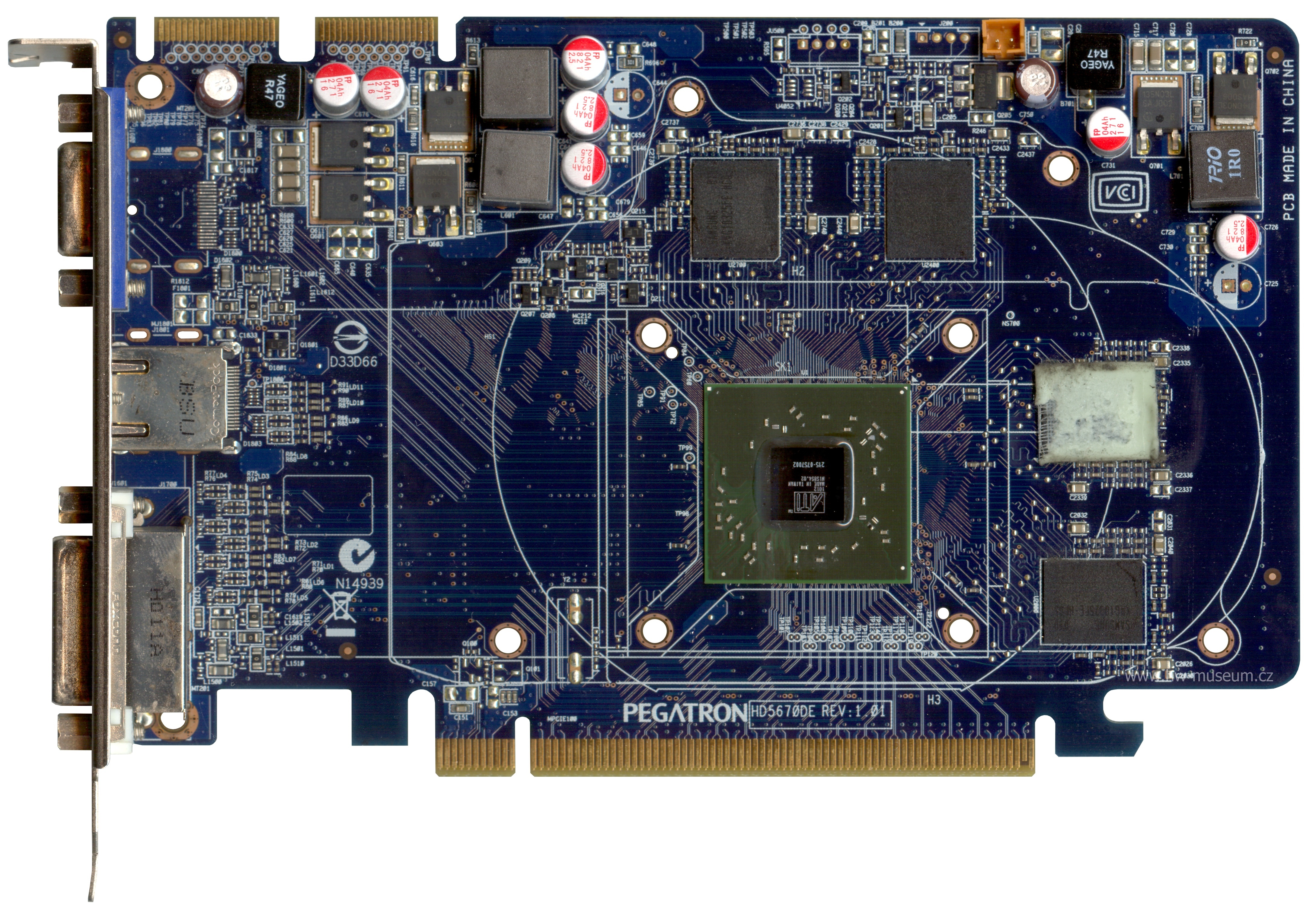

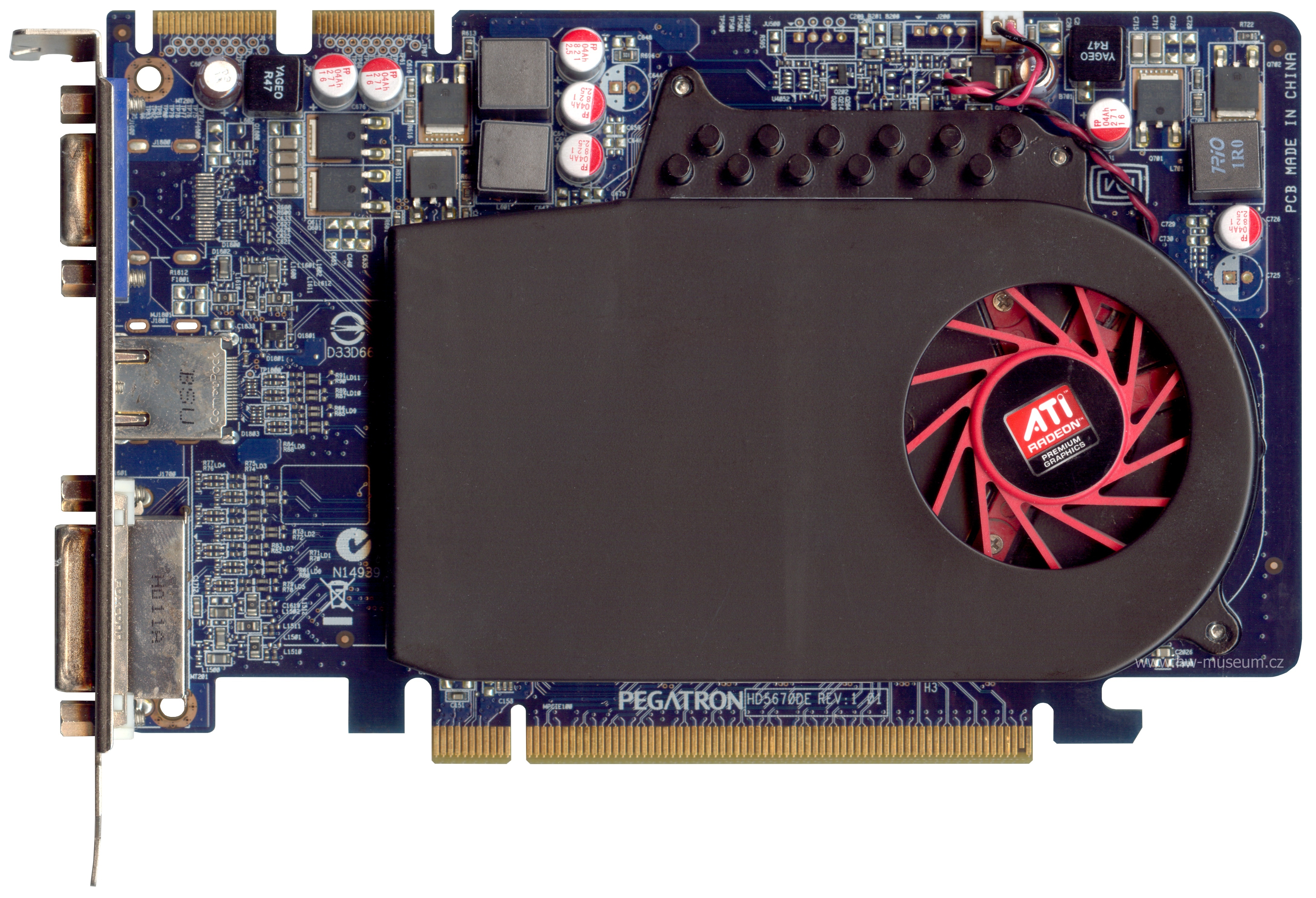

Pegatron Radeon HD 5670 (front side)

Pegatron Radeon HD 5670 (front side)

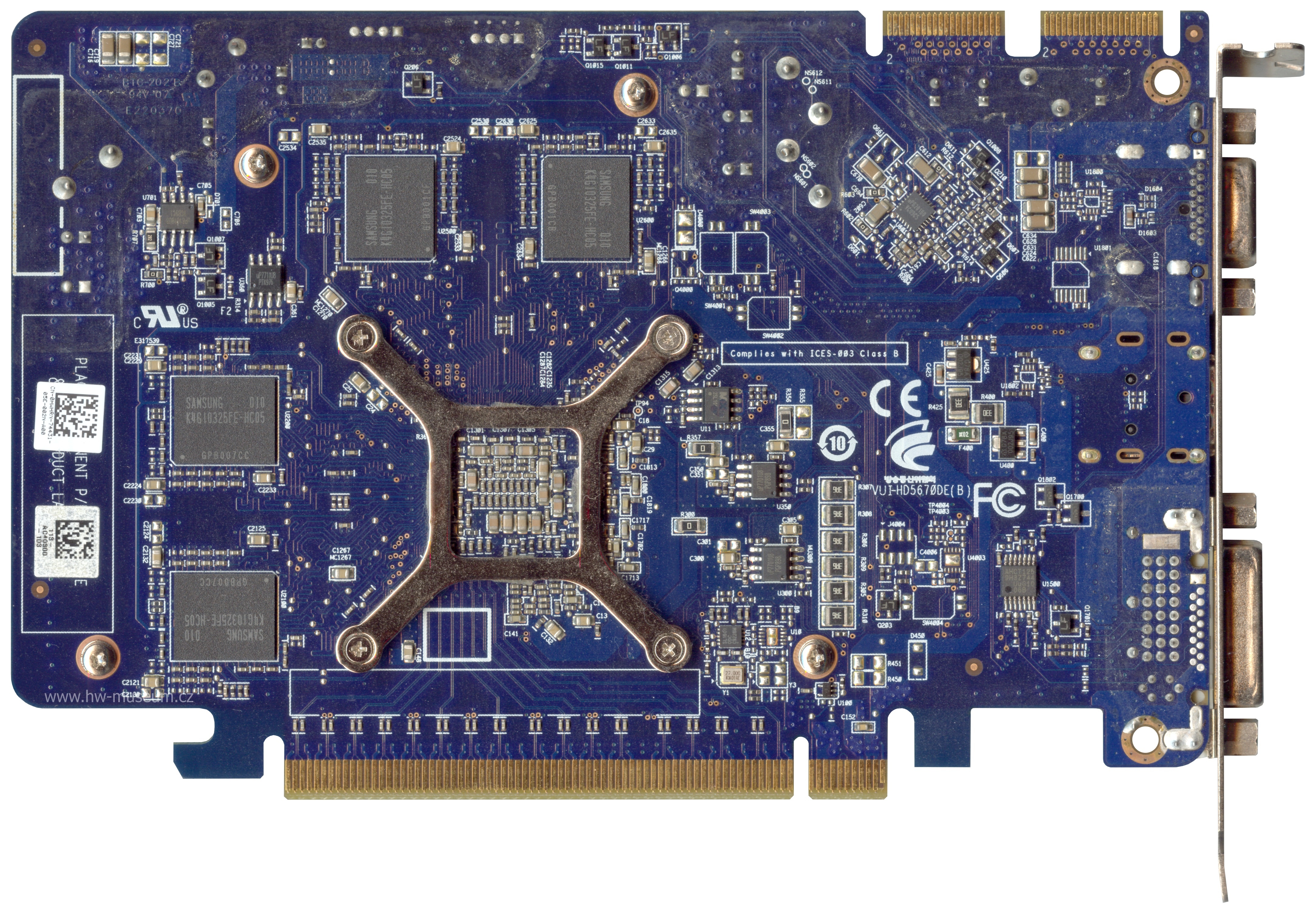

Pegatron Radeon HD 5670 (back side)

Pegatron Radeon HD 5670 (back side)

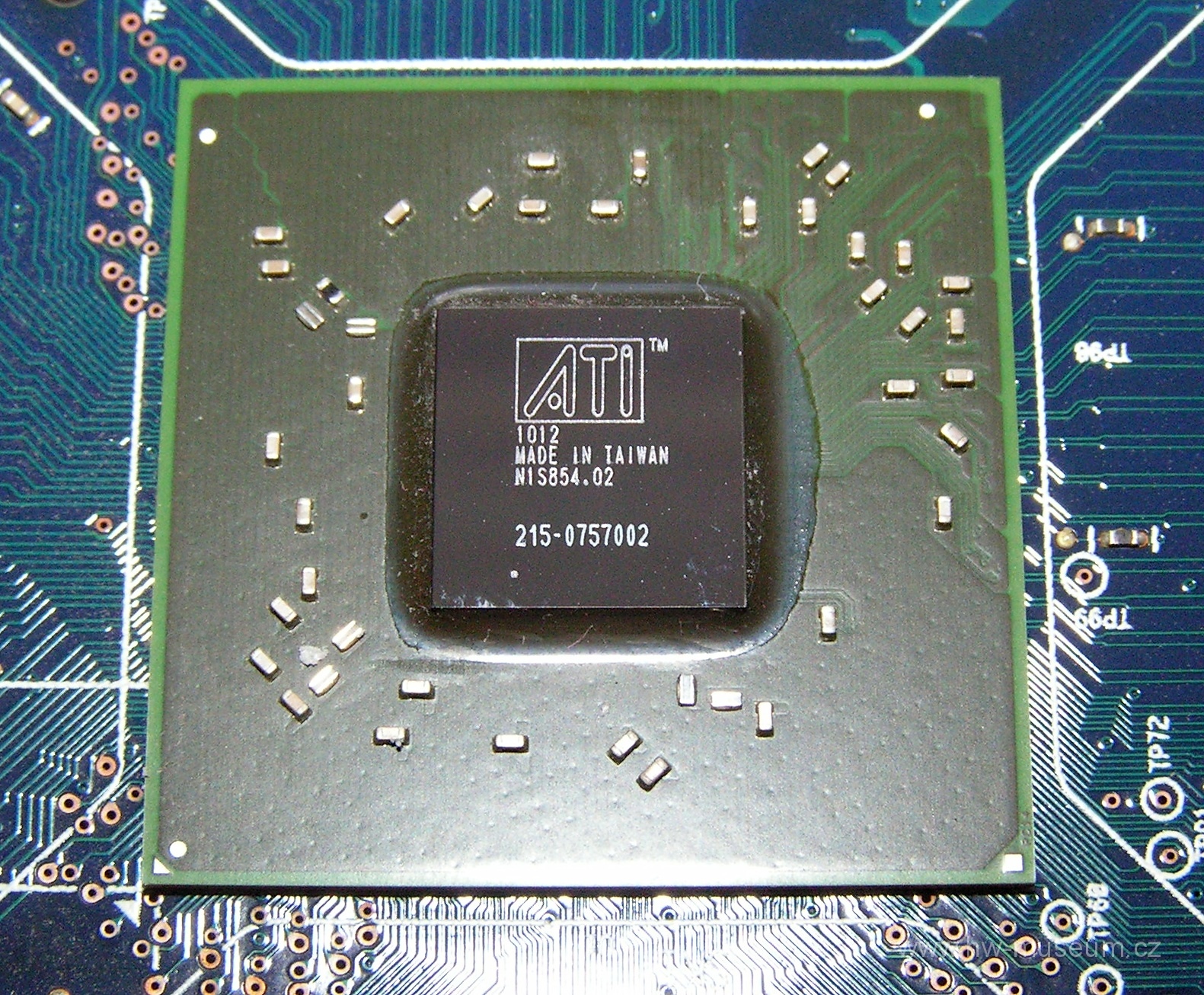

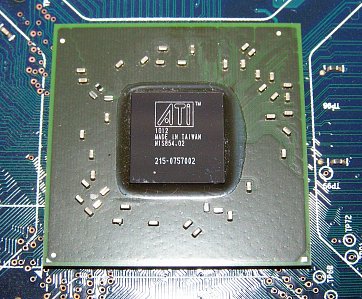

Pegatron Radeon HD 5670 gallery
Pegatron Radeon HD 5670 gallery
Pegatron Radeon HD 5670 gallery
Pegatron Radeon HD 5670 gallery
