ATi Fire GL2

Published: (last update )

GPU
GPU type RC1000 + GT1000
Manufacturing process- nm
Transistors- milion
Die size- mm2
ROPs-
TMUs-
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock120 MHz
Pixel fillrate-
Texel fillrate-
SP gigaflops-
DP gigaflops-
DirectX
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock240 MHz
Bus width256 bit
Bandwith7680 MB/s
Rated speed333 MHz
BrandSamsung
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP-
Analog I/O ports1 × VGA
Digital I/O ports1 × DVI-D
Independent screens1
Rev3101
Release date2000

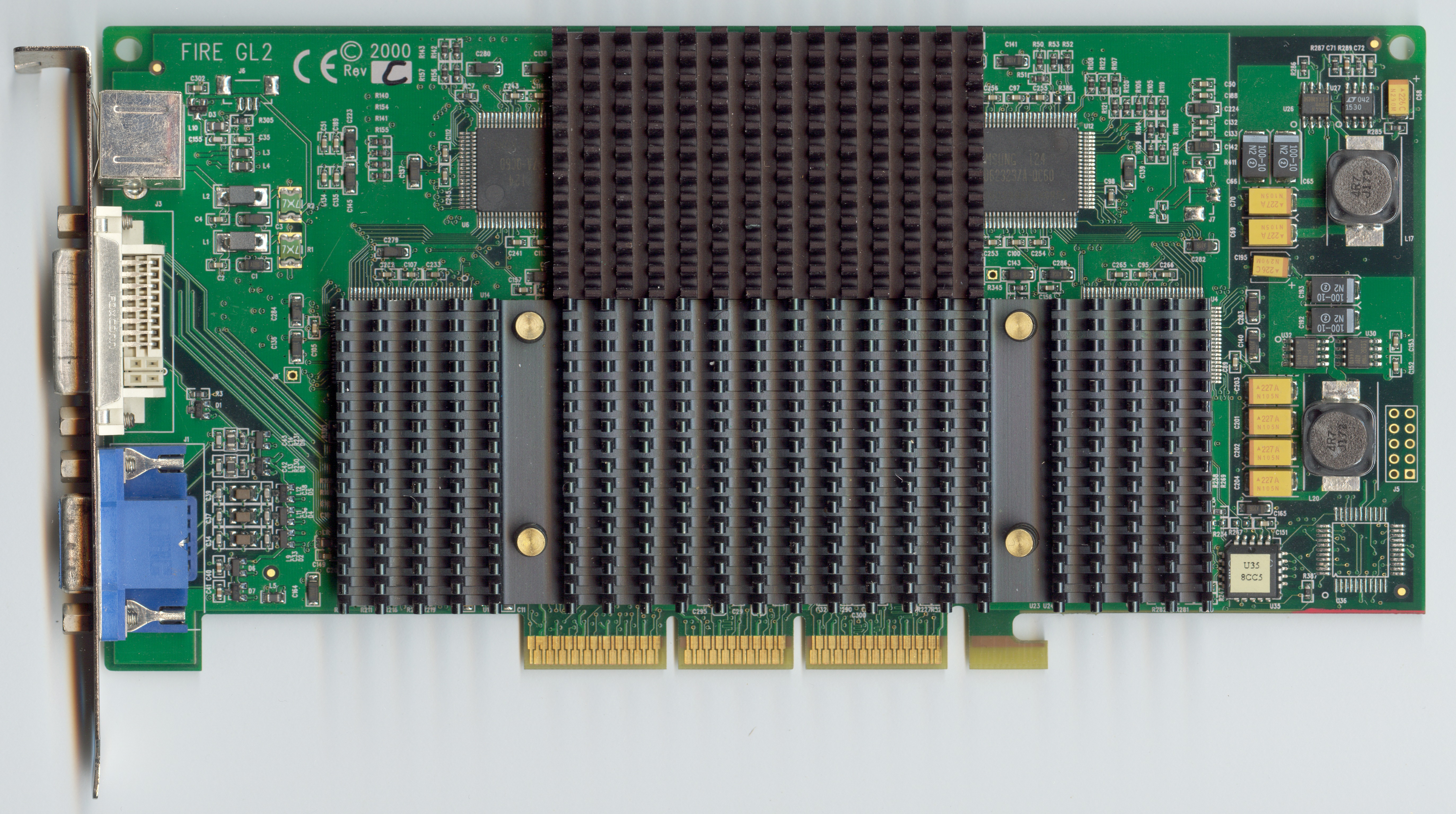

ATi Fire GL2 (front side)

ATi Fire GL2 (front side)

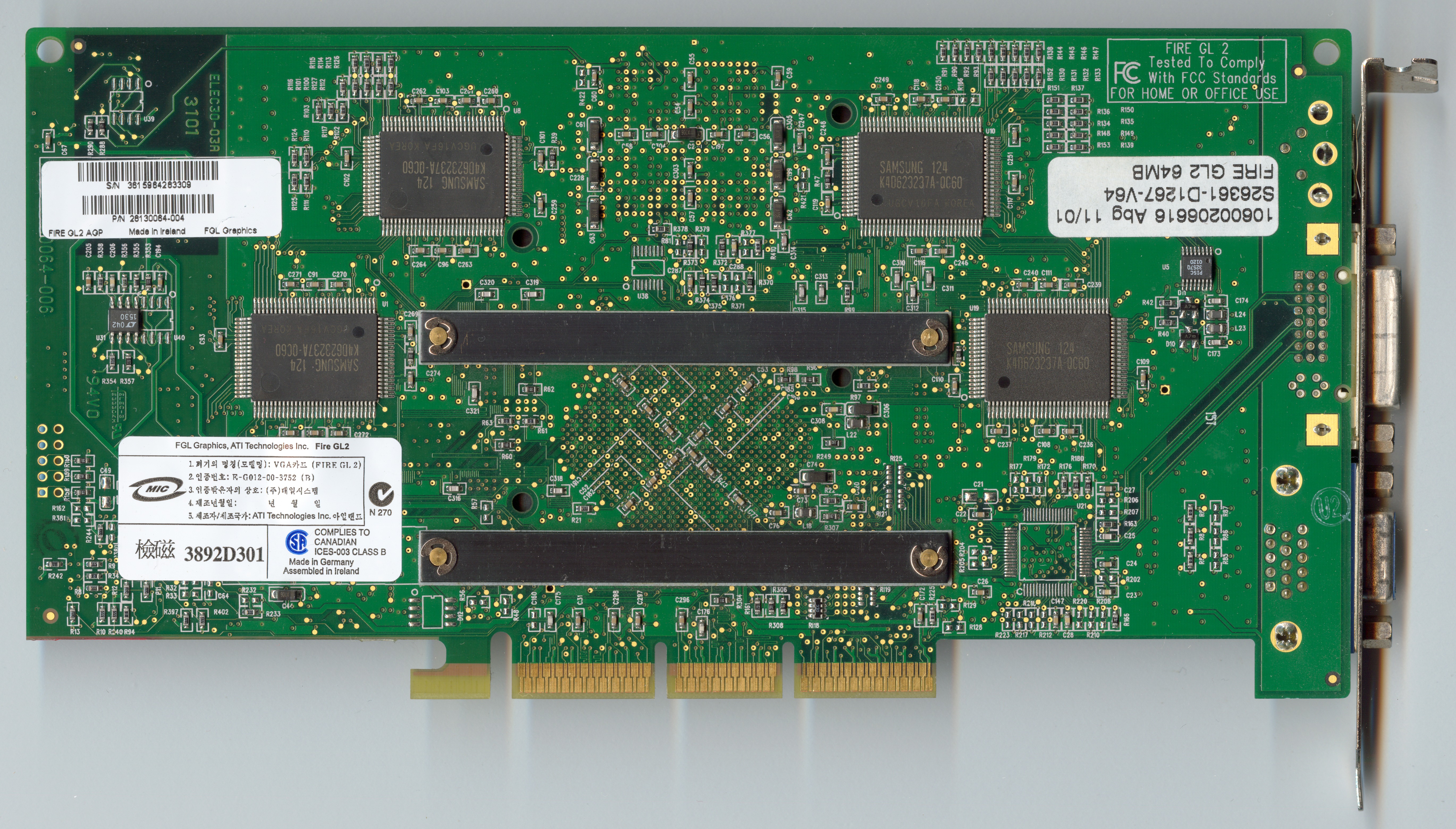

ATi Fire GL2 (back side)

ATi Fire GL2 (back side)
