Asus GeForce 8800 GTS 512 OC

Published: (last update )

GPU
GPU type G92
Manufacturing process65 nm
Transistors754 milion
Die size324 mm2
ROPs16
TMUs64
Pixel shaders-
Vertex shaders-
Unified shaders128
Clock740 MHz
Pixel fillrate11840 MP/s
Texel fillrate47360 MT/s
SP gigaflops691
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.1.1 / 1.1
Memory
Capacity512 MB
TypeGDDR3
Clock2070 MHz
Bus width256 bit
Bandwith66240 MB/s
Rated speed-
Brand-
The card
ManufacturerAsus
InterfacePCI-E 2.0 x16
Interface bandwith8192 MB/s
TDP135 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev
Release date2007

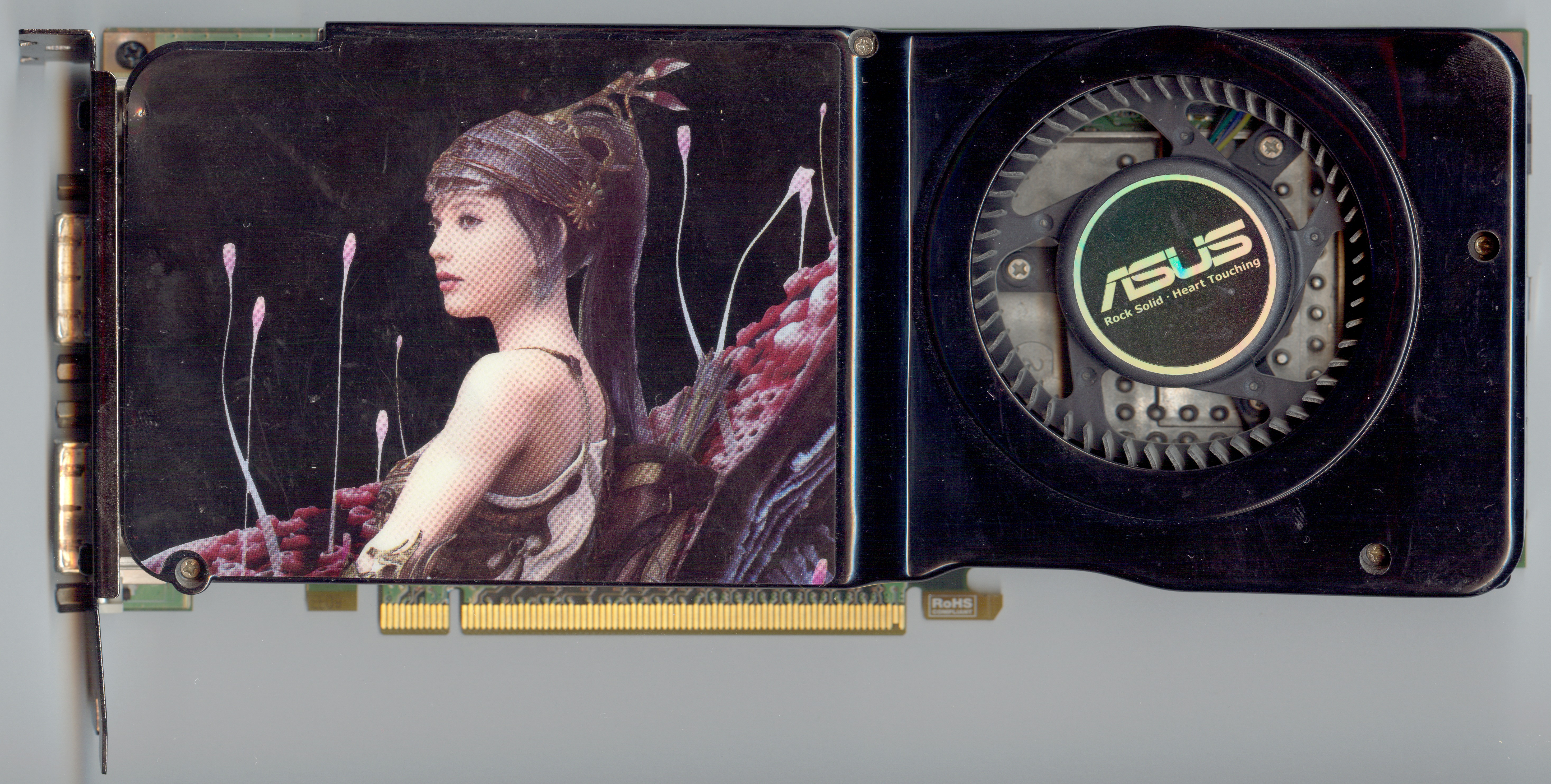

Asus GeForce 8800 GTS 512 OC (front side)

Asus GeForce 8800 GTS 512 OC (front side)

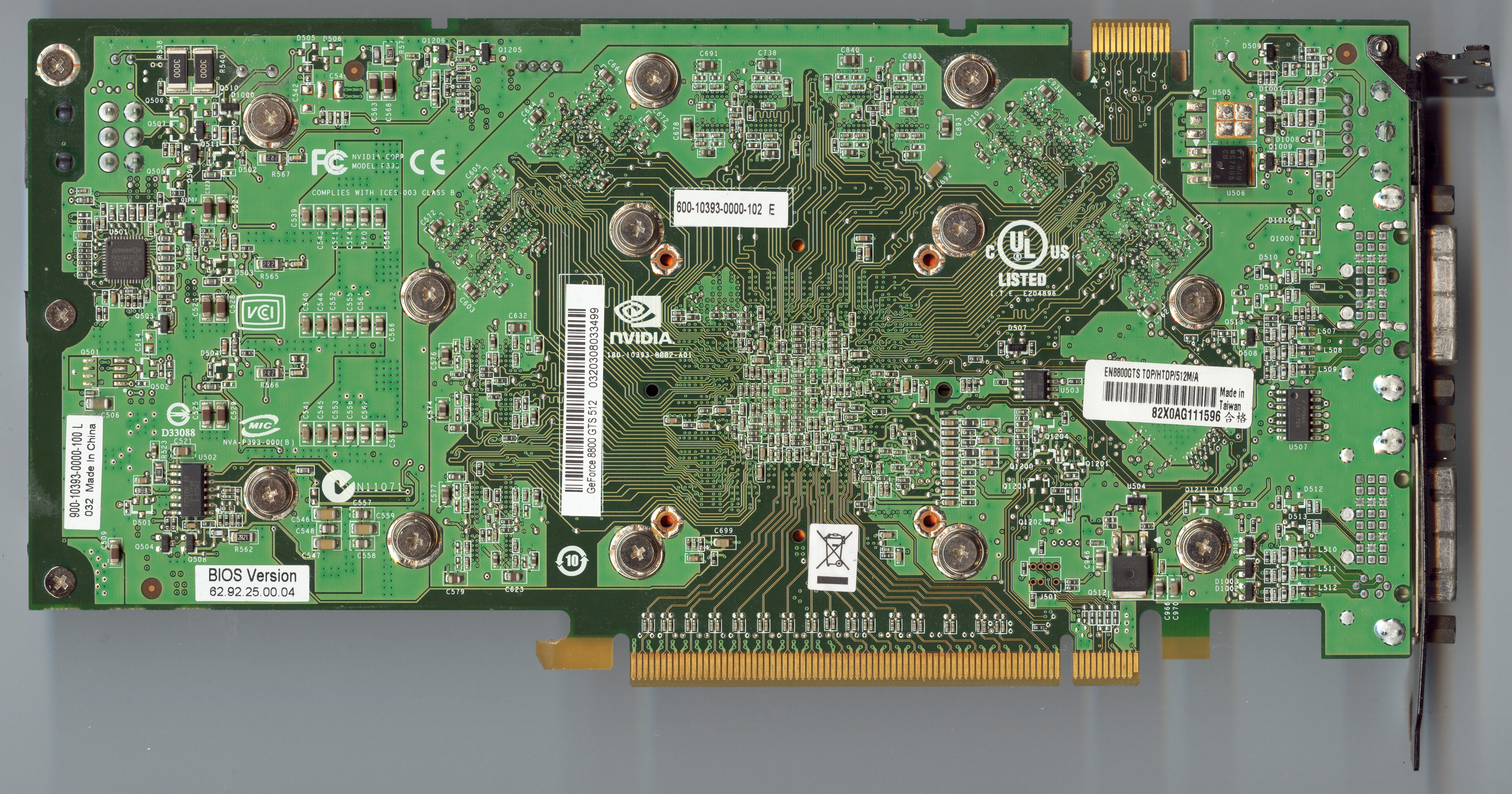

Asus GeForce 8800 GTS 512 OC (back side)

Asus GeForce 8800 GTS 512 OC (back side)
