MSI GeForce 6800 GS

Published: (last update )

GPU
GPU type NV42
Manufacturing process110 nm
Transistors202 million
Die size225 mm2
Density0.90 M / mm2
ROPs12
TMUs12
Pixel shaders12
Vertex shaders5
Unified shaders-
Clock425 MHz
Pixel fillrate5 100 MP/s
Texel fillrate5 100 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 000 MHz
Bus width256 bit
Bandwith32 000 MB/s
Rated speed-
Brand-
The card
ManufacturerMSI
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP50 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date51st week of 2005
Release date2005

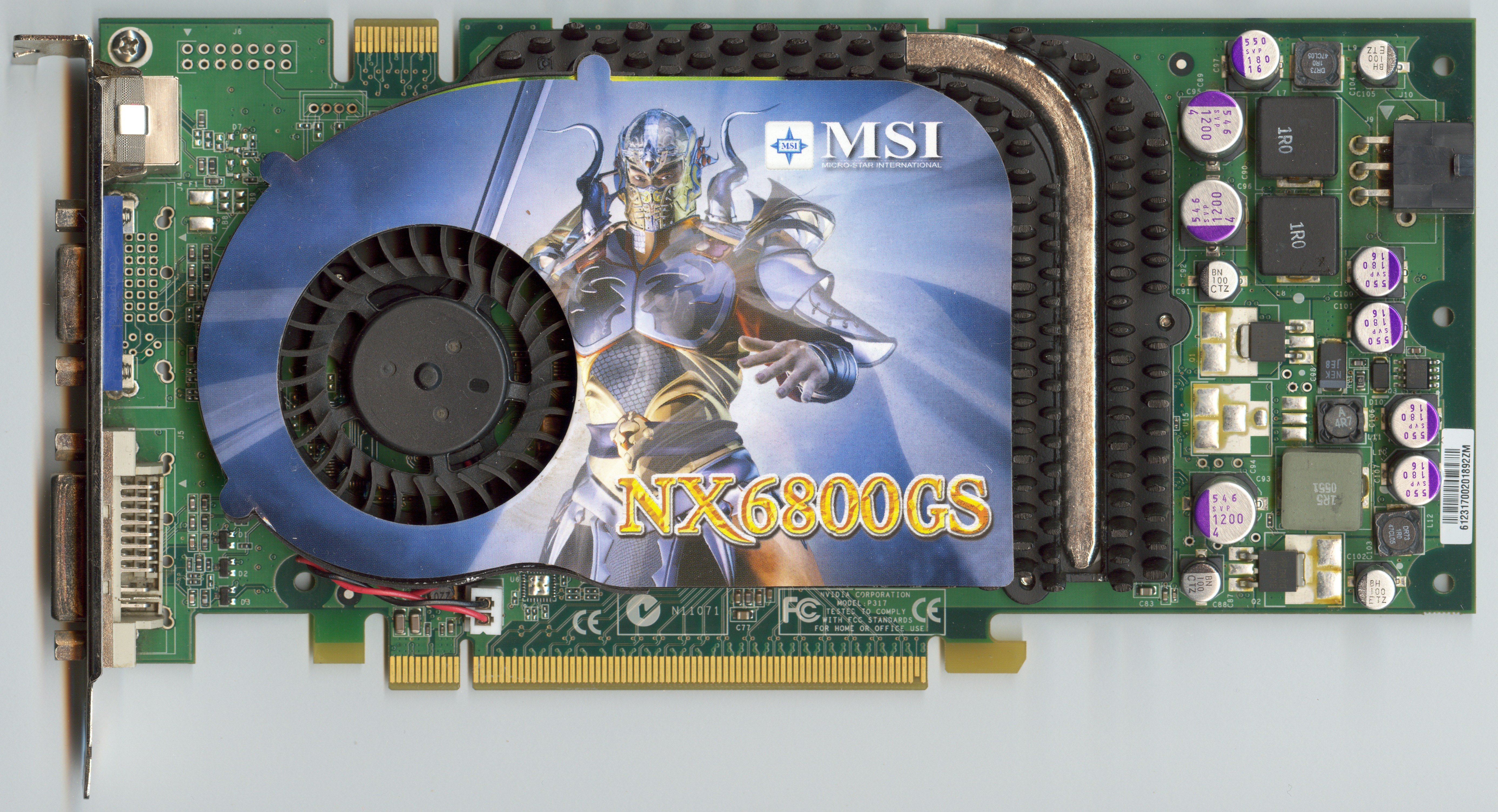

MSI GeForce 6800 GS (front side)

MSI GeForce 6800 GS (front side)

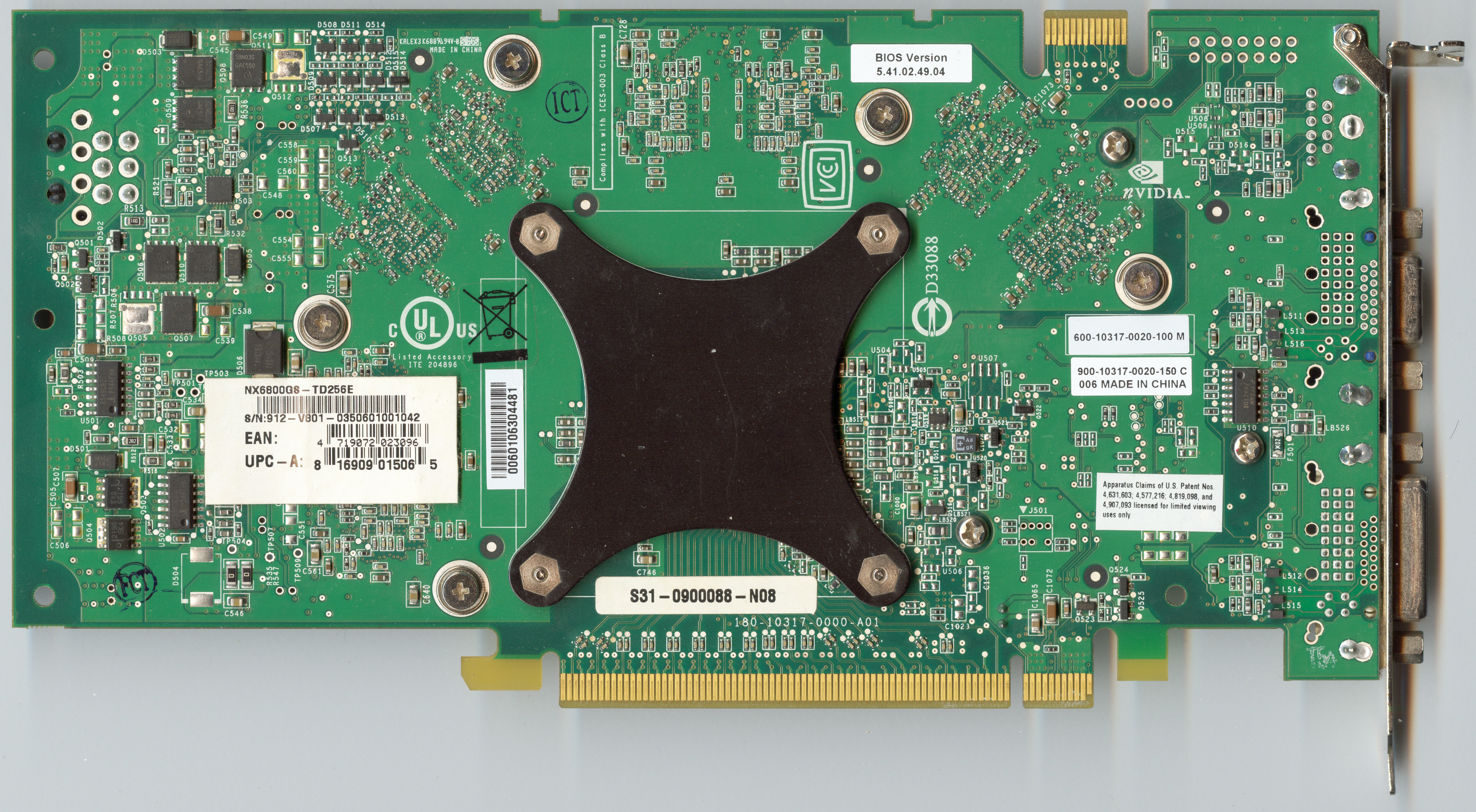

MSI GeForce 6800 GS (back side)

MSI GeForce 6800 GS (back side)
