Asus P8H61-I LX

Published: (last update )

Chipset
ModelIntel H61
NorthbridgeSB-DT IMC
SouthbridgeH61
Bus typeDMI 2.0, 100 MHz, - bit
Bus bandwith0 MB/s
RAM type (1)DDR3 1333 MHz, 128 bit
RAM type (2)-
RAM bandwidth21328 MB/s
Maximum RAM16384 MB
Reg. / ECC supportno / no
NB PCI-E lanes 16 (2.0)
AGP-
PCI support-
Integrated VGAIntel HD Graphics
The board
Socketsocket 1155
Supported CPUsCore i3, i5, i7, Celeron G, Pentium G, Xeon E3
Fastest CPUCore i7 3770k
RAM slots2 × DDR3
AGP-
PCI-E x16, x8, x4, x11, -, -, -
PCI-X / PCI / ISA-, -, -
IDE-
SATA4 × (300)
USB / Firewire8 × (2.0)
LAN1 × 1000 Mb/s
FormatITX (170x170)
Release date2012

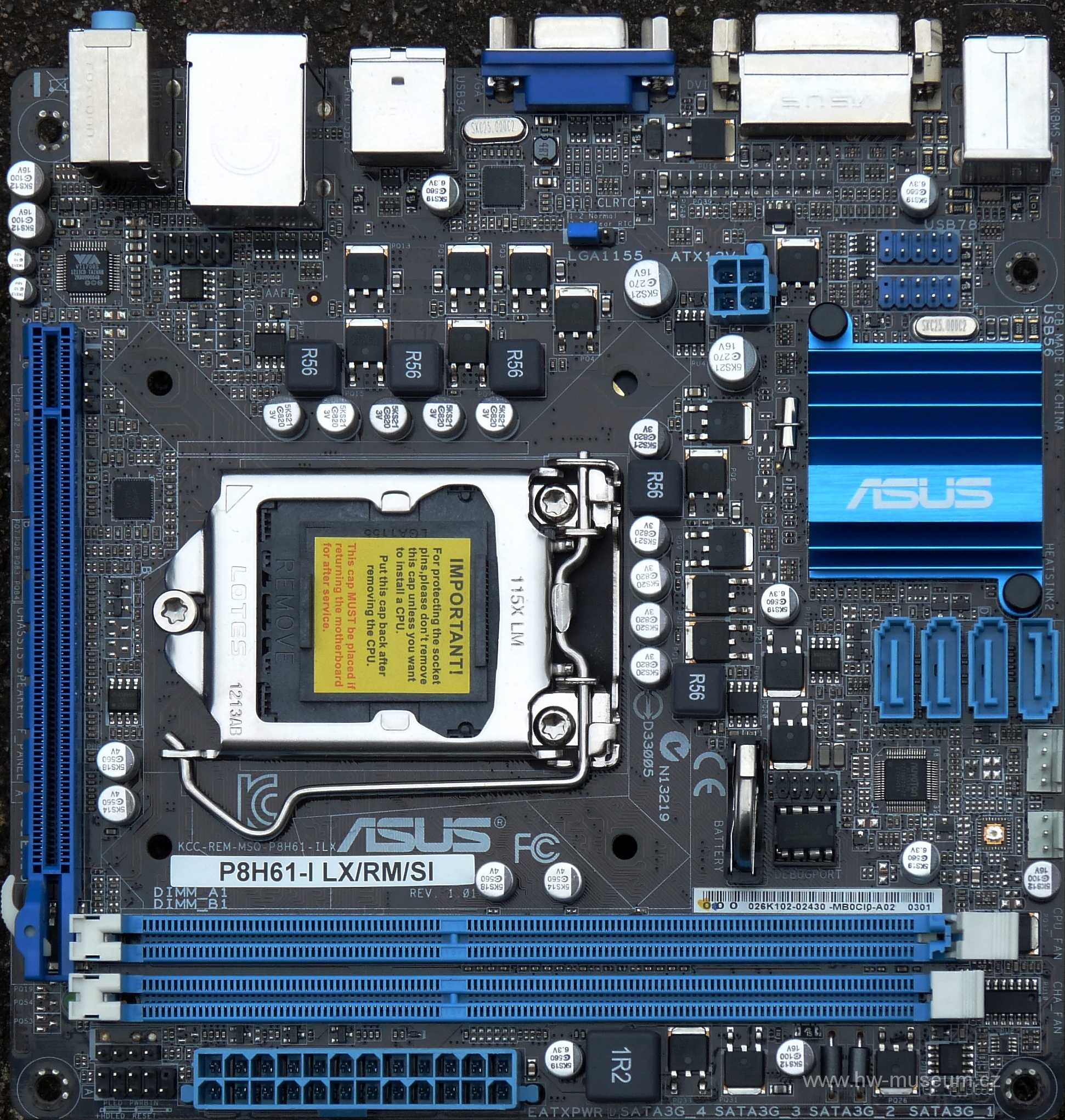

Asus P8H61-I LX (front side)

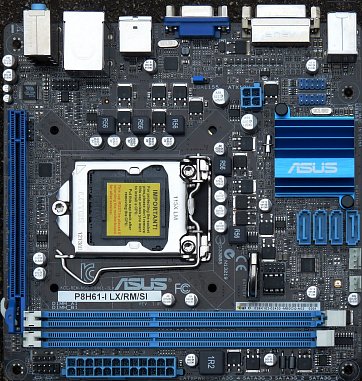

Asus P8H61-I LX (front side)

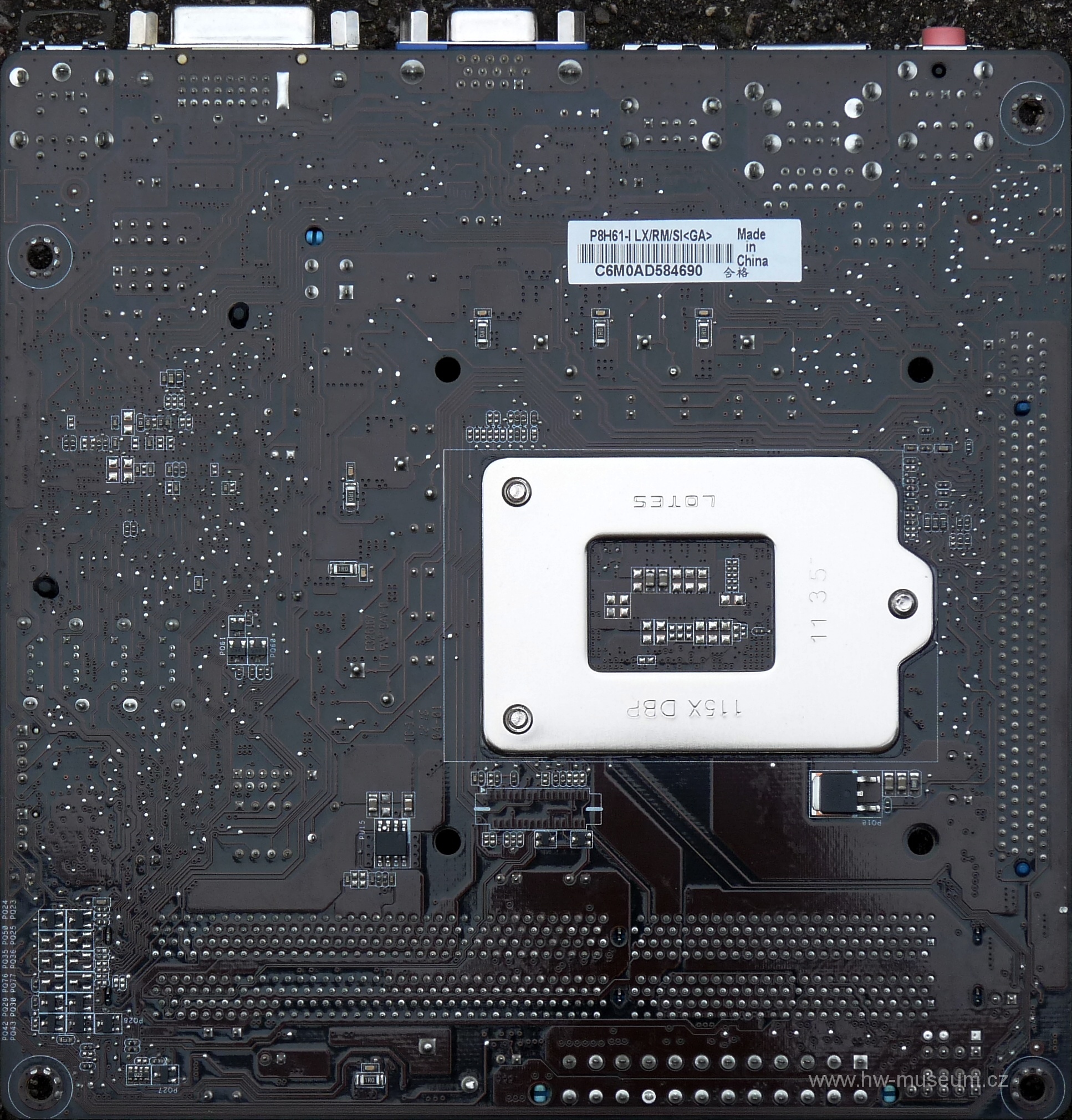

Asus P8H61-I LX (back side)

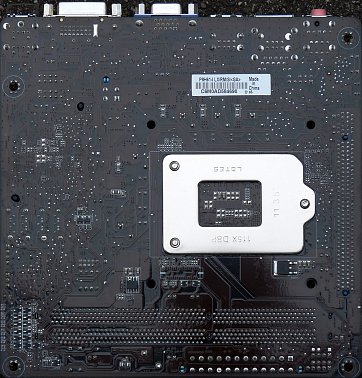

Asus P8H61-I LX (back side)
