Gigabyte GA-P67A-UD4-B3

Published: (last update )

Chipset
ModelIntel P67
NorthbridgeSB-DT IMC
SouthbridgeP67
Bus typeDMI 2.0, 100 MHz, - bit
Bus bandwith0 MB/s
RAM type (1)DDR3 1866 MHz, 128 bit
RAM type (2)-
RAM bandwidth29856 MB/s
Maximum RAM32768 MB
Reg. / ECC supportno / no
NB PCI-E lanes 16 (2.0)
AGP-
PCI support2.3
Integrated VGA-
The board
Socketsocket 1155
Supported CPUsCore i3, i5, i7, Celeron G, Pentium G, Xeon E3
Fastest CPUCore i7 3770k
RAM slots4 × DDR3
AGP-
PCI-E x16, x8, x4, x12, -, -, 3
PCI-X / PCI / ISA-, 2, -
IDE-
SATA4 × (300) + 2 × (600)
USB / Firewire14 × (2.0), 4 × (3.0)
LAN1 × 1000 Mb/s
FormatATX (305x244)
Release date2011
Gigabyte GA-P67A-UD4-B3 (front side)

Gigabyte GA-P67A-UD4-B3 (front side)

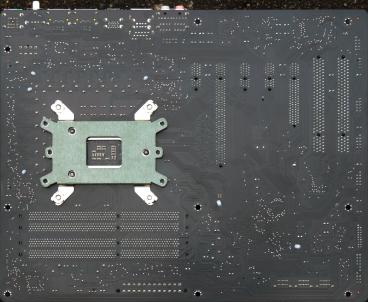

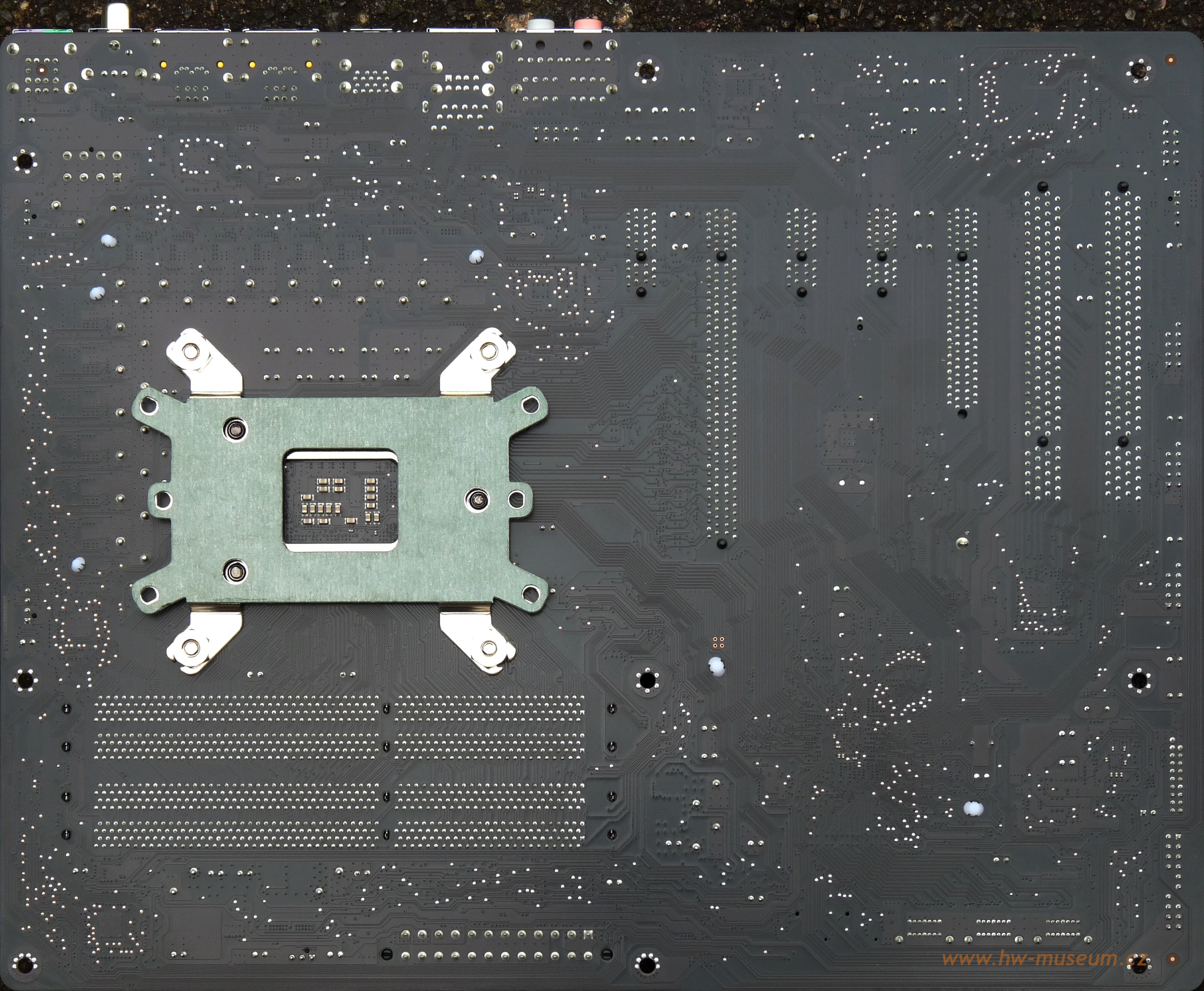

Gigabyte GA-P67A-UD4-B3 (back side)

Gigabyte GA-P67A-UD4-B3 (back side)
